1UZ to 22R-E/ 3VZ / 5VZ / 3RZ Conversion High Pressure Fuel Hose

This braided stainless steel fuel hose is engineered for converting from a [22R-E / 3VZ / 5VZ / 3RZ]  to a 1UZ engine setup. The hose connects the stock Toyota fuel line on the passenger-side frame rail to the 1UZ fuel inlet, located on the driver's side of the engine. The hose threads directly into both factory fittings, accommodating Toyota’s everyday use of a union with a male 14M nut on the fuel line. Compatible with inline fuel filters found on V6 models, this hose ensures proper fuel delivery. For vehicles originally equipped with a 4-cylinder engine, a version with a built-in Fuel Lab 10-micron rebuildable filter is recommended.

22R/22RE Note:

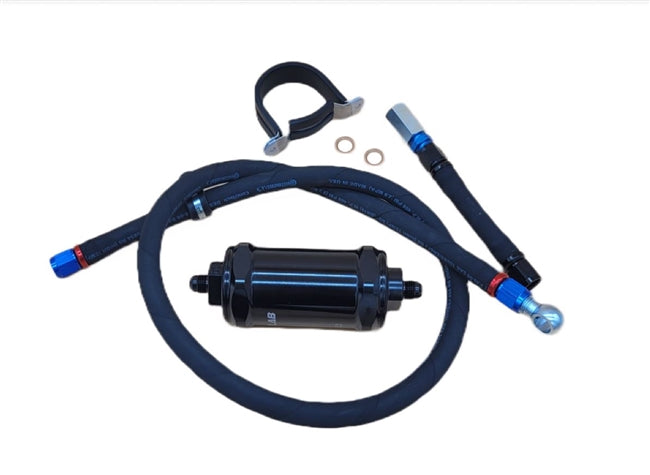

This kit includes a rebuildable fuel filter, fuel line, nut, and union connector, allowing easy maintenance and extending service life.

3VZ Note:

The original hard fuel line on 3VZ vehicles can be either male or female, or a Male with a Female-Female union. It’s important to verify the fitting type on your existing hard line. If your setup includes a Female end or a Male end with a union, the standard hose will fit correctly. For those with only a Male end, a Female-Female union is required, which is now included with every hose purchase.
