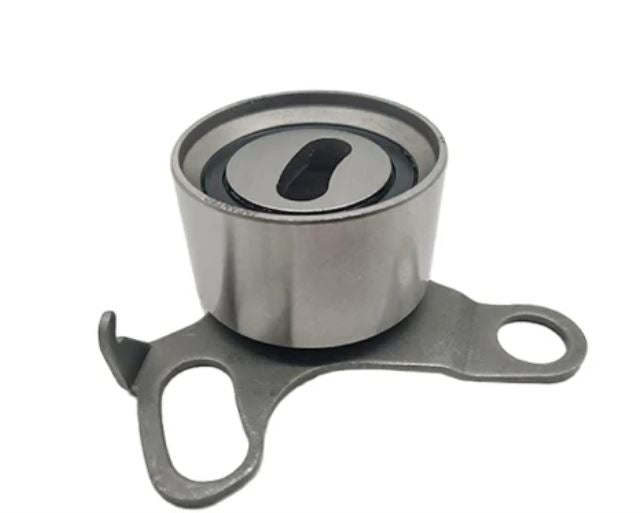

Toyota Diesel OEM 2L 2L-T 2L-TE 3L 5L Timing Belt Tensioner Pulley 13505-54021

Product Overview

Genuine OEM Toyota Timing Belt Tensioner Idler Pulley compatible with 1982-2004 Toyota vehicles equipped with 2L, 2L-T, 2L-TE, 3L, and 5L diesel engines. This critical timing system component maintains proper belt tension and ensures precise valve timing for reliable diesel engine operation. This OEM part is essential for timing belt service, delivering Toyota-quality performance with long-lasting durability for the legendary L-series diesel engines.

OEM Part Number(s):

• 13505-54021 (current)
• 13505-54020 (superseded)
• 13505-54010 (previous)
• 13505-54030 (related application)



Key Features & Benefits

• Perfect Fit: Engineered specifically for Toyota 2L, 2L-T, 2L-TE, 3L, and 5L diesel engine timing systems
• Quality Assurance: Precision-machined bearing assembly with heat-treated steel construction for maximum durability
• Performance: Maintains optimal timing belt tension to prevent valve timing drift and ensure smooth diesel operation
• Essential Maintenance: Critical component for timing belt replacement to prevent catastrophic engine damage

Technical Specifications

Part Type: Timing Belt Tensioner Idler Pulley Assembly (No.1)
Material: Heat-treated steel with precision bearing
Engine Compatibility: 2L, 2L-T, 2L-TE, 2L-T II, 3L, 5L diesel engines
Outer Diameter: 60mm
Width: 32.5mm
Build Height: 42.3mm

Fitment

Year Range	Toyota Model	Engine Options
1982-2004	Hilux / Pickup	2L, 2L-T, 2L-TE, 3L, 5L diesel
1989-1995	4Runner / Hilux Surf	2L-T, 3L diesel
1984-2004	Hiace / Grand Hiace	2L, 2L-T, 2L-TE, 3L, 5L diesel
1984-1996	Crown	2L, 2L-T, 2L-TE, 2L-THE diesel
1984-1999	Chaser / Cresta	2L, 2L-T, 2L-TE diesel
1984-1992	Cressida	2L, 2L-T diesel
1986-2001	Dyna / ToyoAce	2L, 2L-T, 2L-TE, 3L, 5L diesel
1996-2002	Land Cruiser Prado (select models)	3L, 5L diesel
1998-Present	Hilux / Fortuner (select markets)	5L diesel

Important: Verify engine code before ordering. This tensioner idler is specifically designed for L-series diesel engines. Not compatible with gasoline engines. Always replace the timing belt, water pump, and all idler pulleys simultaneously for optimal reliability.

Installation & Maintenance

Installation Difficulty: Intermediate
Tools Required: Socket set, torque wrench, timing belt alignment tools, harmonic balancer puller, camshaft locking tools
Professional Installation: Recommended - improper timing belt installation can cause catastrophic engine damage

Maintenance Tips:

• Replace timing belt tensioner idler every 60,000-80,000 km along with timing belt service
• Inspect the idler pulley for bearing noise, wobble, or roughness during timing belt service
• Replace all timing components simultaneously, including the belt, water pump, and tensioners
• Use genuine Toyota timing belt and components to ensure proper fit and tension
• Follow exact torque specifications and timing marks to prevent valve-to-piston contact



Frequently Asked Questions

Q: What's included in the package?
A: This listing includes one (1) timing belt tensioner idler pulley assembly. Mounting bolt and timing belt are sold separately. Complete timing belt kits are available, including all necessary components.

Q: How difficult is installation?
A: Installation requires intermediate skills and specialized tools. The timing belt must be removed, and precise alignment of timing marks is critical. Professional installation is strongly recommended to prevent engine damage from improper timing.

Q: Can I reuse the old tensioner idler when replacing the timing belt?
A: No. Toyota recommends replacing all timing belt components, including tensioners, idlers, and the water pump, during timing belt service. Failed idler bearings can cause timing belt failure and catastrophic engine damage.

Q: Is this compatible with both early and late L-series engines?
A: Yes, part number 13505-54021 is the current specification and supersedes earlier part numbers 13505-54020 and 13505-54010. This tensioner idler is compatible with all 2L, 2L-T, 2L-TE, 3L, and 5L diesel engines from 1982 to 2004.

Related Toyota Parts You May Need

• Timing Belt - Must be replaced with tensioner for complete service
• Water Pump - Replace during timing belt service to prevent future failures
• Timing Belt Tensioner Spring - Ensures proper belt tension throughout service life
• Crankshaft Seal - Front timing cover seal prevents oil leaks after timing service
• Camshaft Seal - Replace during timing belt service for comprehensive maintenance



Common Symptoms of Timing Belt Tensioner Idler Failure

• Squealing or grinding noise from the timing belt area, especially on cold starts
• Visible wobble or play in the idler pulley when inspecting the timing belt
• Timing belt showing signs of abnormal wear on one edge
• Rough running or misfiring due to valve timing drift from aworn idler
• Catastrophic timing belt failure resulting in bent valves and severe engine damage



Why Replace Your Timing Belt Tensioner Idler

Critical Engine Protection: The timing belt tensioner and idler are among the most essential components of the L-series diesel engine's timing system. These interference engines will suffer catastrophic damage if the timing belt fails or slips due to inadequate tension. The tensioner idler maintains precise belt tension throughout the belt's service life, ensuring accurate valve timing and preventing valve-to-piston contact.

Toyota's L-series diesel engines (2L, 2L-T, 2L-TE, 3L, 5L) are renowned for their legendary reliability and durability in demanding commercial and off-road applications worldwide. However, this reputation depends entirely on proper maintenance, particularly timing belt service. The tensioner idler bearing is subject to extreme loads and high temperatures in the engine bay, and bearing failure can occur without warning.

Professional mechanics and Toyota specialists universally recommend replacing all timing belt components simultaneously - including the belt, water pump, tensioners, and idler pulleys - during scheduled timing belt service intervals (typically 60,000-80,000 km). This comprehensive approach prevents future failures and ensures maximum reliability from these workhorse diesel engines.

Don't compromise on this critical timing system component. Failed idler bearings are a leading cause of timing belt failure in L-series diesel engines. Invest in genuine Toyota OEM quality and protect your engine investment with proper timing system maintenance.
