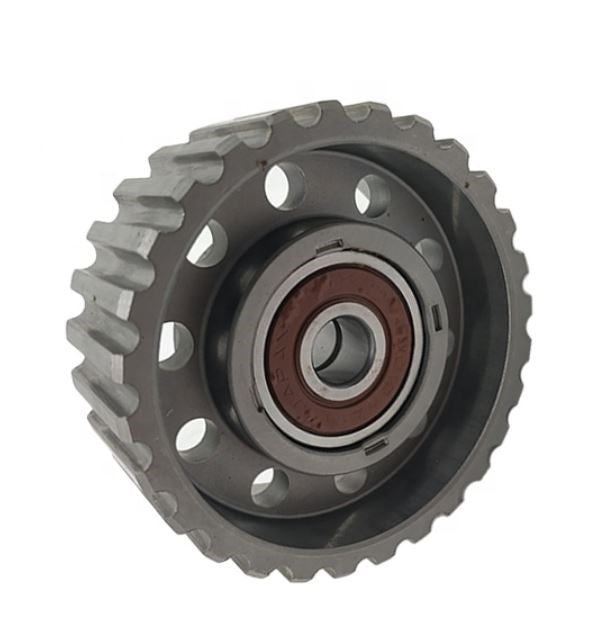

Toyota Diesel 2L 2L-T 3L 5L Hilux Hiace Land Cruiser Prado Diesel Idler Pulley 13503-54030

Product Overview

Aftermarket Koyo Toyota Timing Belt Idler Pulley compatible with 1988-2005 Toyota Hiace, Hilux, 4Runner, Land Cruiser Prado, and Dyna models equipped with 2L, 2L-T, 3L, and 5L diesel engines. This critical timing system component ensures proper timing belt tension and alignment, delivering reliable engine performance and preventing premature timing belt failure. This OEM-quality replacement pulley provides Toyota-grade durability and precision engineering for long-lasting service life.

OEM Part Number(s):

• 13503-54030 (primary)
• 13503-54040 (superseded)
• GT80720 (GMB aftermarket reference)
• 45-02-203 (ASHIKA cross reference)



Key Features & Benefits

• Perfect Fit: Engineered specifically for Toyota 2L, 2L-T, 3L, and 5L diesel engine timing systems
• Quality Assurance: High-grade steel construction with precision-sealed bearing for smooth, quiet operation
• Performance: Maintains proper timing belt alignment and tension, preventing catastrophic engine timing failure
• Easy Installation: Direct OEM replacement with straightforward installation during timing belt service



Technical Specifications

Part Type: Timing Belt Idler Pulley Assembly (No. 2)
Material: High-grade steel pulley with sealed bearing
Engine Compatibility: 2L (2.4L), 2L-T (2.4L Turbo), 3L (2.8L), 5L (3.0L) diesel engines
Outer Diameter: 50mm
Inner Diameter: 12mm
Width: 27mm

Fitment

Year	Model	Engine
1988-2005	Toyota Hiace (LH80, LH85, LH90, LH95, LH100-LH200 Series)	2L 2.4L, 2L-T 2.4L Turbo, 3L 2.8L, 5L 3.0L Diesel
1988-2005	Toyota Hilux / Pickup	2L 2.4L, 2L-T 2.4L Turbo, 3L 2.8L, 5L 3.0L Diesel
1988-1995	Toyota 4Runner / Hilux Surf (LN130)	3L 2.8L Diesel
1996-2002	Toyota Land Cruiser Prado (LJ90, LJ95)	3L 2.8L Diesel
1988-2005	Toyota Dyna / ToyoAce (LY Series)	2L-T 2.4L Turbo, 3L 2.8L, 5L 3.0L Diesel
1988-1995	Toyota Crown, Chaser, Mark II	2L 2.4L, 2L-T 2.4L Turbo, 3L 2.8L Diesel
1993-2004	Toyota Regius / Granvia	3L 2.8L, 5L 3.0L Diesel

Important: Verify engine code before purchase. This idler pulley is specifically designed for 2L, 2L-T, 3L, and 5L diesel engines. Always replace timing belt idler pulleys during timing belt service to prevent premature failure.

Installation & Maintenance

Installation Difficulty: Intermediate
Tools Required: Socket set, torque wrench, timing belt tools, crank pulley holding tool, alignment pins
Professional Installation: Recommended - improper timing belt installation can cause catastrophic engine damage

Maintenance Tips:

• Always replace idler pulleys when replacing the timing belt (every 100,000 km or 60,000 miles)
• Inspect bearing for smooth rotation and absence of play or noise before installation
• Replace the timing belt tensioner and water pump simultaneously for comprehensive service
• Use Toyota factory torque specifications for all timing system fasteners



Frequently Asked Questions

Q: What's included in the package?
A: Package includes one complete idler pulley assembly with an integrated sealed bearing. Mounting bolt not included - reuse existing hardware with thread locker compound.

Q: How difficult is installation?
A: Installation requires intermediate to advanced mechanical skills as it involves timing belt removal and reinstallation. Incorrect timing belt installation can cause severe engine damage. Professional installation is strongly recommended unless you have experience with diesel engine timing systems.

Q: How often should this idler pulley be replaced?
A: Replace idler pulleys every time you replace the timing belt, typically at 100,000 km (60,000 miles) intervals. Even if the pulley appears functional, the internal bearing may have wear that could cause premature timing belt failure.

Related Toyota Parts You May Need

• Timing Belt - Essential replacement during idler pulley service
• Timing Belt Tensioner - A Critical component that should be replaced with the timing belt and idler
• Water Pump - Common replacement during timing belt service due to access requirements
• Front Crankshaft Seal - Recommended replacement to prevent oil leaks after timing service



Common Symptoms of Timing Belt Idler Pulley Failure

• Grinding, squealing, or rattling noise from the timing belt area
• Visible wobble or lateral movement of the idler pulley
• Excessive timing belt wear on one side indicates misalignment
• Rough bearing rotation or a seized pulley is causing timing belt tension issues
• Timing belt tracking off-center or riding against pulley flanges



Why Replace Your Timing Belt Idler Pulley

Critical Timing System Component: The timing belt idler pulley plays a vital role in maintaining proper timing belt alignment and tension in Toyota's legendary 2L, 3L, and 5L diesel engines. These robust powerplants are known for their exceptional reliability and longevity when properly maintained, but neglecting the timing system can lead to catastrophic engine damage.

Unlike non-interference engines, Toyota diesel engines in the 2L/3L/5L family will suffer severe internal damage if timing belt failure occurs. The pistons will contact the valves, resulting in bent valves, damaged pistons, and potential damage to the cylinder head, requiring thousands of dollars in repairs. A failed idler pulley is one of the most common causes of premature timing belt failure.

The sealed bearing inside the idler pulley experiences continuous stress due to the timing belt tension and high-speed rotation. Over time, even OEM-quality bearings develop wear that may not be immediately apparent. Internal bearing degradation can cause the pulley to seize or wobble, leading to timing belt misalignment, accelerated wear, or complete belt failure

Professional mechanics and Toyota specialists universally recommend replacing all timing belt idler pulleys and tensioners whenever the timing belt is serviced. This preventative approach costs a fraction of potential engine damage and provides peace of mind for the next 100,000 kilometers of service.

Replace your timing belt idler pulley today and maintain the exceptional reliability of your Toyota diesel engine.
