100K Service Package (1988+) Toyota Diesel 2L 2L-T 2L-TE 3L 5L 5L-E Timing & Water Pump Maintenance

Product Overview

Comprehensive OEM maintenance package for Toyota 2L, 2L-T, 2L-TE, 3L, 5L, and 5L-E diesel engines at the critical 100,000 km (60,000 miles) or 5-year service interval. This complete service bundle includes all essential timing system components and cooling system parts required for professional-grade preventive maintenance. This factory-quality package ensures reliable operation and prevents catastrophic engine damage from worn timing components or cooling system failure.

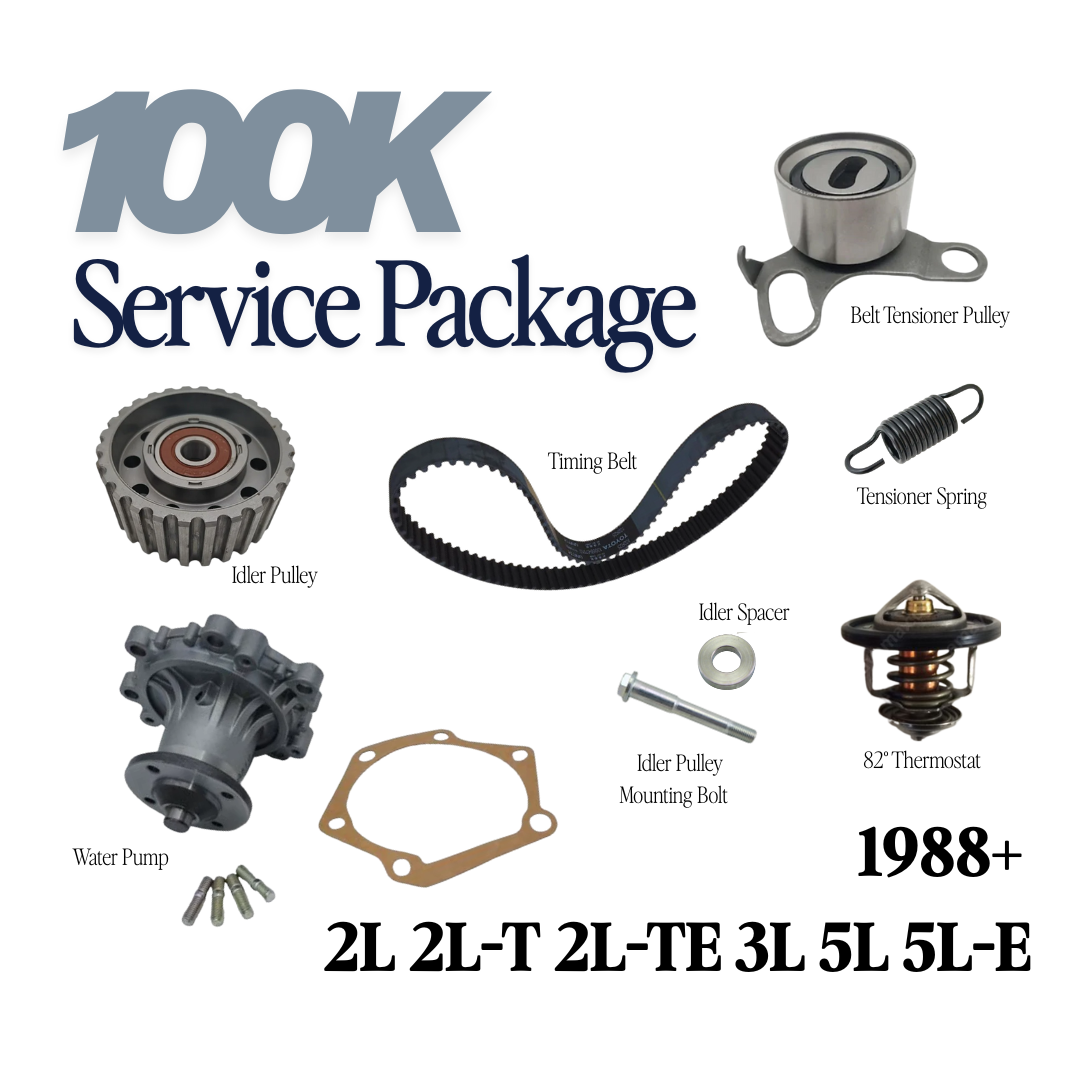

Package Includes:

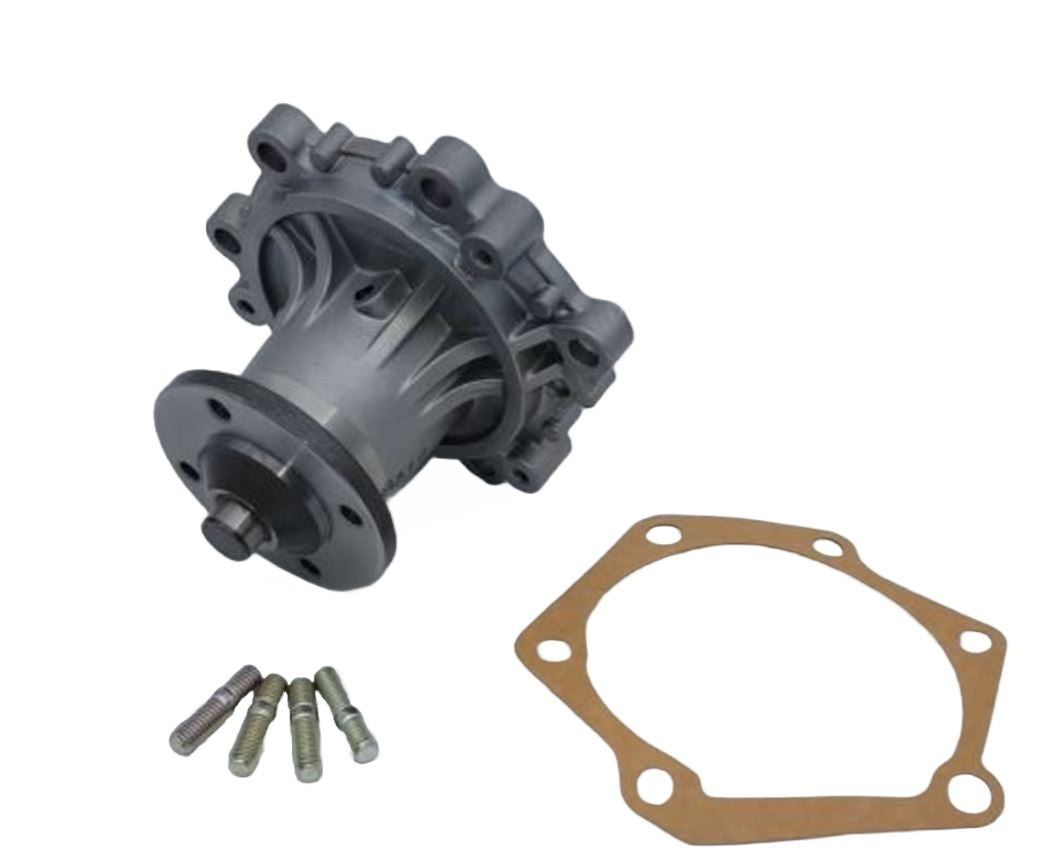

• Water Pump Assembly

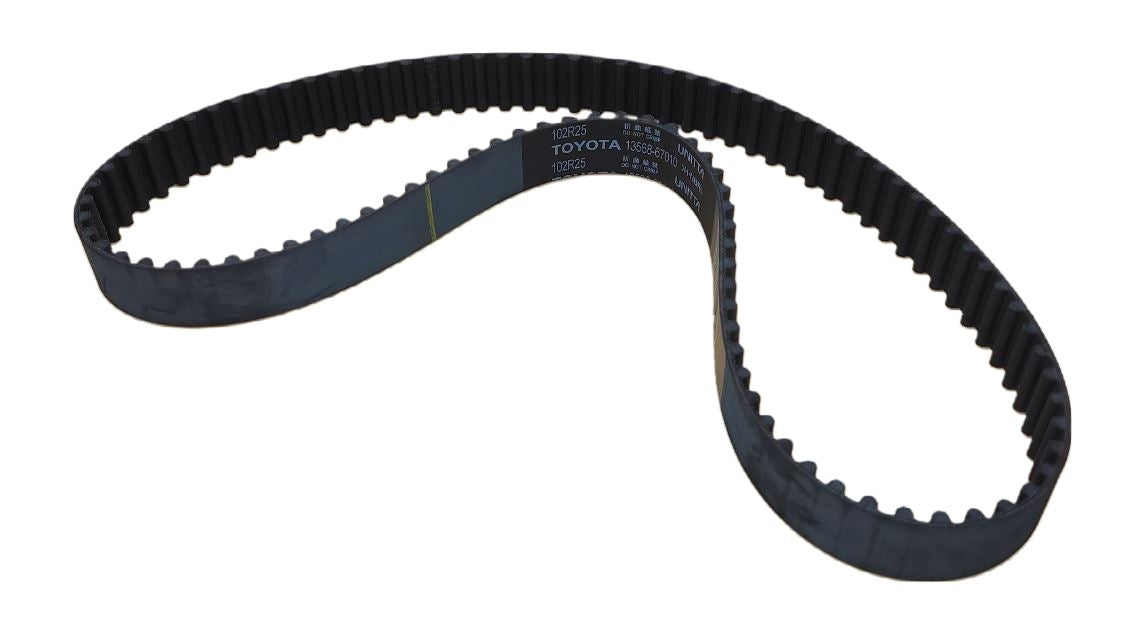

• Timing Belt

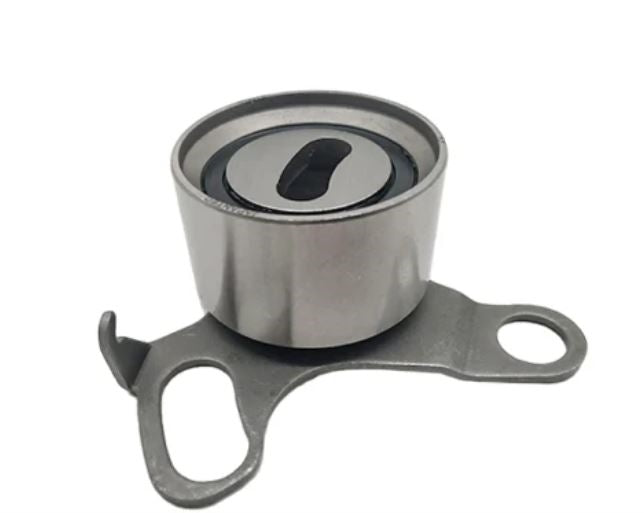

• Timing Belt Tensioner Pulley

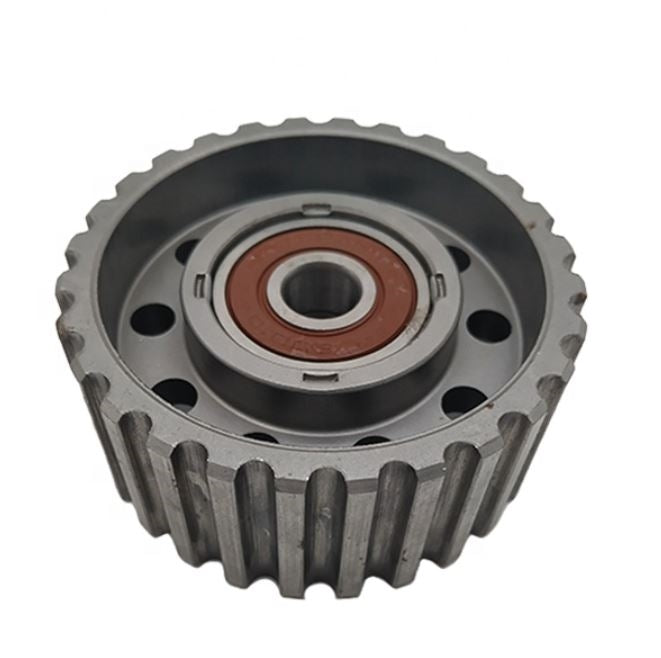

• Timing Belt Idler Pulley
• Idler Pulley Bolt

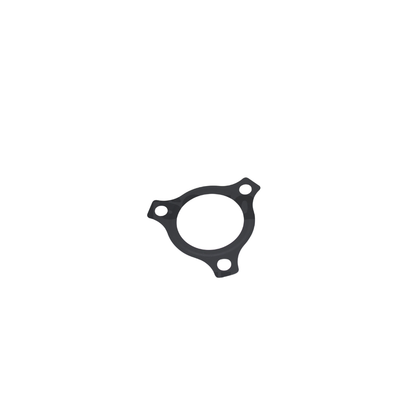

• Idler Bolt Spacer

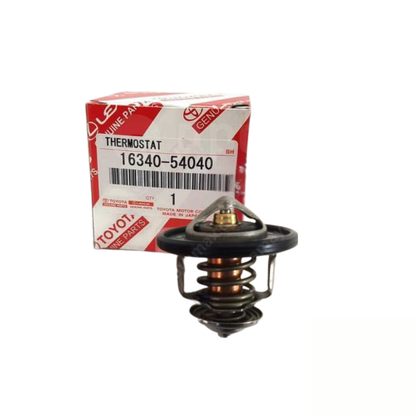

• Thermostat (82°C/180°F)
• Tensioner Spring



Key Features & Benefits

• Complete Service Solution: All critical timing and cooling components in one convenient package - saves time sourcing individual parts
• OEM Quality Assurance: Genuine Toyota and OEM-equivalent parts ensure proper fit and factory specifications
• Prevent Catastrophic Failure: Interference engine design means timing belt failure causes severe valve and piston damage - this service prevents costly engine rebuilds
• Professional Value: Bundle pricing saves significantly compared to purchasing components individually at dealership rates
• Optimized Temperature Control: 82°C thermostat provides better cooling margin for these engines prone to running hot under load



Technical Specifications

Part Type: Complete 100K Service Maintenance Package
Engine Compatibility: 2L, 2L-T, 2L-TE, 2L-THE, 3L, 5L, 5L-E diesel engines (late model 1988+ with bucket/shim valvetrain)
Timing Belt: 129 teeth x 31mm width
Water Pump Material: Cast aluminum alloy construction with a new gasket and mounting studs
Thermostat Opening Temperature: 82°C (180°F) - optimized for better cooling performance
Service Interval: 100,000 km (60,000 miles) or 5 years, whichever comes first
Cross Reference: Supersedes various earlier part numbers for late-model L-series diesel applications

Fitment

Year Range	Toyota Model	Engine Options
1988-1997	Hilux / Pickup Truck	2L, 2L-T, 2L-TE, 3L, 5L diesel (late models)
1988-2006	Hiace / Regiusace	2L-T, 2L-TE, 3L, 5L, 5L-E diesel
1989-1995	4Runner / Hilux Surf	2L-TE, 3L diesel (LN130, VZN130)
1990-2002	Land Cruiser Prado	2L-TE, 3L diesel (LJ71, LJ78, LJ90, LJ95)
1987-2001	Dyna / ToyoAce	2L, 3L, 5L diesel (various chassis)
1988-1999	Chaser / Cresta / Crown	2L-TE diesel (select models)
1995-2005	Fortuner	3L, 5L diesel (select markets)



Important Compatibility Notes:

• This package is designed for LATE MODEL L-series engines (1988+ production) with bucket-and-shim valvetrain adjustment
• Late model engines feature stamped steel valve covers (vs. cast aluminum on early engines)
• Verify your engine code and production date before ordering - early 2L engines require different components
• All components are compatible across 2L/3L/5L family for late-model applications



Installation & Maintenance

Installation Difficulty: Advanced
Tools Required: Complete mechanic's tool set, torque wrench, timing marks reference, pulley holding tools, coolant system pressure tester
Professional Installation: Highly Recommended - timing belt service requires precise procedures and torque specifications

Critical Installation Notes:

• CRITICAL: Replace idler pulley bolt - this special stepped bolt can break and cause timing belt failure
• Set the engine to TDC (Top Dead Center) on #1 cylinder compression stroke before removing the old timing belt
• Install a new water pump with the proper torque sequence to prevent gasket leaks and warping
• Verify the timing marks alignment on the crankshaft and camshaft before installing the new timing belt
• Flush the cooling system completely and refill with the proper 50/50 coolant mixture
• Adjust timing belt tension per factory specifications - improper tension causes premature wear
• Rotate engine two complete revolutions by hand and recheck timing marks before final assembly



Post-Installation Maintenance:

• Inspect timing belt tension after first 1,000 miles - readjust if necessary
• Monitor coolant level and check for leaks during the first week of operation
• Next service interval: 100,000 km (60,000 miles) or 5 years from installation date
• Maintain proper coolant concentration and quality - these engines are sensitive to overheating



Frequently Asked Questions

Q: Why is this called a "100K Service Package"?
A: Toyota recommends timing belt, water pump, and related component replacement at 100,000 km (approximately 60,000 miles) or 5 years, whichever comes first. This package includes all the critical components required for this major service interval, saving time and ensuring nothing is overlooked.

Q: What happens if I don't replace these components at the recommended interval?
A: The 2L/3L/5L diesel engines are interference engines - if the timing belt breaks, the valves will collide with the pistons, causing catastrophic engine damage requiring a complete rebuild costing thousands of dollars. Water pump failure can cause overheating and cylinder head cracking, both of which are equally expensive to repair.

Q: Can I reuse any of the old components to save money?
A: No - all timing components should be replaced as a complete system. Old pulleys have worn bearings, springs lose tension, and water pumps develop internal wear. Reusing old components significantly increases the risk of premature failure and potentially catastrophic engine damage.

Q: Why does this package include an 82°C thermostat instead of the standard 88°C?
A: The L-series diesel engines, particularly 2L-TE and 3L, are known to run hot under load and heavy conditions. The 82°C (180°F) thermostat provides better cooling system margin and helps prevent the cylinder head cracking issues these engines can experience due to overheating.

Q: Do I need any additional parts not included in this package?
A: Yes, you'll need: (1) Coolant (approximately 10 liters of proper 50/50 mixture) & (4) Fresh engine oil for post-service oil change. Consider also inspecting the valve cover gasket, radiator hoses, and drive belts during this service.

Related Toyota Parts You May Need

• Radiator Hoses (Upper/Lower): Inspect during service and replace if showing age, cracks, or soft spots
• Drive Belt Set (Alternator/Power Steering): Consider replacement if nearing 100K miles - convenient access with timing covers removed
• Crankshaft Pulley (13408-54070/13408-54090): Inspect harmonic balancer for separation or damage - critical engine component



Common Symptoms Requiring 100K Service

• Mileage or age approaching 100,000 km (60K miles) or 5 years since last service
• Visible cracks, fraying, or glazing on the timing belt surface during inspection
• Squealing or grinding noise from the timing belt area, indicating bearing failure in the pulleys
• Coolant leaks from the water pump weep hole or around the water pump mounting surface
• The engine is running hotter than normal or overheating under load conditions
• Coolant loss without visible external leaks - may indicate water pump seal failure
• Rough bearing noise from idler or tensioner pulleys during cold starts



Why Invest in Complete 100K Service Package

Prevent Catastrophic Engine Damage: The Toyota 2L, 3L, and 5L diesel engines are interference designs, meaning the valves and pistons occupy the same space at different times in the combustion cycle. When the timing belt maintains proper timing, these components never come into contact. However, if the timing belt breaks or jumps teeth, the valves will collide with the pistons at engine speed, causing bent valves, damaged pistons, and potentially cracked cylinder heads.

Legendary Toyota Diesel Reliability: The L-series diesel engines have earned exceptional reputations for longevity and reliability in demanding applications worldwide - from the Australian outback to African deserts to South American mountains. However, this legendary reliability depends entirely on proper maintenance at critical intervals. The 100,000 km timing belt service is the single most important maintenance procedure for preventing catastrophic failures.

Known Vulnerability Points: While these engines are remarkably durable, they have specific known issues that this service addresses. The 2L-TE and 3L engines, in particular, are known to run hot under heavy loads, making the cooling system's service critical. The toothed idler pulley is secured by a special stepped bolt that can occasionally break. If this occurs, the pulley comes loose, and the timing belt fails immediately. Water pump reliability typically degrades after 140,000 km, with some failing earlier. This complete package addresses all these known failure points simultaneously.

Bundle Value and Convenience: Purchasing these components as a complete package saves a significant amount of money compared to sourcing parts individually or paying dealership prices. More importantly, it ensures you have all the correct components on hand before starting the service. Nothing is worse than having your vehicle disassembled and discovering you're missing a critical $15 component, causing days of downtime.

Peace of Mind for High-Value Vehicles: Many Toyota vehicles with L-series diesel engines possess significant value, whether as reliable work trucks, overlanding platforms, or cherished classic 4x4s. The relatively modest investment in this complete service package protects an investment worth many times more. This package provides the quality OEM parts needed to do the job right.

Don't gamble with timing belt failure. Invest in this complete OEM service package and maintain the legendary Toyota diesel reliability these engines are famous for. Every component in this package has been carefully selected to meet or exceed factory specifications. Professional installation with genuine parts ensures maximum service life and protects your investment in one of Toyota's most durable diesel platforms.

Order your Complete 100K Service Package today and maintain the reliability that made Toyota diesels legendary worldwide.
