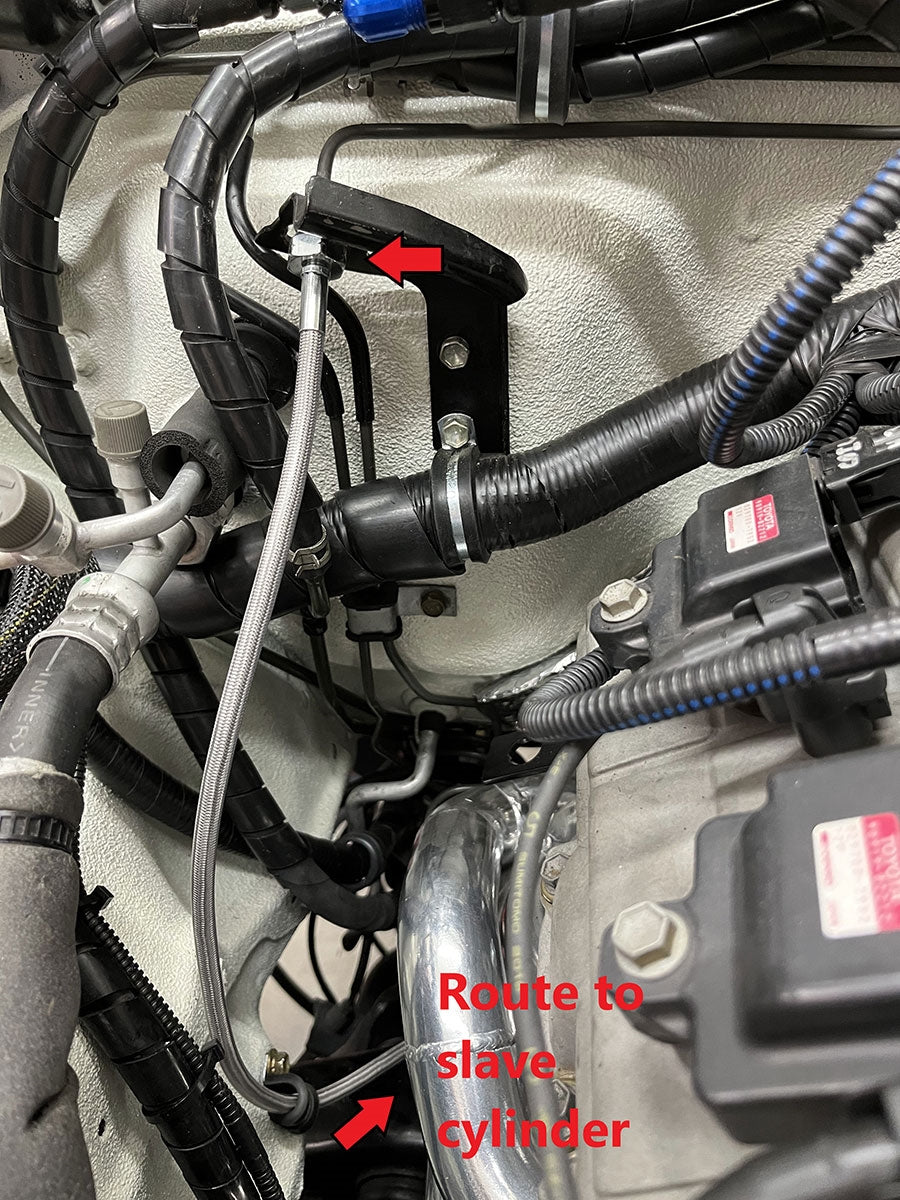

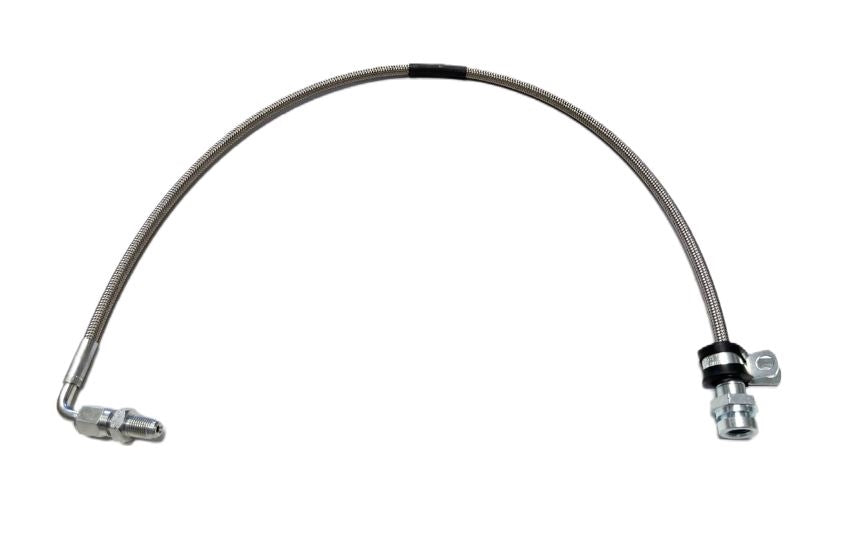

This clutch hose is designed for 3VZ 3.0L engine applications with the clutch slave cylinder located on the right-hand side of the bell housing. It connects directly from the clutch hard line on the right-hand upper firewall to the slave cylinder on the right-hand side of the bell housing. This is necessary for applications using the 5VZ Performance Header Set, but will also work well with all other exhaust options. This hose eliminates the need for the clutch hose bracket on the engine head, the short OEM clutch hose, and the lower clutch hard-line to the slave cylinder, resulting in a straightforward setup for the clutch hydraulic system in the 3.4L 5VZ conversion.
