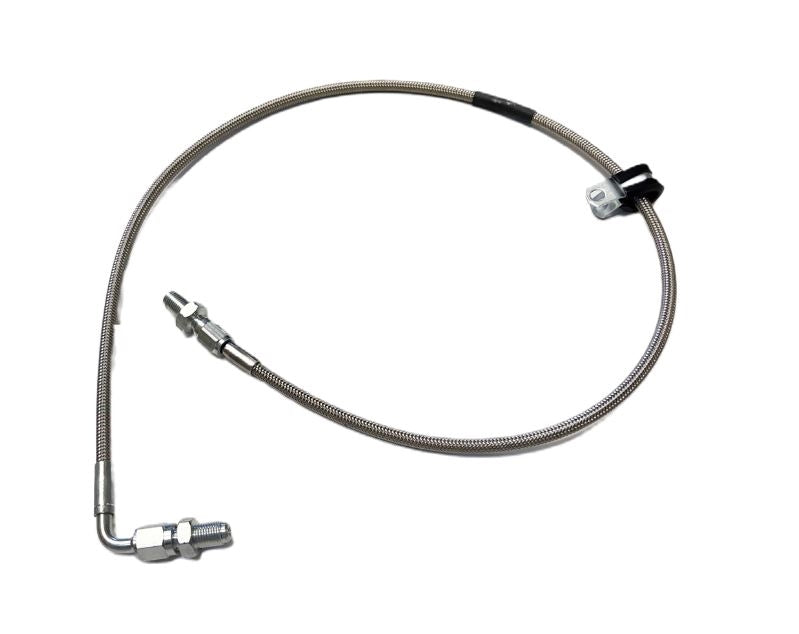

5VZ 3RZ Upgraded Clutch Hose

Product Overview

Professional-grade clutch hydraulic hose designed specifically for 3.4L 5VZ-FE and 2.7L 3RZ/2RZ engine conversions into 1979-1995 Toyota Pickups and 1984-1995 4Runners. This conversion-specific hose delivers reliable clutch hydraulics with simplified routing and eliminates complex OEM bracket systems. Available in driver side (left-hand) and passenger side (right-hand) configurations to accommodate different transmission bell housing slave cylinder locations and exhaust header configurations.

Key Features & Benefits

• Conversion-Specific Design: Engineered specifically for 5VZ-FE and 3RZ/2RZ engine swaps with proper length and routing for each application
• Simplified Installation: Eliminates OEM clutch hose bracket, short factory hose, and lower hard-line components for cleaner setup
• Dual Configuration Options: Available in driver side (LH slave cylinder) and passenger side (RH slave cylinder) configurations
• Performance Header Compatible: Passenger side version designed to work with 5VZ performance header systems
• Quality Construction: High-pressure rated hydraulic line with proper fittings for master cylinder and slave cylinder connections

Technical Specifications

Part Type: Clutch Hydraulic Hose Assembly
Engine Compatibility: 5VZ-FE 3.4L V6, 3RZ-FE 2.7L I4, 2RZ-FE 2.4L I4
Material: High-pressure rated hydraulic line with steel braided reinforcement
Fitting Type: Direct master cylinder and slave cylinder connections
Pressure Rating: Exceeds OEM hydraulic system specifications
Configuration: Driver side (LH) or Passenger side (RH) mounting options

Fitment

Year Range	Toyota Model	Engine Conversion	Configuration
1979-1995	Toyota Pickup (4x4)	5VZ-FE 3.4L V6 Swap	Driver Side (LH slave) or Passenger Side (RH slave with 3VZ base)
1984-1995	Toyota 4Runner	5VZ-FE 3.4L V6 Swap	Driver Side (LH slave) or Passenger Side (RH slave with 3VZ base)

Important: Select the correct configuration based on your slave cylinder location and original engine. Driver side (LH) configuration works with left-hand mounted slave cylinders on transmission bell housings. Passenger side (RH) configuration is designed specifically for 3VZ-to-5VZ conversions with right-hand slave cylinder mounting and is ideal for performance header installations.

Installation & Maintenance

Installation Difficulty: Intermediate
Tools Required: Flare nut wrenches, line wrenches, brake fluid, clutch bleeding kit
Professional Installation: Recommended for proper hydraulic system bleeding and leak-free operation

Maintenance Tips:

• Bleed clutch hydraulic system thoroughly after installation using DOT 3 or DOT 4 brake fluid
• Inspect hose routing to ensure no contact with exhaust components or sharp edges
• Check for leaks at master cylinder and slave cylinder connection points after installation
• Secure hose with proper support clips to prevent abrasion during operation



Frequently Asked Questions

Q: Which configuration do I need for my engine swap?
A: Choose driver side (LH) for 5VZ, 3RZ, or 2RZ swaps using left-hand mounted slave cylinders on the bell housing. Choose passenger side (RH) for 3VZ-to-5VZ conversions with right-hand slave cylinder mounting, especially when using performance headers.

Q: Does this eliminate the OEM clutch hose bracket system?
A: Yes, this upgrade hose eliminates the need for the clutch hose bracket on the engine head, the short OEM clutch hose, and the lower clutch hard-line to the slave cylinder, creating a much simpler and cleaner installation.

Q: Will this work with performance header systems?
A: The passenger side (RH) configuration is specifically designed to work with 5VZ performance header sets and provides excellent clearance. It will also work well with all other exhaust options.



Common Symptoms of Clutch Hydraulic Problems

• Soft or spongy clutch pedal feel indicating air in hydraulic system
• Difficulty shifting gears or grinding during gear changes
• Clutch pedal that stays on floor or fails to return properly
• Visible fluid leaks at master cylinder or slave cylinder connections
• Clutch engagement point that changes or becomes inconsistent

Why Choose This Swap-Specific Clutch Hose

Engineered for Toyota Engine Conversions: Generic or adapted clutch hoses create unnecessary complexity in engine swap projects. This conversion-specific solution addresses the unique challenges of installing modern Toyota engines into classic 1979-1995 chassis, where OEM components simply don't accommodate the different engine and transmission configurations.

The driver side configuration provides the direct solution for 5VZ, 3RZ, and 2RZ swaps using left-hand slave cylinder bell housings, eliminating the need to adapt multiple OEM components. The passenger side configuration solves the specific challenge of 3VZ-to-5VZ conversions where the slave cylinder is mounted on the right side of the bell housing, particularly when using performance exhaust headers that occupy the space where traditional clutch lines would route.

By eliminating the clutch hose bracket system, short factory hose sections, and lower hard lines, this upgrade creates a clean, professional installation that reduces potential leak points and simplifies the entire clutch hydraulic system. The high-pressure rated construction ensures reliable operation under demanding conditions, while the proper fitting connections provide leak-free performance at both the master cylinder and slave cylinder.

For serious engine conversion projects, this swap-specific clutch hose represents the professional solution that saves installation time while delivering superior reliability. Whether you're building a rock crawler with a bulletproof 5VZ or upgrading to a fuel-efficient 3RZ, this purpose-built hydraulic line provides the foundation for precise clutch control.

Complete your Toyota engine conversion with confidence using this professional-grade clutch hydraulic solution designed specifically for your swap configuration.
