5VZ 3.4L Swap Complete Cold Air Intake Package

Product Overview

The complete aftermarket cold air intake package specifically for 3.4L 5VZ-FE engine swaps into Toyota trucks and 4Runners. This comprehensive intake solution delivers improved airflow, enhanced throttle response, and reliable performance for your 3.4L conversion project. This professional-grade system offers easy installation with clean routing and optimal air filtration, ensuring maximum engine performance.

Key Features & Benefits

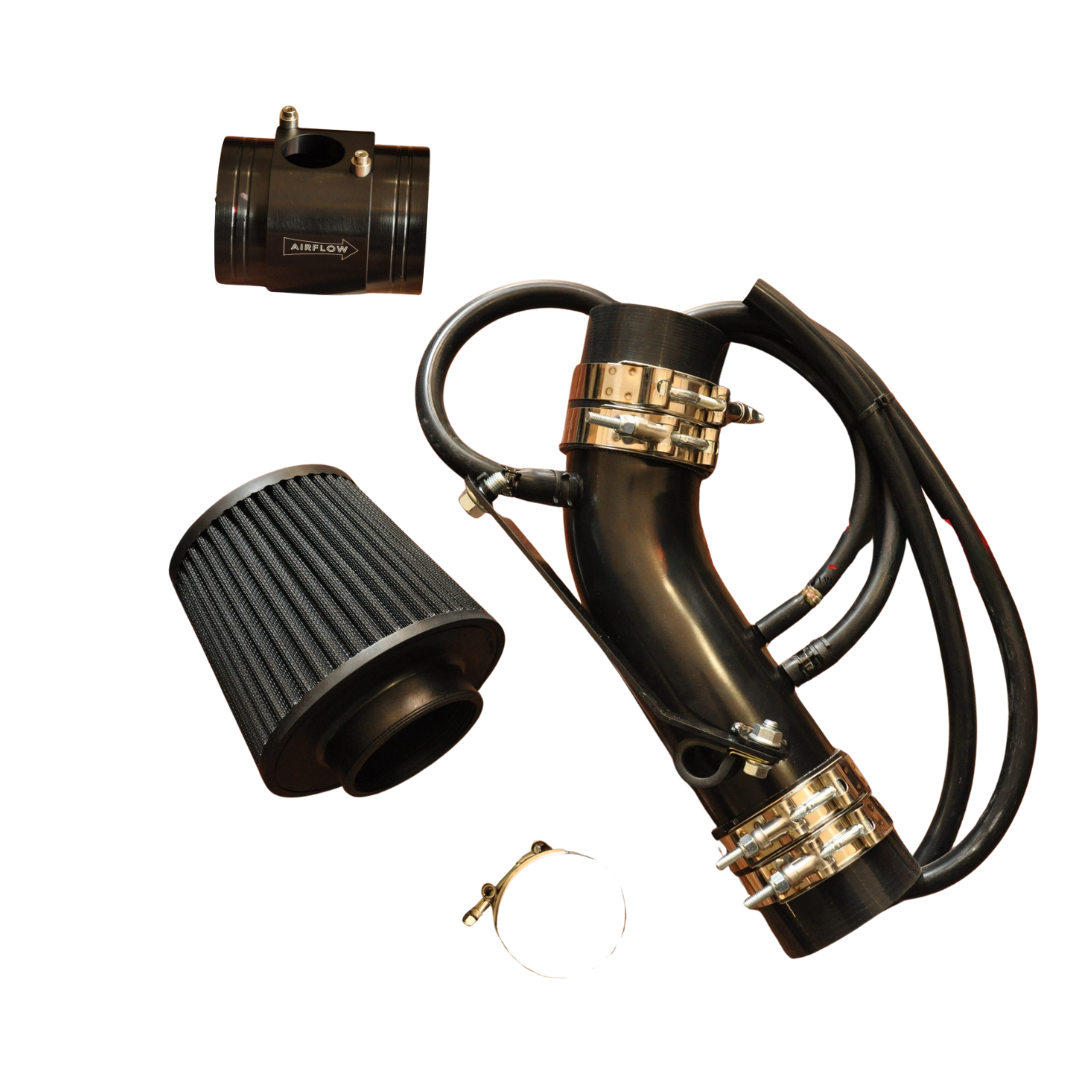

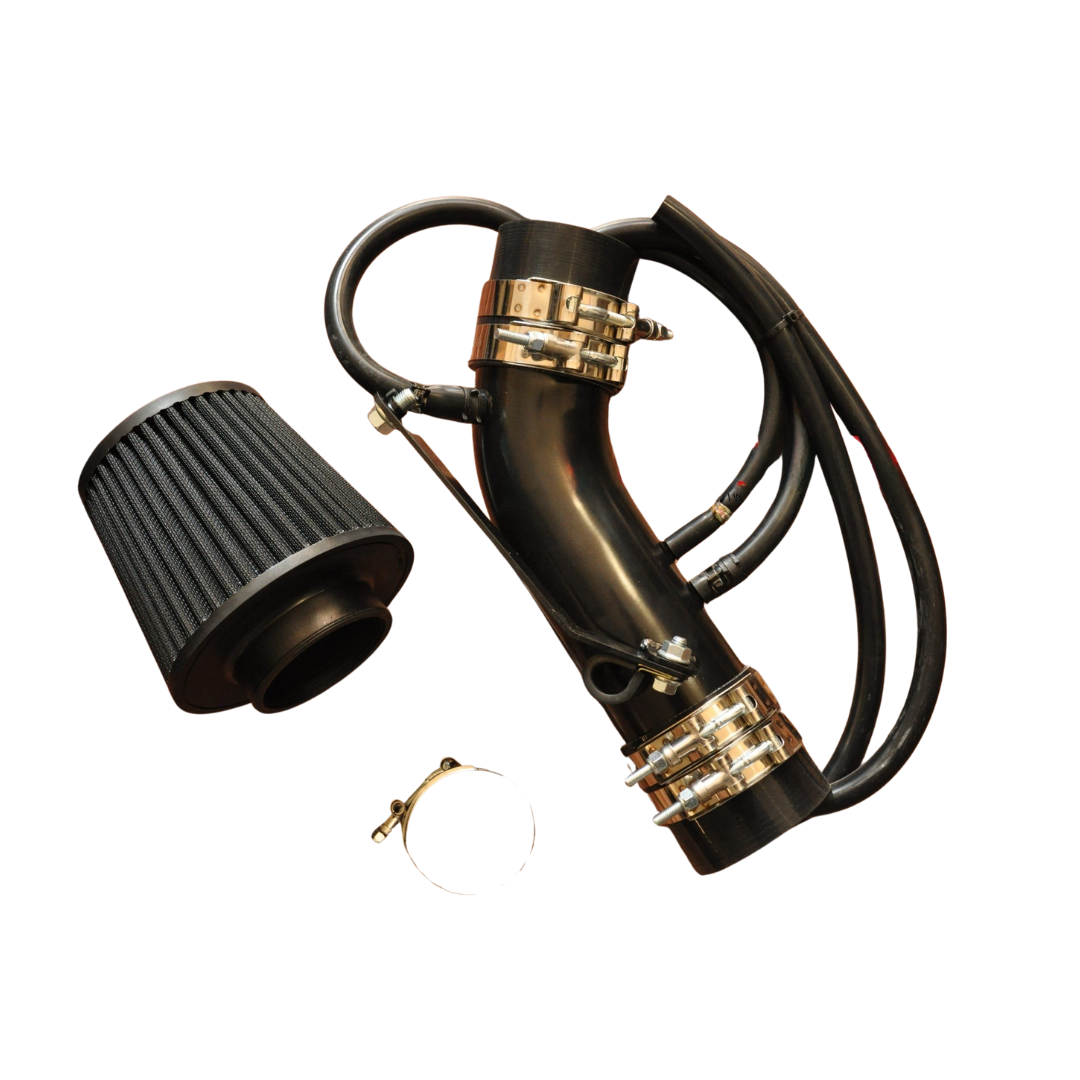

• Complete System: Includes intake tube, AEM Dryflow filter, and all necessary plumbing for turnkey installation
• Universal 5VZ Compatibility: Works with all models of 3.4L 5VZ-FE engines regardless of donor vehicle year
• Performance Enhancement: Improved throttle response and airflow over restrictive factory airbox systems
• Professional Finish: Black powder coat finish provides durability and a clean appearance in the engine bay
• AEM Dryflow Technology: Oil-free washable filter provides excellent filtration with up to 50,000-mile service intervals



Technical Specifications

Part Type: Complete Cold Air Intake Package
Engine Compatibility: 5VZ-FE 3.4L V6 (all years)
Filter Type: AEM Dryflow synthetic media (oil-free)
Tube Material: Mandrel-bent aluminum with powder coat finish
Finish: Black powder coat
Service Interval: Up to 50,000 miles (normal highway conditions)

Fitment

Application	Vehicle Type	Engine Conversion
1988-1995	Toyota Pickup/Truck	3.0L to 3.4L 5VZ-FE Swap
1984-1995	Toyota 4Runner	22R/3VZ to 5VZ-FE Swap
1990-1997	Toyota Land Cruiser (select models)	Various to 5VZ-FE Swap
Custom Applications	Rock Crawlers/Off-Road Builds	3.4L 5VZ-FE Conversions

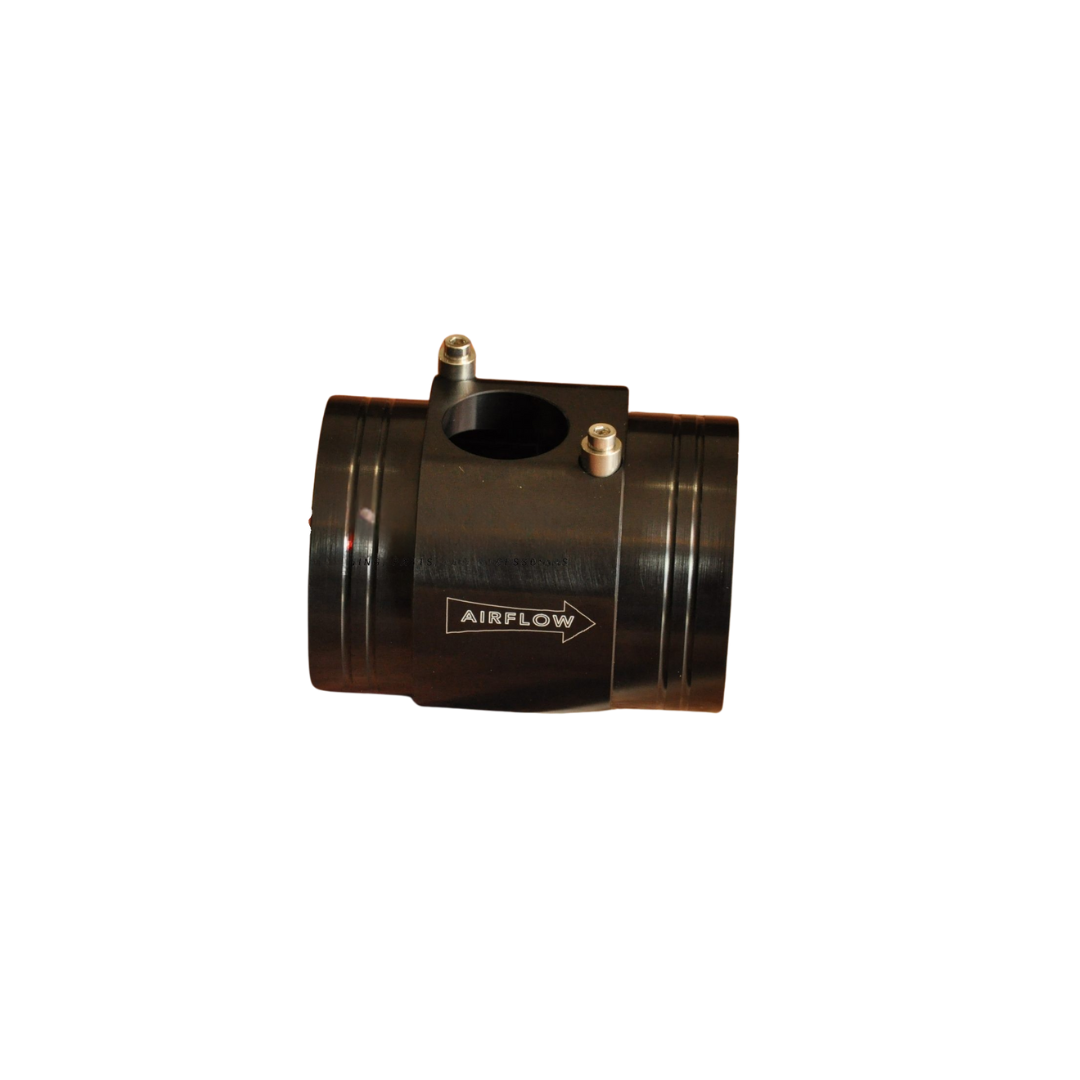

This system does NOT include the MAF sensor. MAF sensor housing is an option for 99-04.  Compatible with both early and late model 5VZ-FE MAF sensors with proper wiring harness adaptation.



Installation & Maintenance

Installation Difficulty: Intermediate
Tools Required: Basic hand tools, socket set, screwdrivers, MAF sensor mounting hardware
Professional Installation: Recommended for optimal routing and MAF integration

Maintenance Tips:

• Clean the AEM Dryflow filter every 50,000 miles using the AEM filter cleaner solution
• Inspect intake tube connections and clamps periodically for proper sealing
• Consider battery relocation to the left side for optimal intake tube routing
• Reset the ECU after installation to allow adaptation to increased airflow



Frequently Asked Questions

Q: Does this kit include the MAF sensor and housing?
A: This system does not include the MAF sensor. You must use the MAF sensor from your 3.4L donor vehicle, which connects directly to the intake tube.  The MAF sensor housing is available for '99-'04 years.

Q: Will this work with both early and late 5VZ-FE engines?
A: Yes, this intake system works with all model years of 5VZ-FE engines. However, MAF sensor wiring may require adaptation depending on your specific donor and recipient vehicle combination.

Q: How much performance gain can I expect?
A: Users typically report improved throttle response, especially in the low-to-mid RPM range, along with enhanced intake sound. Power gains vary,  but most experience noticeably better engine breathing compared to restrictive factory systems.

Related Toyota Parts You May Need

• Battery Relocation Kit - Provides better clearance for intake system installation.




Common Symptoms of Restrictive Factory Intake Systems

• Sluggish throttle response, especially during initial acceleration
• Reduced airflow, causing the engine to work harder at higher RPMs
• Muffled intake sound is limiting audible feedback from engine performance
• Restrictive airbox design limiting cold air access in the engine bay
• Difficulty routing factory intake components in swapped vehicle configurations



Why Choose This 3.4L Swap Intake System

Unlike generic cold air intake systems, this package is specifically designed for the unique requirements of Toyota 3.4L engine swaps. The challenges of integrating a 5VZ-FE into older Toyota chassis require specialized solutions that accommodate space constraints, MAF sensor positioning, and optimal air routing.

The AEM Dryflow filter technology represents a significant advancement over traditional oiled cotton filters, providing excellent filtration without the maintenance concerns of oil migration. This oil-free synthetic media enables extended service intervals while providing superior engine protection and maintaining consistent airflow characteristics.  The professional black powder coat finish ensures this system will withstand the harsh under-hood environment while providing a clean, finished appearance that complements your engine conversion project. The mandrel-bent aluminum construction provides smooth airflow transitions and long-lasting durability.

For serious 3.4L conversion projects, this intake system delivers the performance and reliability needed to maximize your 5VZ-FE investment. The combination of improved airflow, professional construction, and swap-specific engineering makes this the ideal choice for discriminating Toyota enthusiasts.

Transform your 3.4L swap with this complete intake solution and experience the enhanced performance and reliability that comes from purpose-built conversion components.
