Hilux / Pickup / 4Runner Crossover High Steer Kit Left Hand Drive
Hilux / Pickup / 4Runner Crossover High Steer Kit Left Hand Drive
SKU:600028
Crossover steering systems
replace the factory push-pull system eliminating about 90% of bump-steer. With
High Steer crossover steering, the tie rod is moved up and above the leaf
springs. This places the rod out of the way of most trail obstacles and provides
a clean factory look. Our kits feature our USA-steel and CNC-made
Solid Billet Steel steering arms and are packaged with our Heavy Duty
1.25" X .250 wall USA-steel and USA-made
D.O.M. seamless tubing and oversized FJ80 tie rod ends. The kit also includes a
one-piece pitman arm to complete the conversion.
IFS-type Steering box and mount kit are required
on '79-'85 Pickups/4Runners
sold separately.
Fits 1979-85 Pickups and
4Runners, and 1986-94 solid axle swapped Pickups and 1986-95 solid axle swapped
4Runners.
Please be aware that at
least a 4" suspension lift will be required to fit the High
Steer system.

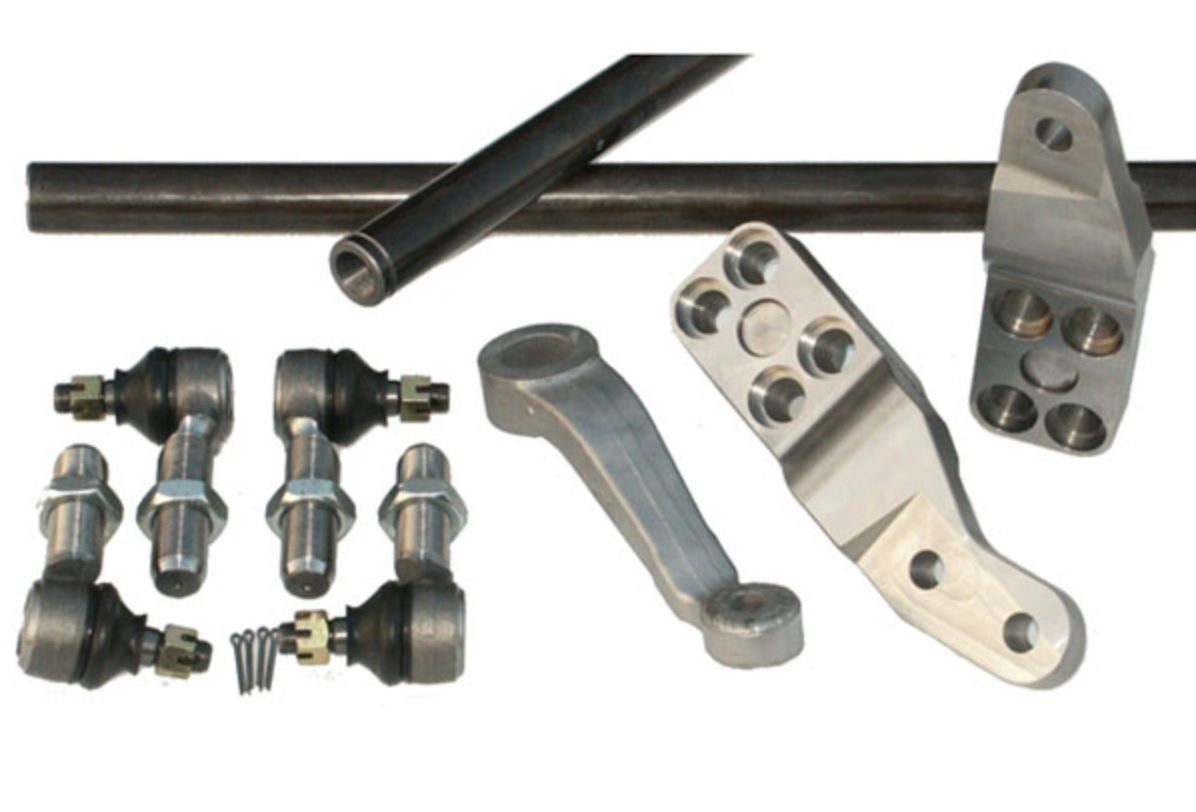

High Steer Steering kit
features:

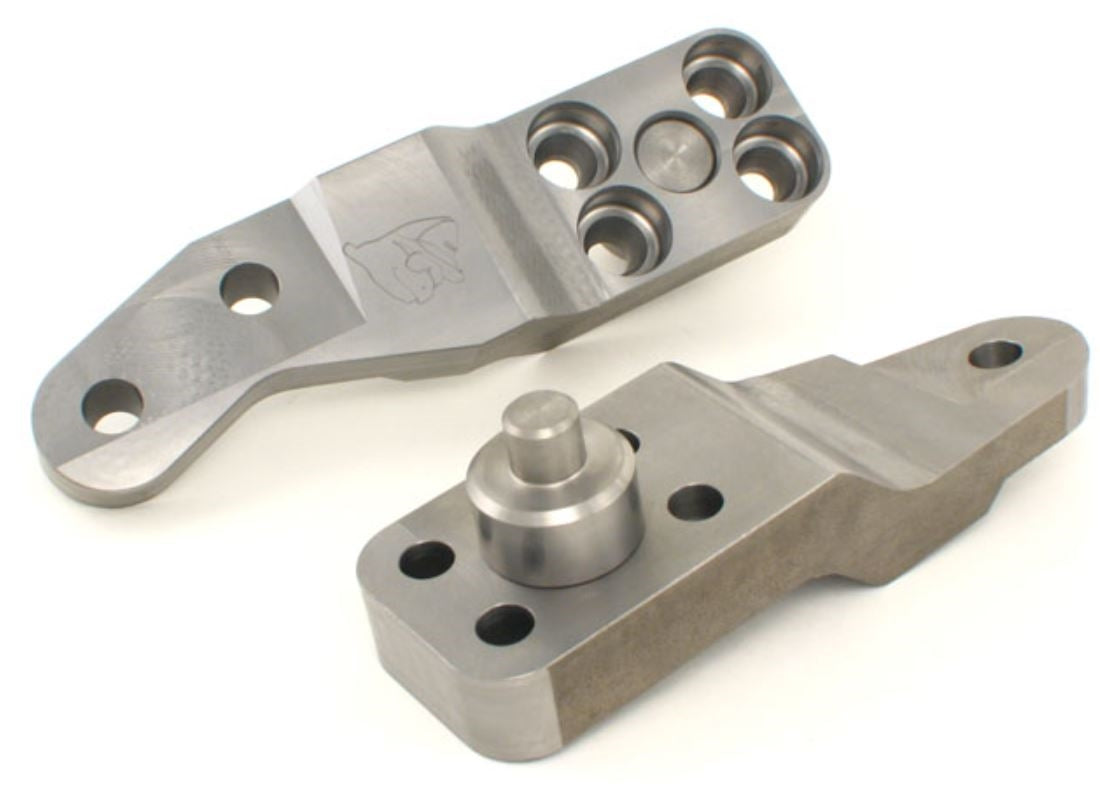

Superior Quality USA Billet CNC Machined Arms
Strong USA-made 17mm Chromoly Pins
We use a 78% larger 1-inch diameter pin-to-arm connection
The largest and strongest pin-to-arm connection on the market!
Heavy Duty 0.250"-wall USA DOM Tie Rod and Drag Link
(4) Huge 23mm FJ80 tie rod ends with jam nuts
One piece High Steer Pitman Arm
Design incorporates our 28 years of installing our HD Steering Kits since 1994
When it comes to the safety
of our own rigs, we would never take risks in using lower
quality steering components. We sell what we trust, and we know you won't be
disappointed in our High Steer kit!
We also offer a 25mm
Steering Pin Upgrade Kit that includes our 116% larger Dana-60 sized 25mm
Chromoly Pins and oversized 54% stronger KOYO knuckle bearings. This is the
strongest Toyota Steering Kit in the industry.
Standard Kit: Includes one complete High Steer Kit
with 17mm Chromoly pin-equipped arms.
