Hilux / Pickup / 4Runner Crossover High Steer Kit Right Hand Drive With 25mm Kit

Hilux / Pickup / 4Runner Crossover High Steer Kit Right Hand Drive With 25mm Kit

Regular price $994.99 USD
Regular price Sale price $994.99 USD
Sale Sold out
Shipping calculated at checkout.
SOLD OUT

SKU:600029

Hilux / Pickup / 4Runner Crossover High Steer Kit Right Hand Drive With 25MM Upgrade Pin Kit

Crossover steering systems replace the factory push-pull system eliminating about 90% of bump-steer. With High Steer crossover steering, the tie rod is moved up and above the leaf springs. This places the rod out of the way of most trail obstacles and provides a clean factory look. Our kits feature our USA-steel and CNC-made Solid Billet Steel steering arms and are packaged with our Heavy Duty 1.25" X .250 wall USA-steel and USA-made D.O.M. seamless tubing and oversized FJ80 tie rod ends. The kit also includes a one-piece pitman arm to complete the conversion.

During a crossover steering conversion, the stock steering stabilizer is discarded. This kit mounts a new heavier duty stabilizer shock between the frame rail and the drag link, which keeps the shock up high and out of the reach of those pesky rocks.

IFS-type Steering box and mount kit are required on '79-'85 Pickups/4Runners
sold separately.

Fits 1979-85 Pickups and 4Runners, and 1986-94 solid axle swapped Pickups and 1986-95 solid axle swapped 4Runners.

Please be aware that at least a 4" suspension lift will be required to fit the High Steer system.

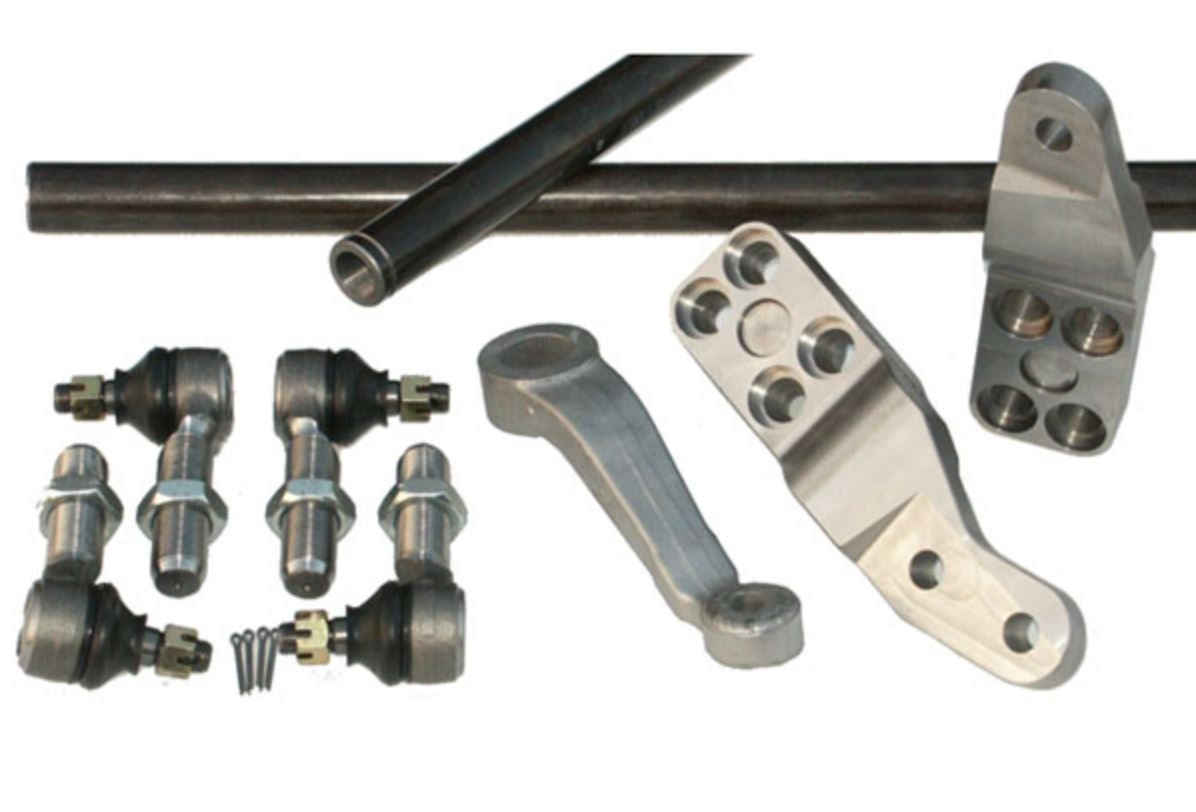

High Steer Steering kit features:

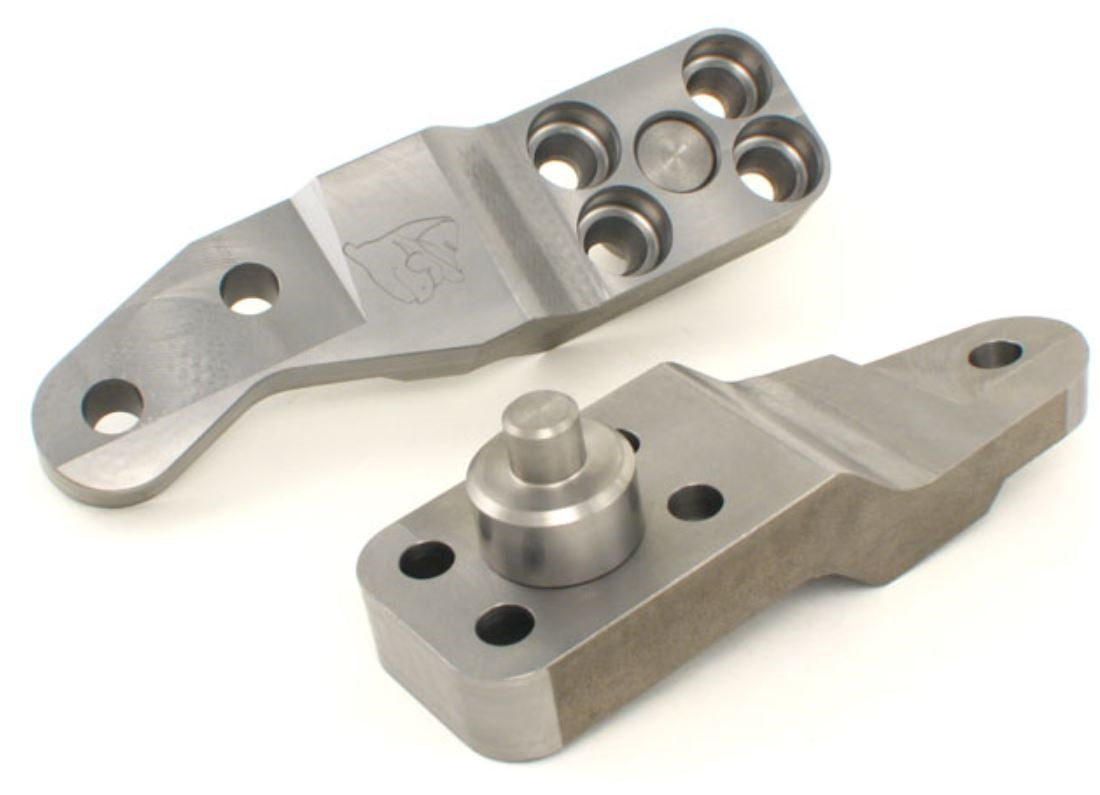

Superior Quality USA Billet CNC Machined Arms
Including Ultra Strong USA-made 25mm Chromoly Pins
We use a 78% larger 1-inch diameter pin-to-arm connection
The largest and strongest pin-to-arm connection on the market!
Heavy Duty 0.250"-wall USA DOM Tie Rod and Drag Link
(4) Huge 23mm FJ80 tie rod ends with jam nuts
One piece High Steer Pitman Arm
Design incorporates our 28 years of installing our HD Steering Kits since 1994

When it comes to the safety of our own rigs, we would never take risks in using lower quality steering components. We sell what we trust, and we know you won't be disappointed in our High Steer kit!

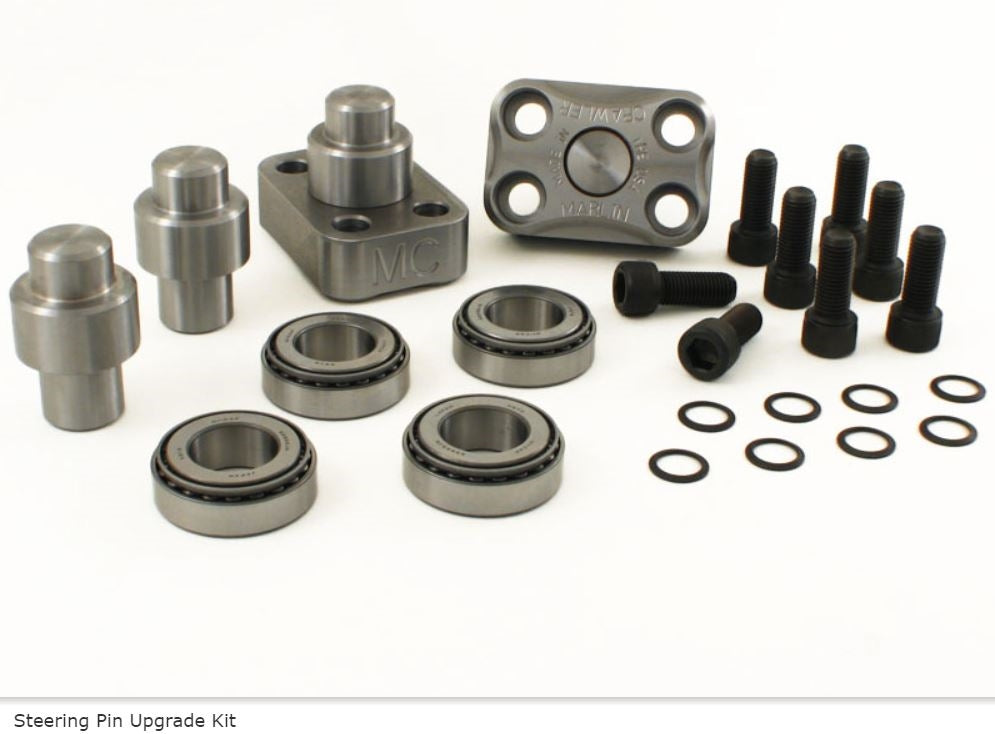

This kit includes our 25mm Steering Pin Upgrade Kit that includes our 116% larger Dana-60 sized 25mm Chromoly Pins and oversized 54% stronger KOYO knuckle bearings. This is the strongest Toyota Steering Kit in the industry.
