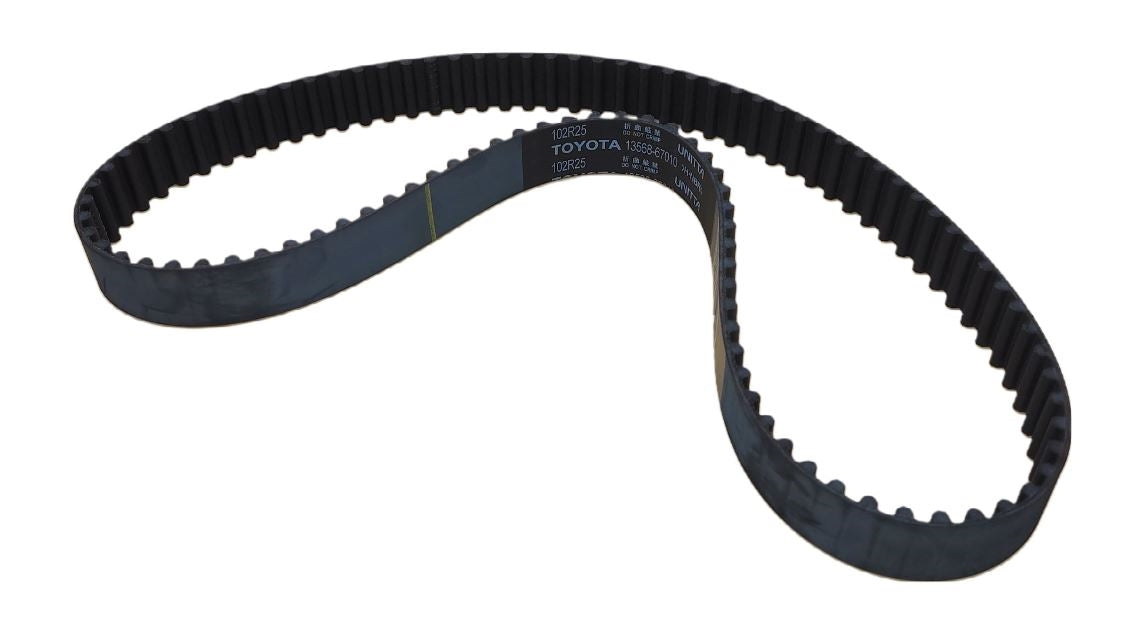

Toyota Diesel OEM Timing Belt 1KZ 1KZT 1KZTE 13568-69085
Toyota Diesel OEM Timing Belt 1KZ 1KZT 1KZTE 13568-69085
Couldn't load pickup availability
SKU:580082
Product Overview
Genuine OEM Toyota Timing Belt compatible with 1993-2009 Toyota Hiace, Hilux, Surf, 4Runner, Prado, and Land Cruiser models. This essential engine timing component ensures precise synchronization between camshaft and crankshaft operations for optimal engine performance. This OEM part is a perfect replacement, offering Toyota-quality reliability and critical engine protection.
OEM Part Number(s):
- 13568-69085 (current)
- 13568-67010 (superseded)
- 13568-69010 (superseded)
- 13568-67020 (superseded)
Key Features & Benefits
- Perfect Fit: Engineered specifically for Toyota 1KZ, 1KZT, and 1KZ-TE 3.0L diesel engine applications
- Quality Assurance: Genuine OEM construction with reinforced rubber compound and precision-molded teeth
- Performance: Maintains precise valve timing to prevent catastrophic interference engine damage
- Easy Installation: Direct OEM replacement with exact tooth count and specifications
- Value: Save significantly compared to dealership pricing while maintaining Toyota reliability standards
Technical Specifications
Part Type: Timing Belt Assembly
Material: Reinforced rubber with high-tensile fiber cords
Engine Compatibility: 1KZ, 1KZT, 1KZ-TE 3.0L turbo diesel engines
Belt Specifications: 102 teeth, 25mm width, curvilinear profile
Cross Reference: Gates 5405XS, Bando 102MR25H, Sun A382R25MM
Fitment
Year Range | Toyota Model | Engine Options |
---|---|---|
1995-2002 | Granvia / Grand HiAce | 1KZ-TE (KCH10, KCH16) |
1993-2004 | HiAce | 1KZ-TE (KZH100, KZH106, KZH110, KZH116, KZH120, KZH132, KZH138) |
1997-2002 | HiAce Regius | 1KZ-TE (KCH40, KCH46) |
1993-2005 | Hilux Surf / 4Runner | 1KZT, 1KZ-TE (KZN130, KZN185, KZN215) |
1999-2005 | Hilux / 4Runner Truck | 1KZ-TE (KZN165, KZN190, KZN205) |
1993-1996 | Land Cruiser | 1KZT, 1KZ-TE (KZJ70, KZJ71, KZJ73, KZJ77, KZJ78) |
1996-2009 | Land Cruiser Prado | 1KZT, 1KZ-TE (KZJ90, KZJ95, KZJ120) |
Important: Verify part compatibility using your vehicle's VIN or engine code before purchase. This is an interference engine - timing belt failure can cause severe internal engine damage.
Installation & Maintenance
Installation Difficulty: Advanced
Estimated Install Time: 6-8 hours
Tools Required: Complete socket set, timing tools, crankshaft holding tool, camshaft timing tools, torque wrench
Professional Installation: Strongly recommended due to precision timing requirements and interference engine design
Maintenance Tips:
- Replace timing belt every 100,000km (62,000 miles) or 5 years, whichever comes first
- Always replace timing belt tensioner and idler bearings simultaneously
- Consider replacing water pump during timing belt service
- Inspect camshaft and crankshaft seals during installation
Frequently Asked Questions
Q: What's included in the package?
A: Package includes the complete timing belt with maintenance record sticker. Tensioner, idler bearings, and water pump sold separately.
Q: How difficult is installation?
A: This is an advanced repair requiring specialized timing tools and expertise. The 1KZ is an interference engine where incorrect installation can cause catastrophic engine damage. Professional installation strongly recommended.
Related Toyota Parts You May Need
- Timing Belt Tensioner Assembly (13505-67050) - Essential replacement during belt service
- Timing Belt Idler Pulley (13505-67040) - Critical component for proper belt tracking
- Water Pump Assembly (16110-69045) - Commonly replaced during timing service
- Thermostat (90916-03121) - Recommended replacement during cooling system service
Common Symptoms of Timing Belt Failure
- Clanking or banging noises from engine bay
- Rough engine idling or misfiring
- Engine won't start or turn over
- Visible cracking or fraying on belt surface
- Engine running rough or lacking power
Why Replace Your Timing Belt
Critical Warning: The 1KZ is an interference engine, meaning pistons and valves occupy the same space at different times. If the timing belt fails, pistons will contact valves, causing severe and expensive engine damage, including bent valves, damaged pistons, and potential cylinder head damage.
Don't risk catastrophic engine failure - replace your timing belt at Toyota's recommended intervals with this genuine OEM replacement part. Regular timing belt maintenance is the most cost-effective way to protect your valuable 1KZ engine investment.


Toyota Diesel OEM Timing Belt 1KZ 1KZT 1KZTE 13568-69085
