RCV Ultimate CV Axle Set for Land Cruiser 80 Series ('91-'97) - 30 Spline 300M Shaft Upgrade
RCV Ultimate CV Axle Set for Land Cruiser 80 Series ('91-'97) - 30 Spline 300M Shaft Upgrade
SKU:700327
Manufactured in the U.S. using only high-strength chromoly
materials, RCV Performance Ultimate 30/30 spline CV Axle set simply replaces
your 80 Series Land Cruiser's weak axle shafts with a high-strength design. The
factory axles were designed with 30 splines at the differential, and neck down
to a coarse 24 Spline at the CV creating a common failure point. This axle set
upgrades the weak 24 splines at the CV to a 4340 30 spline race eliminating the
need to neck down the shaft. We have gone a step further by upgrading the
inner shafts to 300M, which provides an even greater tolerance to
stress. Tests prove Ultimate CV Axles to be twice as strong as OEM shafts,
and they're just as tough at a straight angle as they are at extreme angles.
Even if you have big tires and big power there are no worries. Ultimate CV
Axles are low maintenance and operate with a smoothness you can feel - whether
off road or on the street. And we back it all with a "No Questions
Asked" limited lifetime warranty.

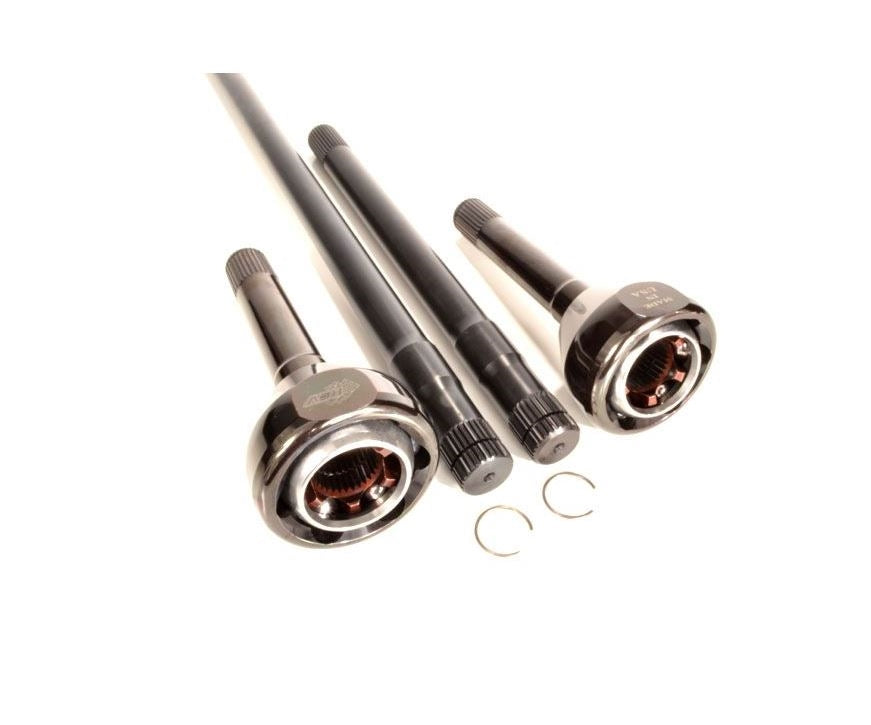

Axle set includes right and left inner axle shafts & 2
pre-greased CV joints.
Applications:
- '91-'97 Toyota Land Cruiser 80 Series FZJ80, HDJ80, HDJ81,
HZJ80
- '91-'07 Toyota Burbuja & Autana
- '98-'07 Toyota Land Cruiser 105 Series FZJ105, HZJ105
- '84-present Toyota GRJ76
*The CV joints are designed with dual snap-ring grooves to
accommodate both drive flange and manual hubs. Some trimming may be
required depending on the application.
