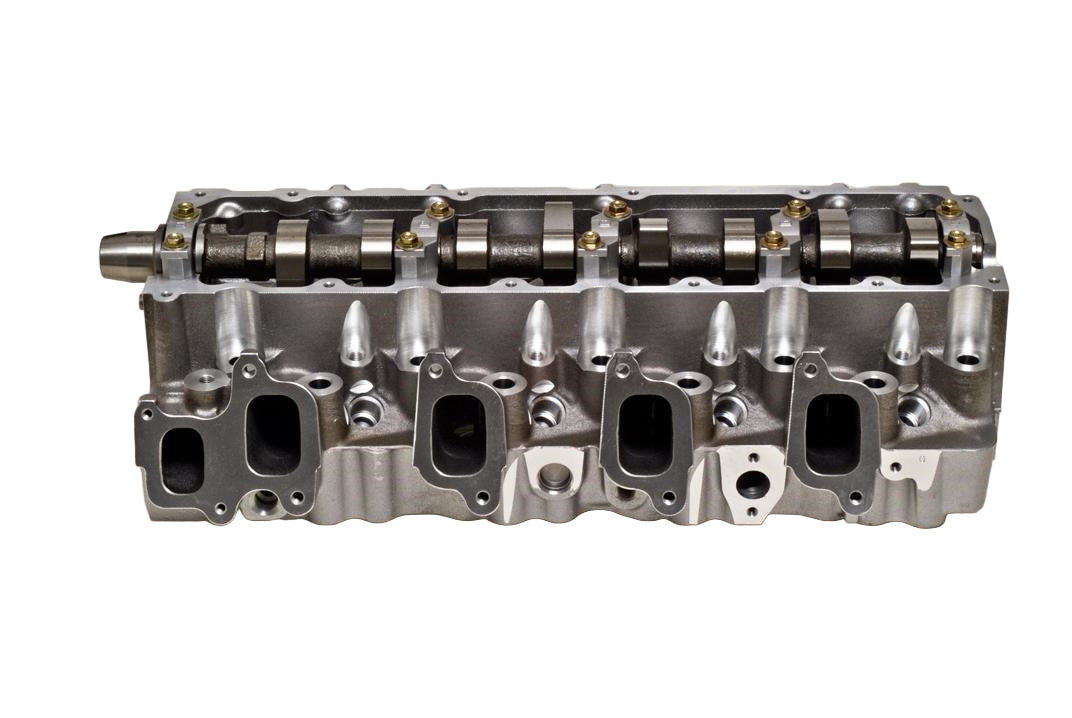

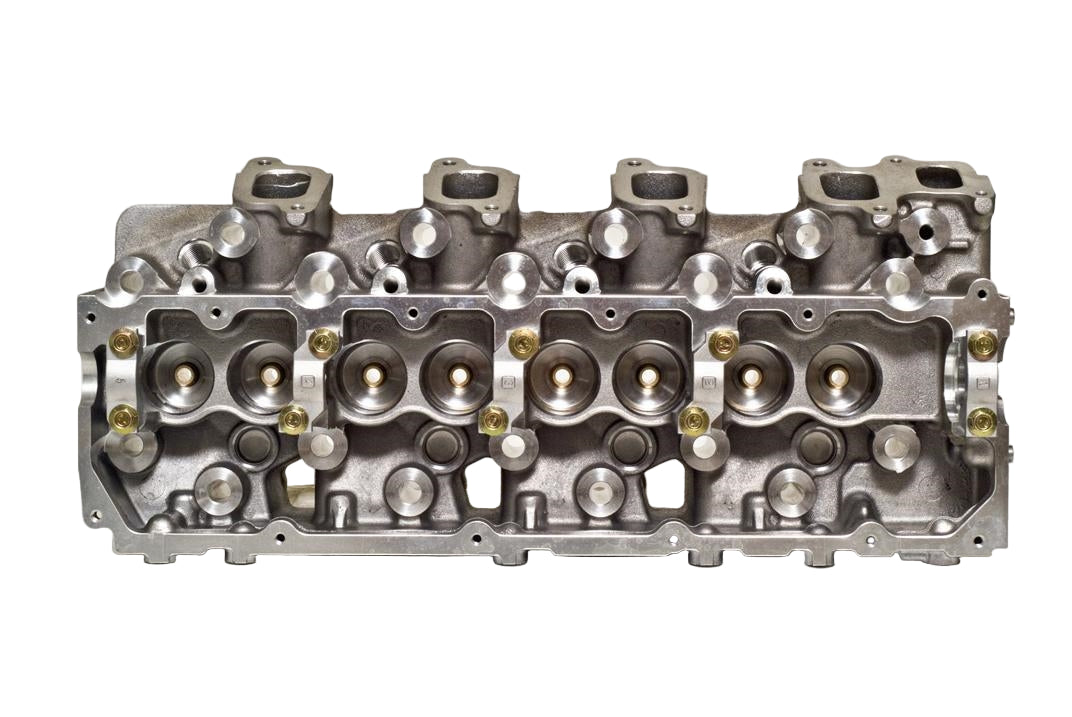

Toyota Diesel 1KZT 1KZTE New AMC Cylinder Head Hilux HiAce Surf Land Cruiser Prado 11101-69128 11101-69175

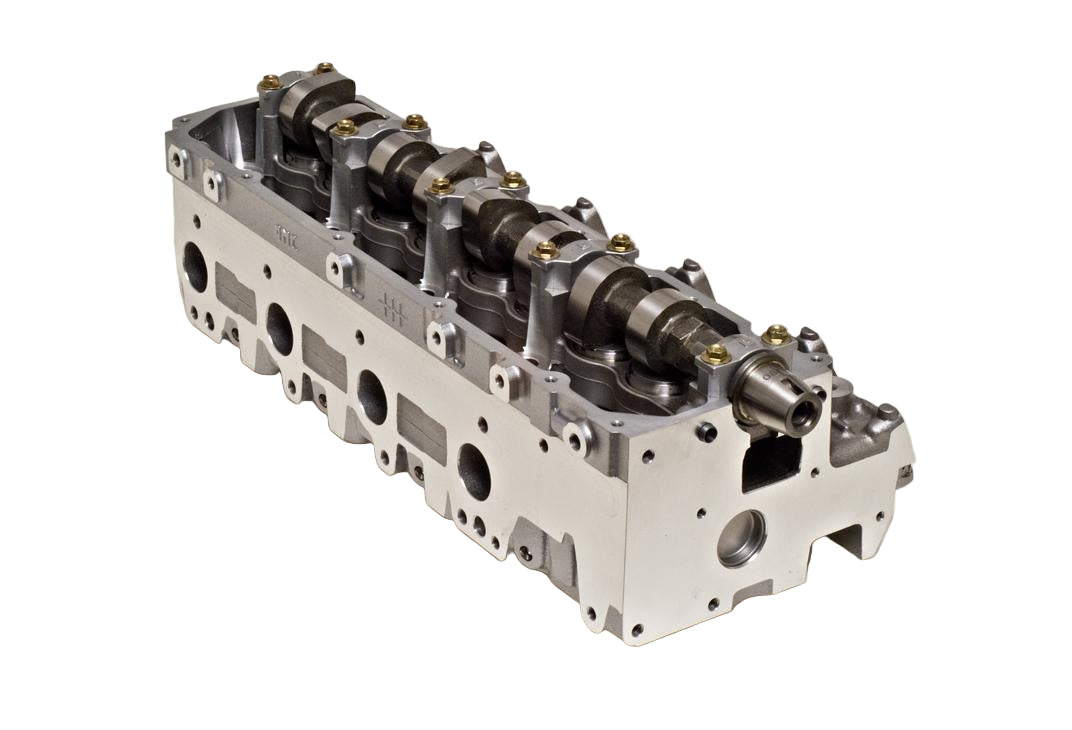

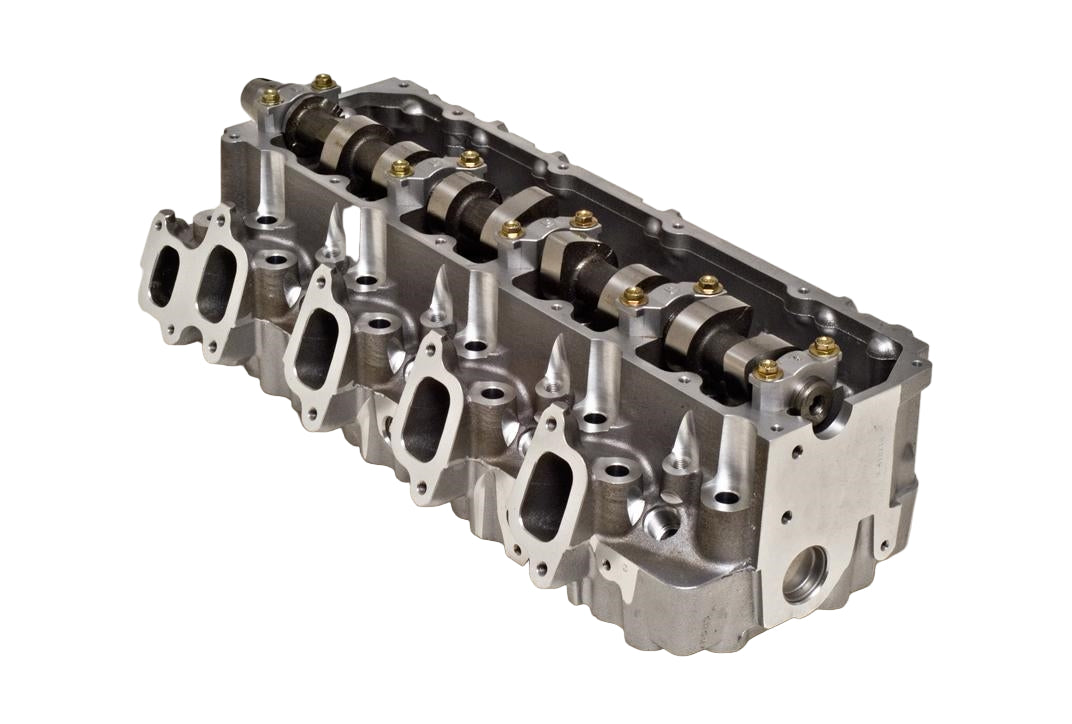

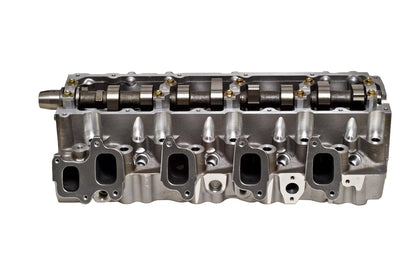

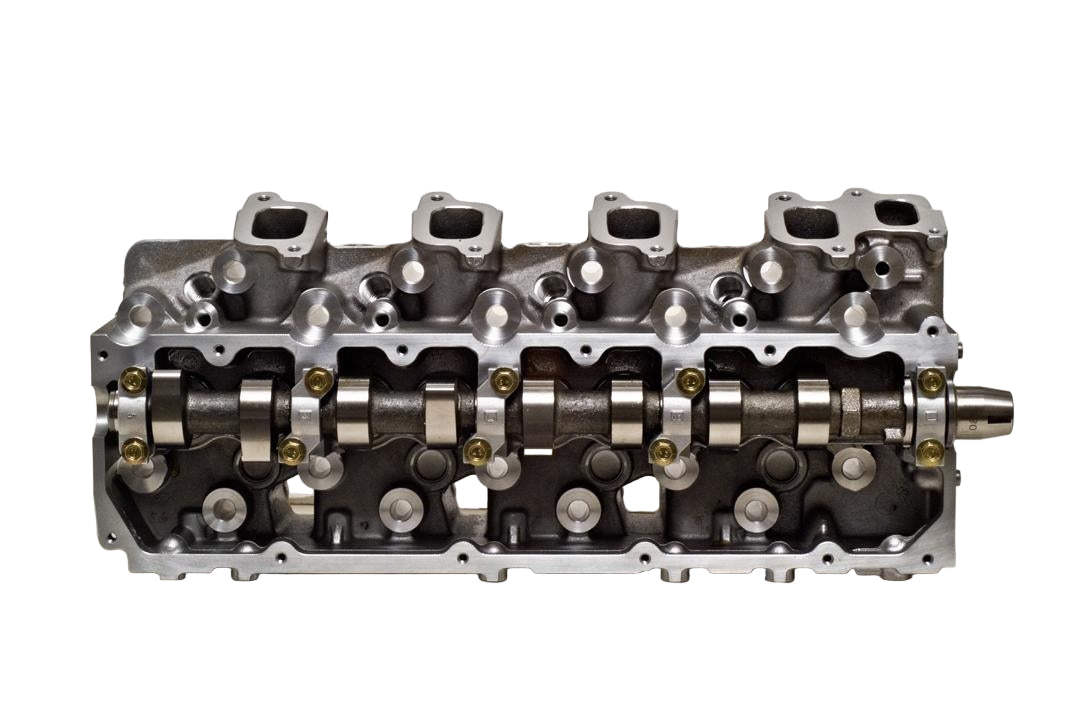

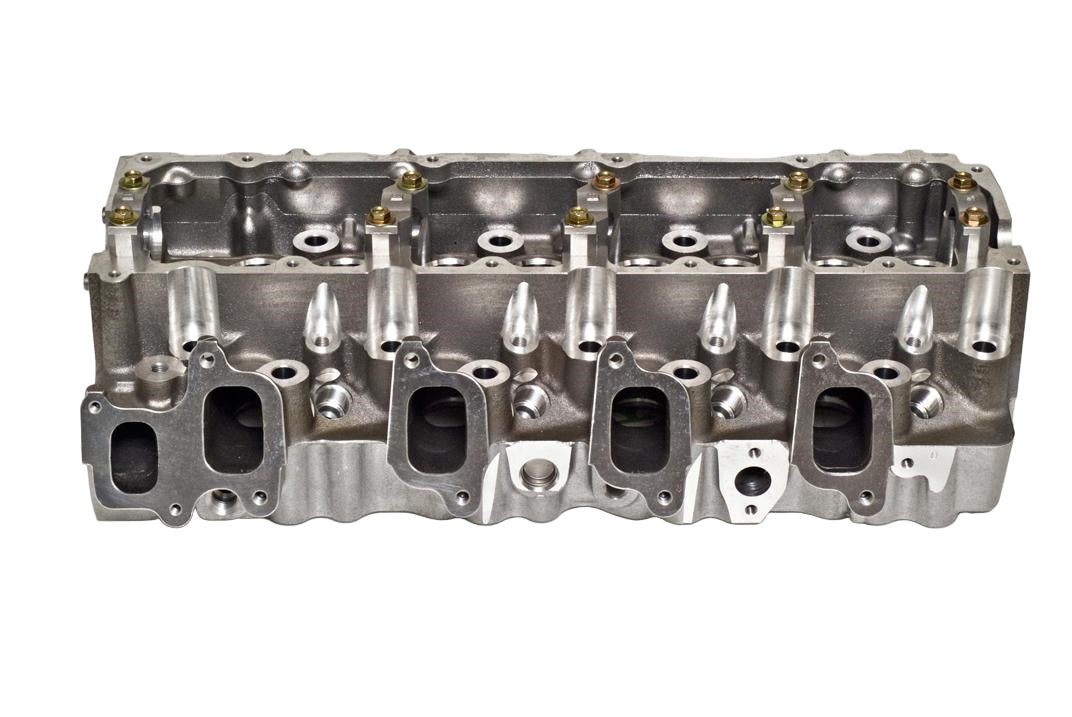

• Complete Loaded Assembly: Arrives pre-assembled with camshaft, valves, valve springs, valve guides, valve seats, and pre-combustion chambers — eliminates the need to source and assemble individual valvetrain components
• New Billet Casting: Machined from new aluminum billet, not a remanufactured or reconditioned core — provides a true clean-sheet foundation for engine rebuilds
• Tempered Reinforcement Between Valve Seats: AMC castings feature hardened reinforcement in the inter-valve bridge zone — the primary thermal crack propagation site in the original Toyota OEM head
• Pre-Combustion Chambers Included: Pre-chambers are installed and finished to specification — critical for the indirect injection combustion system of the 1KZ platform
• IATF 16949 Certified Manufacturing: AMC holds both IATF 16949:2016 and ISO 9001:2015 certification — the same quality standard required of OEM-tier automotive suppliers

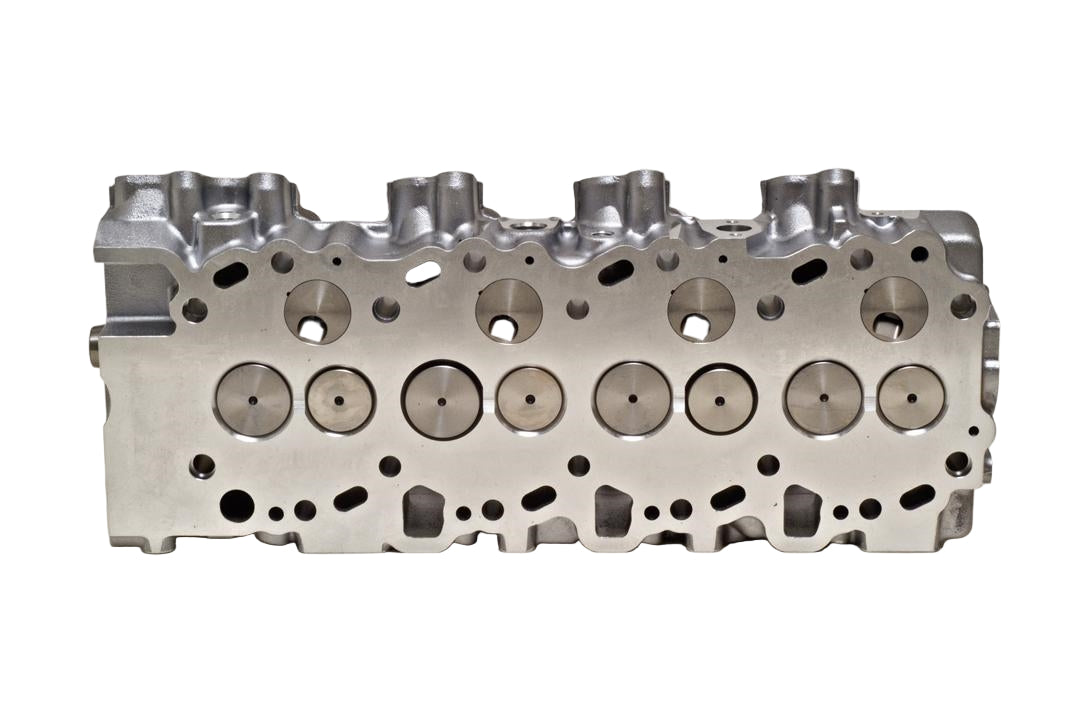

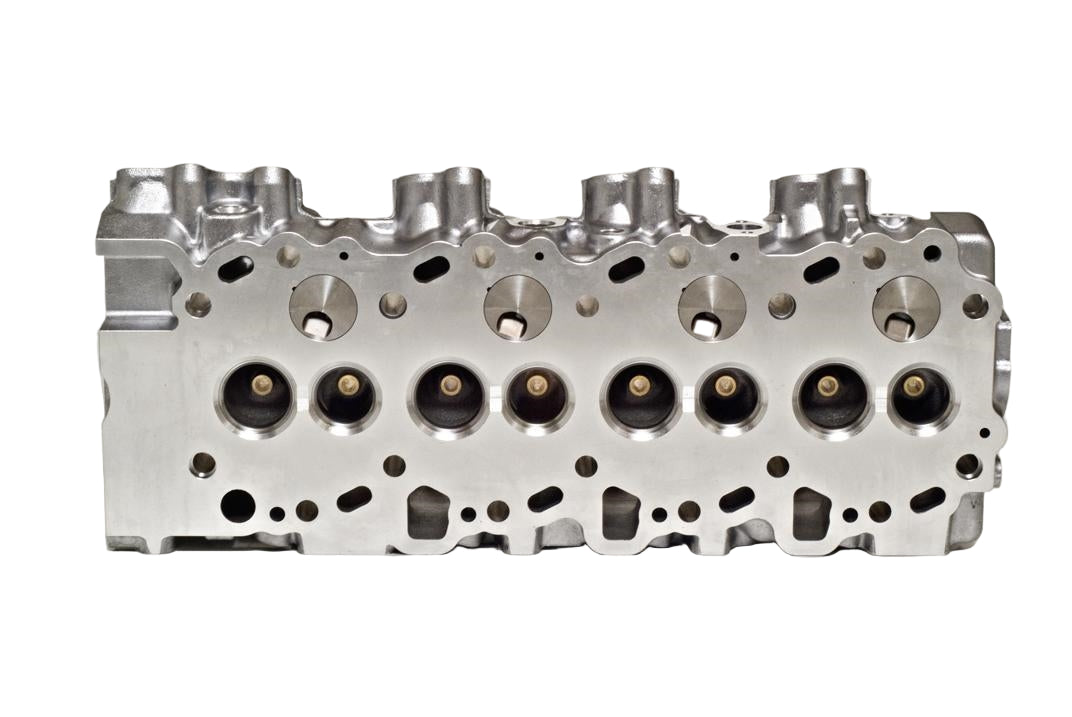

Q: What is the difference between Recessed Valves and Flush Valve variants, and how do I know which one I need?
A: Both are loaded cylinder head assemblies for the Toyota 1KZ-T and 1KZ-TE engines that differ in valve protrusion depth. The recessed valve has shorter valves that sit further below the head face and is used on engines whose pistons do NOT have valve relief pockets machined into the crown. The flush valve has longer valves that sit closer to the head face and is used on engines whose pistons DO have valve relief pockets. The only reliable way to identify which type you need is to remove the old cylinder head and inspect the piston crowns. If you cannot inspect the pistons, the recessed valve variant is the safer universal choice—it provides adequate clearance for both piston types.

Q: Do these cylinder heads fit both the 1KZ-T (mechanical pump) and 1KZ-TE (electronic pump)?
A: Yes. Both castings are compatible with both the 1KZ-T (mechanical injection pump) and the 1KZ-TE (electronic injection pump) variants. The cylinder head casting is the same across both engine codes — the primary difference between 1KZ-T and 1KZ-TE is in the fuel delivery system, not the cylinder head architecture.

Q: What OEM Toyota part numbers do these AMC heads replace?
A: The recessed valve replaces OEM Toyota part numbers 11101-69125, 11101-69126, 11101-69127, and 11101-69128. These are the early-production head numbers used across 1988–1999 applications. The flush valve replaces OEM Toyota part number 11101-69175, the later-production number used on 2000 and newer applications.

Q: Is this a remanufactured head or a new casting?
A: These are brand-new AMC castings machined from new aluminum billet — not remanufactured or reconditioned cores. AMC manufactures its Toyota cylinder heads at its facility in Nules, Castellón, Spain, under IATF 16949:2016 and ISO 9001:2015 quality certification. Each head arrives with guides, seats, and pre-combustion chambers installed, with the loaded version adding a camshaft, valves, and valve springs.

Q: What parts do I need to order alongside this cylinder head for a complete rebuild?
A: A complete 1KZ-TE cylinder head replacement requires: a new head gasket set, new head bolts (18x, AMC ref 258058 / M12 × 1.25 × 126mm, torque-to-yield — never reuse), timing belt and tensioner kit, water pump, thermostat, and camshaft oil seal. If your engine has overheated or experienced coolant loss, also inspect the turbocharger, radiator, and coolant hoses before reassembly.

Q: Can I install this cylinder head myself, or does it require a machine shop?
A: Professional installation is required. The block deck must be measured for flatness (maximum allowable warpage is typically 0.05mm per Toyota specification) and resurfaced by a machine shop if out of tolerance. Head bolt holes must be cleaned and thread-chased. Valve timing must be set precisely using appropriate tools. Attempting a cylinder head replacement without proper surface preparation is the leading cause of repeat head gasket failure on the 1KZ platform — the cost of a machine shop inspection is far less than a repeat repair.

Q: Does the 1KZ-TE have an interference engine design?
A: Yes. The 1KZ-TE is an interference engine, meaning the piston and valve travel paths overlap when the timing belt fails. If the timing belt breaks on a running 1KZ-TE, the pistons will contact the open valves, causing immediate and severe internal damage. Always replace the timing belt, tensioner, and idler when servicing the cylinder head — these are considered mandatory wear items whenever the engine is opened.

Installation Difficulty: Expert / Professional
Tools Required: Engine crane or hoist, torque wrench (capable of 105 N·m / 77 ft-lb), angle torque gauge, precision straight-edge and feeler gauge (block deck flatness check), valve timing tools, camshaft seal installer, cylinder head bolt set, thread chaser/cleaner for block head bolt holes
Professional Installation: Mandatory — block deck must be measured for flatness and reconditioned if necessary; head bolt holes must be cleaned and chased; torque-to-yield head bolts must never be reused

Maintenance Tips:

• Always replace head bolts — Toyota 1KZ-TE head bolts are torque-to-yield (TTY) fasteners and must not be reused; reusing stretch bolts is a common cause of repeat head gasket failure
• Replace the timing belt, timing belt tensioner, and idler pulley at the same time as the cylinder head — the 1KZ-TE is an interference engine, and timing belt failure causes piston-to-valve contact
• Inspect the water pump, thermostat, and radiator during reassembly — overheating is the primary cause of 1KZ head failure, and installing a new head on a compromised cooling system will repeat the failure
• Perform a coolant pressure test and oil analysis after the first 500km / 300 miles of operation to confirm head gasket integrity before returning the vehicle to normal use

Part Type: Complete Loaded Cylinder Head Assembly (with camshaft, valves, springs, guides, seats, pre-chambers)
Engine Compatibility: 1KZ-T, 1KZ-TE (3.0L turbo diesel, 4-cylinder SOHC)
Displacement: 2,982cc (2.98L)
Valve Configuration: 8-valve SOHC (2 valves per cylinder)
Cylinder Count: 4
Material: New aluminum alloy billet casting
Head Bolt Count: 18
Head Bolt Spec (OEM reference): M12 × 1.25 × 126mm
Valve Length — Recessed: Exhaust 103.5mm, Intake 103.4mm
Valve Length — Flush: Approximately 104.3mm (intake and exhaust)

Common Symptoms of 1KZ-TE Cylinder Head Failure

• White or grey smoke from the exhaust, particularly at startup or under load, indicates coolant entering the combustion chamber through a failed head gasket or cracked head
• Milky or frothy oil on the dipstick or inside the oil filler cap — the characteristic sign of coolant mixing with engine oil through a compromised head gasket
• Coolant reservoir losing level without any visible external leak — coolant is being drawn into the combustion chamber and expelled through the exhaust
• Cooling system pressurizing rapidly or overflow tank bubbling at operating temperature — combustion gases entering the coolant circuit through a cracked head or failed gasket
• Loss of compression on one or more cylinders with rough running or misfiring — damaged valve seats, cracked pre-combustion chambers, or a warped head deck
• Engine overheating with no apparent cause — the 1KZ head is susceptible to internal cracking between the valve seats and pre-chamber bores, often triggered by repeated overheating events
