Toyota 3L Diesel New AMC Cylinder Head 1988-1997 Hilux, HiAce, Prado 11101-54131
Toyota 3L Diesel New AMC Cylinder Head 1988-1997 Hilux, HiAce, Prado 11101-54131
Couldn't load pickup availability
SKU:574010
Product Overview
Restore the power and reliability of your Toyota 3L 2.8L diesel with a brand-new AMC cylinder head. Designed as a direct replacement for OEM heads prone to cracking and overheating, AMC’s improved casting ensures stronger performance, improved cooling, and a longer service life.
Available in two configurations:

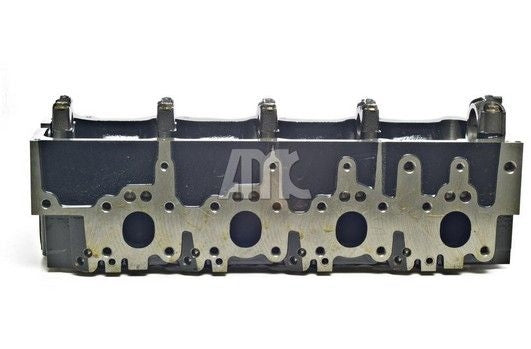

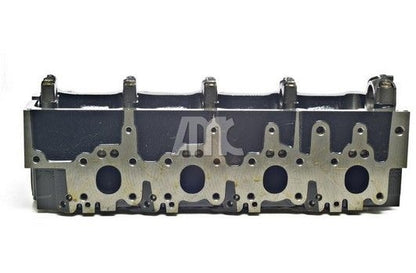

- Bare Casting for those who want to build their own setup with custom valves and springs

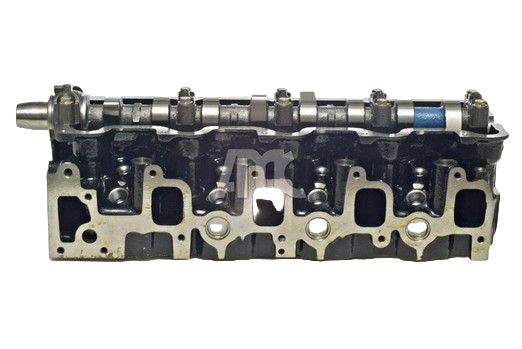

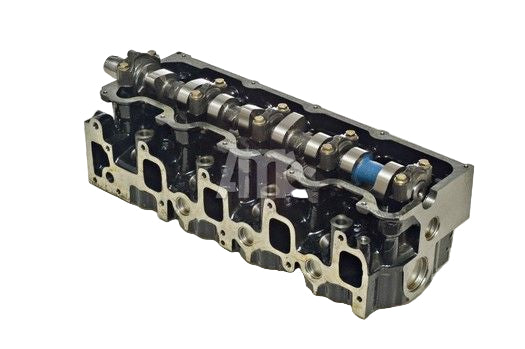

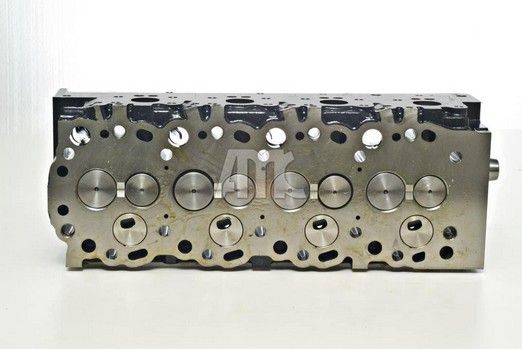

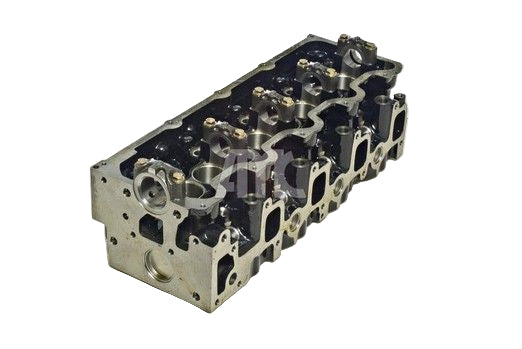

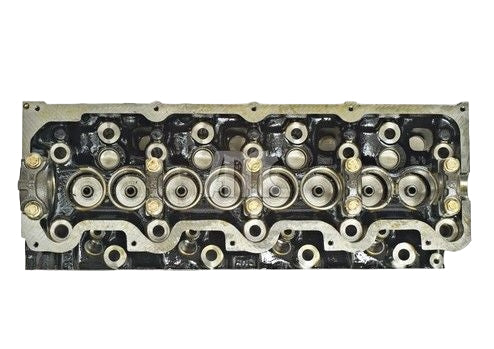

- Complete Head (Loaded) that comes pre-assembled with camshaft(s), with valves, with valve springs, with valve guides, valve seats, and pre chambers, and is ready to install
Fitment
| Model | Years | Engine |
|---|---|---|
| Toyota Hilux | 1988–1997 | 3L 2.8L Diesel |
| Toyota HiAce | 1988–1997 | 3L 2.8L Diesel |
| Toyota Prado | 1988–1997 | 3L 2.8L Diesel |
| Toyota Dyna | 1988–1997 | 3L 2.8L Diesel |
Key Features & Benefits
Key Features & Benefits
- Exact OEM fitment designed to Toyota factory specs for seamless install
- Stronger Casting with AMC metallurgy resists cracking and warping common to factory heads.
- Restores reliability & performance, eliminates black smoke, overheating, and loss of compression from failed heads.
FAQs
FAQs
Q: Does this cylinder head come complete with valves and camshaft provisions?
A: Yes, this loaded cylinder head includes valves, springs, and camshaft mounting provisions.
Q: What's the difference between 11101-54131 and 11101-54130?
A: Part number 11101-54131 supersedes the earlier 11101-54130. The current part number represents updated manufacturing specifications while maintaining full compatibility with all 3L diesel applications from 1988-2015.
Q: Does the 3L engine have hydraulic lifters?
A: No, the 3L engine uses solid tappets with shim-adjusted valve clearances. This design requires periodic valve clearance adjustment approximately every 30,000 km to maintain proper valve timing and prevent premature wear.
Q: Is this compatible with turbocharged 3L engines?
A: The 3L is a naturally aspirated diesel engine. If you have a turbocharged application, you may need the 2L-TE or 2L-T cylinder head, which are different designs. Always verify your engine code before ordering.
Related Toyota Parts You May Need
- Head Gasket Set - Essential for proper sealing and compression in diesel applications
- Head Bolt Set - New stretch bolts required for proper clamping force and head retention
- Timing Belt Kit - Replace during cylinder head service to prevent catastrophic failure
- Valve Adjustment Shim Kit - Required for proper valve clearance adjustment in 3L engines
- Water Pump - Recommended replacement during major engine service
- Thermostat Assembly - Maintain proper engine operating temperature
Related Toyota Parts You May Need
- Head Gasket Set - Essential for proper sealing and compression in diesel applications
- Head Bolt Set - New stretch bolts required for proper clamping force and head retention
- Timing Belt Kit - Replace during cylinder head service to prevent catastrophic failure
- Valve Adjustment Shim Kit - Required for proper valve clearance adjustment in 3L engines
- Water Pump - Recommended replacement during major engine service
- Thermostat Assembly - Maintain proper engine operating temperature
Installation & Maintenance
Installation & Maintenance
Installation Difficulty: Expert/Professional
Tools Required: Complete engine rebuild tools, torque wrench, valve grinding equipment, surface plate, precision measuring tools, valve clearance adjustment shims
Professional Installation: Mandatory - requires professional machining inspection, valve seat reconditioning, and expert assembly
Maintenance Tips:
- Professional inspection for warpage, cracks, and valve seat condition is essential before installation
- Replace head gasket, head bolts, and timing belt during cylinder head installation
- Adjust valve clearances using shims - 3L engines do not have hydraulic lifters
- Use genuine Toyota torque specifications and tightening sequence for proper installation
- Valve clearance adjustment required every 30,000 km for optimal performance
Technical Specifications & Additional Information
Technical Specifications & Additional Information
Part Type: Complete Cylinder Head Assembly
Engine Compatibility: 3L 2.8L naturally-aspirated diesel
Material: Cast iron construction
Valve Configuration: 8-valve SOHC (Single Overhead Cam)
Valve Actuation: Direct tappet design
Displacement: 2,779cc (2.8L)
Bore x Stroke: 96mm x 96mm (3.78" x 3.78")
Compression Ratio: 22.2:1
Weight: Approximately 40 kg (88 lbs)
