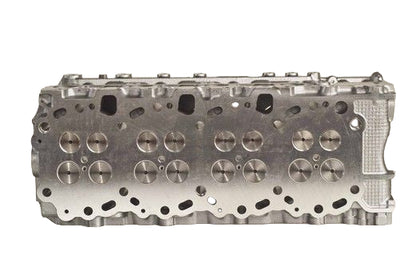

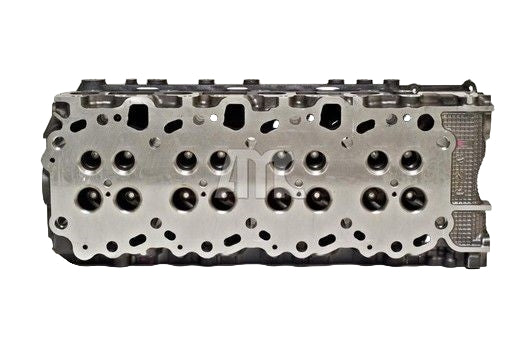

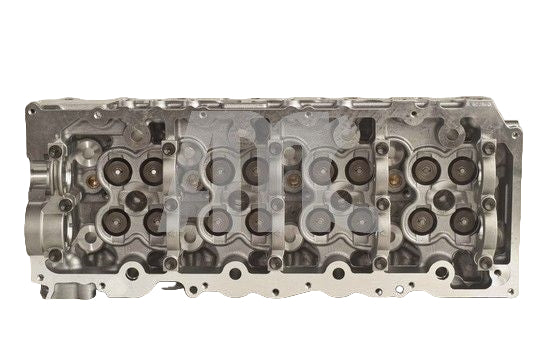

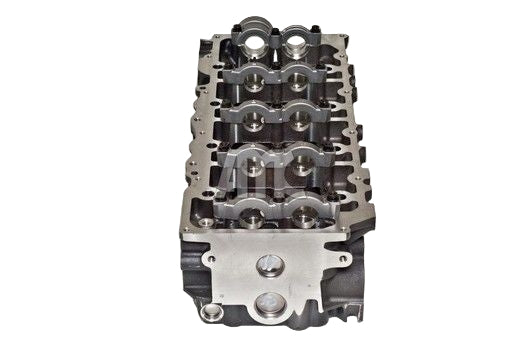

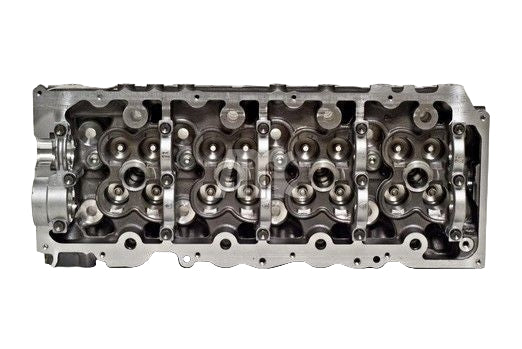

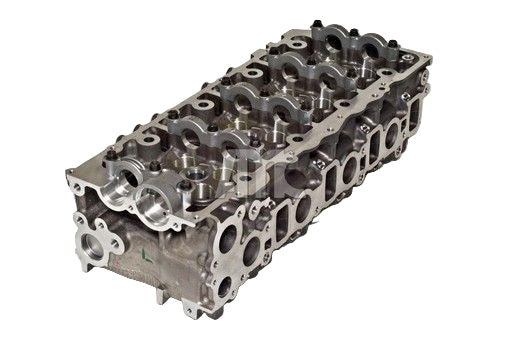

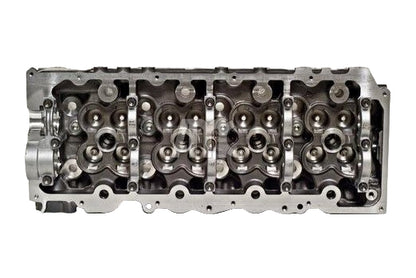

Toyota Diesel 2KD-FTV New AMC Cylinder Head 11101-30040

Toyota Diesel 2KD-FTV New AMC Cylinder Head 11101-30040

Regular price $1,484.99 USD
Regular price Sale price $1,484.99 USD
Sale Sold out
Shipping calculated at checkout.
Type

SKU:574008

Product Overview

Genuine OEM Toyota Cylinder Head Assembly compatible with 2001-2015 Toyota Hilux, Hiace, Dyna, Fortuner, and Innova models with 2KD-FTV turbo diesel engines. This precision-engineered cylinder head delivers optimal combustion chamber performance and ensures reliable turbo diesel operation. This complete OEM assembly is designed for major engine rebuilds or cylinder head replacement in Toyota's proven 2.5L D-4D common rail diesel platform.

This Head is available in two configurations:

Bare Casting for those who want to build their setup with custom valves and springs
Complete Head (Loaded) that comes pre-assembled with camshaft(s), with valves, with valve springs, with valve guides, valve seats, and pre chambers, and is ready to install.

OEM Part Number(s):

  • 11101-30040 (primary)
  • 11101-30041 (alternate)
  • 11101-30060 (related application)
  • 11101-0L050 (superseded)



Key Features & Benefits

  • D-4D Common Rail Design: Engineered specifically for high-performance 2KD-FTV turbo diesel applications
  • Complete DOHC Assembly: Includes 16 valves, springs, camshaft provisions, and related components.
  • Performance: Maintains 18.5:1 compression ratio and optimal valve timing for maximum turbo diesel efficiency
  • Advanced Construction: High-strength aluminum alloy for superior heat dissipation and durability



Technical Specifications

Part Type: Complete Cylinder Head Assembly
Engine Compatibility: 2KD-FTV 2.5L turbo diesel
Material: High-strength aluminum alloy construction
Valve Configuration: 16-valve DOHC (Double Overhead Cam)
Displacement: 2,494cc (2.5L)
Compression Ratio: 18.5:1
Bore x Stroke: 92.0mm x 93.8mm

Fitment

Year Range Toyota Model Engine Options
2001-2015 Hilux / Vigo 2KD-FTV 2.5L turbo diesel
2001-2019 Hiace 2KD-FTV 2.5L turbo diesel
2005-2015 Fortuner 2KD-FTV 2.5L turbo diesel
2004-2016 Innova 2KD-FTV 2.5L turbo diesel
2001-2011 Dyna / ToyoAce 2KD-FTV 2.5L turbo diesel
2003-2006 4Runner (select markets) 2KD-FTV 2.5L turbo diesel

Important: This cylinder head is specifically designed for 2KD-FTV turbo diesel engines. Verify engine code and year compatibility before ordering. Professional machining and installation services are required.

Installation & Maintenance

Installation Difficulty: Expert/Professional
Estimated Install Time: 12-20 hours
Tools Required: Complete engine rebuild tools, torque wrench, valve grinding equipment, surface plate, precision measuring tools
Professional Installation: Mandatory - requires professional machining and expert assembly

Maintenance Tips:

  • Professional inspection for warpage, cracks, and valve seat condition is essential before installation
  • Replace the head gasket, head bolts, and timing belt kit during cylinder head service
  • Inspect the turbocharger and common rail system during a major engine rebuild
  • Use genuine Toyota torque specifications and plastic region tightening procedures



Frequently Asked Questions

Q: What's included in this cylinder head assembly?
A: This complete assembly includes valves, springs, camshaft mounting provisions, and valve train components. Professional inspection and reconditioning may be required for optimal performance.

Q: Is this compatible with both intercooled and non-intercooled 2KD-FTV engines?
A: Yes, this cylinder head is compatible with all 2KD-FTV variants, including both intercooled (high-power) and non-intercooled versions. Verify your specific engine configuration before placing your order.

Related Toyota Parts You May Need

  • Head Gasket Set - Essential steel-laminate gasket for proper sealing and compression
  • Head Bolt Set - New plastic region tightening bolts required for proper clamping force
  • Timing Belt Kit - Replace during cylinder head service for optimal reliability
  • Turbocharger Assembly - Inspect and service during major engine rebuild



Common Symptoms of 2KD-FTV Cylinder Head Problems

  • Coolant mixing with engine oil (milky oil appearance on dipstick)
  • White smoke from the exhaust indicates coolant combustion in the cylinders
  • Engine overheating and rapid coolant loss without visible external leaks
  • Loss of compression is causing a rough idle and reduced power output
  • Excessive pressure buildup in the cooling system and radiator cap venting



Why Choose OEM 2KD-FTV Cylinder Head?

Proven D-4D Common Rail Technology: The 2KD-FTV is Toyota's advanced 2.5L turbocharged diesel engine, featuring D-4D (Direct Injection 4-stroke Common Rail Diesel) technology. This engine powers millions of Toyota commercial and passenger vehicles worldwide, renowned for exceptional fuel economy, reliability, and torque delivery.

With its 18.5:1 compression ratio and advanced common rail injection system delivering up to 200 MPa injection pressure, this engine provides outstanding performance across Toyota's global vehicle lineup. The dual overhead cam design with 16 valves ensures optimal breathing for maximum power and efficiency.

However, like many modern diesel engines, proper cylinder head maintenance is critical for long-term reliability. Don't compromise on this essential component - invest in genuine Toyota OEM quality for your 2KD-FTV rebuild. Professional installation with correct torque procedures and quality break-in will ensure maximum service life from Toyota's proven turbo diesel platform.
