Toyota 2L / 2LT New AMC Cylinder Head 1997-2001 Hilux HiAce Dyna 11101‑54170

This cylinder head has a less frequent production schedule.  Availability fluctuates regularly; email sales@northwesttoysllc.com for the most up-to-date information.

Product Overview

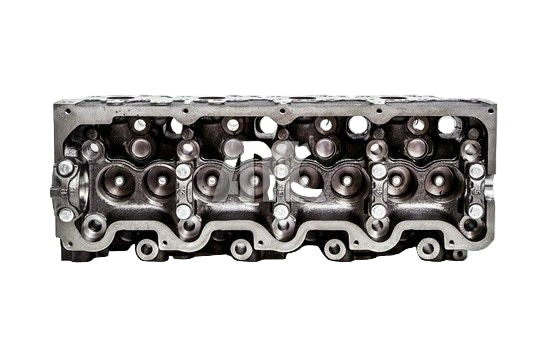

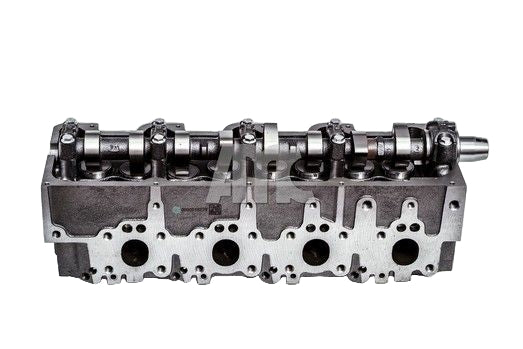

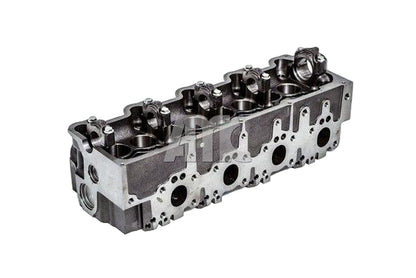

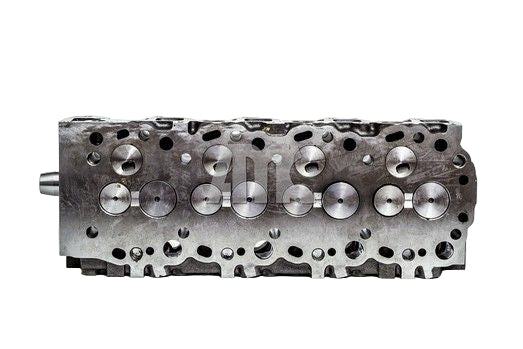

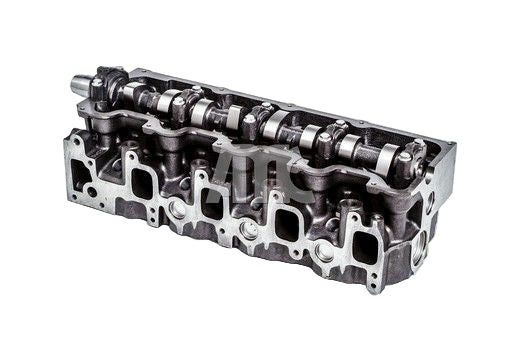

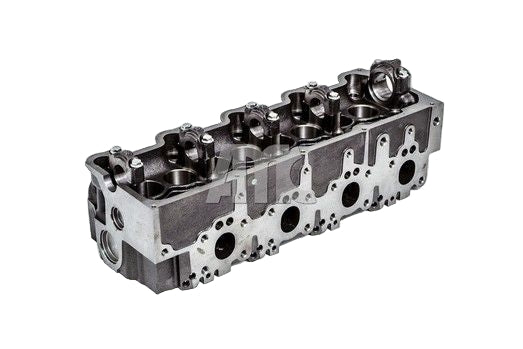

New, fully assembled AMC cylinder head.  This head is the direct aftermarket equivalent of Toyota OEM 11101-54170, built for the 2L and 2L-T 2.4L (2,446cc) SOHC diesel engines found in 1997-2001 Hilux, HiAce, and Dyna 100/150 trucks and vans. This head arrives complete with valves and valve springs already installed, so your engine builder can move straight to camshaft, rocker, and head gasket installation without sourcing or fitting a valvetrain separately. Each head is a new casting, not remanufactured, not a used core, engineered to the same bore, stroke, and water-jacket geometry as the factory 11101-54170 assembly. That makes it a practical option for a major 2L/2L-T diesel rebuild, a head replacement after a crack or warp, or an engine swap project where a fresh head costs less than repeatedly machining and pressure-testing a decades-old factory casting.

OEM & Cross-Reference Part Number

• 11101-54170

Key Features & Benefits

• Skip the valvetrain assembly step: Arrives with valves and valve springs pre-installed.
• Starts at zero service history: Every head ships new, no prior weld repairs, no guessing at a used casting's history.
• Bolts up without modification: Built to the 11101-54170 bore and water-jacket geometry, so your existing manifolds, rocker assembly, and head gasket set fit as designed.
• Cast iron durability for diesel compression loads: Cast iron construction matching Toyota's factory material handles the higher cylinder pressures of 2L/2L-T diesel operation better than many repaired or resurfaced used heads.
• Avoids the hidden cost of a repeat failure: A new head costs less over time than machining, pressure-testing, and re-testing a core that can crack again under the same conditions that failed it the first time.

Technical Specifications

Part Type: Complete cylinder head assembly. New casting with valves and valve springs installed (camshaft, rocker shaft, and head bolts not included)
Engine Compatibility: Toyota 2L and 2L-T 2.4L (2,446cc) SOHC diesel
Material: Cast iron head and valve seats (matches Toyota factory specification)
Valve Configuration: SOHC, 8 valves total (2 per cylinder)
Bore x Stroke: 92mm x 92mm (matches 2L/2L-T block)
Compression Ratio: approx. 22.3:1 (2L naturally aspirated) / approx. 20.0:1 (2L-T turbo)

Fitment

Important — verify before ordering: Toyota reused the 2L/2L-T engine code across multiple cylinder head castings and production years. The 1997-2001 window above reflects the application this casting was originally produced for; earlier or later production years in the same model line may call for a different OEM number (11101-54111, -54120, or -54121), and these are not confirmed interchangeable with 11101-54170. Confirm your vehicle's exact engine code and chassis code against your VIN plate or a current Toyota Parts Online lookup before ordering. If you're unsure, email a photo of your VIN plate and engine code to sales@northwesttoysllc.com, and we'll confirm fitment before you order.

Installation & Maintenance

Installation Difficulty: Expert / Professional
Tools Required: Torque wrench (head bolt sequence), engine hoist or support, feeler gauges for valve clearance, access to a surface plate or machine shop flatness check, complete diesel engine toolkit

Professional Installation: Strongly recommended. Diesel cylinder head installation involves precise torque sequencing, valve clearance adjustment, and head-gasket surface verification — mistakes here cause repeat failures, not just inconvenience.

Maintenance Tips:

• Always install a new head gasket set and new head bolts — reused stretch bolts are a common cause of early gasket failure on diesel heads.
• Have a machine shop check the head surface for flatness before final installation, even on a new casting, since shipping and handling can occasionally introduce minor warp.
• Set valve clearances to Toyota's factory cold specification before first start, then re-check after the first 500 miles of break-in.
• Bleed the cooling system thoroughly after installation — trapped air pockets around the head are a frequent cause of early overheating complaints on these engines.

Frequently Asked Questions

Q: Is this a genuine Toyota part or an aftermarket casting?
A: This is a new aftermarket casting manufactured by AMC, engineered as a direct equivalent to Toyota OEM 11101-54170. It is not a genuine Toyota-branded part, and we describe it as a new AMC assembly rather than "genuine OEM" so you know exactly what you're buying.

Q: Will this head fit my 2L-T if my truck is outside the 1997-2001 range?
A: Possibly not without verification. Toyota issued several cylinder head castings across the 2L/2L-T production run (11101-54111, -54120, -54121, and -54170 among them), and they are not confirmed interchangeable in valvetrain or cooling design. Confirm your vehicle's exact OEM part number or engine code before ordering.

Q: Does this head come with a camshaft or head gasket?
A: Yes - this cylinder head assembly includes valves, valve springs only, and a camshaft. You'll need a head gasket set and new head bolts to complete installation. See Related Parts below.

Q: How long does it take if this head is out of stock?
A: Lead times on AMC 2L/2L-T heads can run several weeks, since this is a lower-volume casting compared to AMC's 1KZ-TE and 3.0L diesel heads. Contact sales@northwesttoysllc.com for current stock status and lead time before planning a rebuild timeline around this part.

Related Toyota Parts You May Need

• Head Gasket Set — required anytime the head is removed; reusing an old gasket is a leading cause of repeat coolant leaks.
• Head Bolt Set — diesel head bolts are stretch-type fasteners and should never be reused.
• Rocker Shaft Assembly / Rocker Arms — inspect for wear whenever the head comes off; worn rockers cause valve noise and uneven wear on a new head's valve stems.
• Timing Chain / Timing Gear Kit — commonly inspected and replaced during the same rebuild window as a head service on 2L/2L-T engines.
• Thermostat & Housing Gasket — inexpensive insurance against the overheating that often accompanies head failure in the first place.
• Glow Plugs — diesel-specific; commonly replaced during a head-off rebuild since access is already open.

Common Symptoms That Point to a Cylinder Head Problem

• White smoke from the exhaust, especially on cold start
• Coolant disappearing with no visible external leak
• Milky or discolored oil on the dipstick or filler cap
• Overheating that returns shortly after topping off coolant
• Rough idle or noticeable power loss under load
• Bubbling or pressure in the radiator or overflow tank with the engine running

Why Choose a New AMC Assembled Head Over a Used or Repaired Casting

A cracked or warped 2L/2L-T head is rarely an isolated repair. Overheating that caused the crack has often already stressed the gasket surface, the block deck, and sometimes the water pump and radiator around it. Starting with a new 909158 casting removes the biggest unknown from that equation: a used or welded-repair head carries no guarantee it won't crack again under the same heat cycling and compression load that failed it the first time, and a second failure means paying for labor twice.

Toyota's 2L and 2L-T diesel engines earned their reputation for simplicity and reliability because the components around them have historically been kept in good mechanical condition; a compromised head undermines that fast. Pairing a new head with new head bolts, a fresh gasket set, and correctly set valve clearances is the difference between a rebuild that runs another 100,000+ miles and one that's back on the lift within a year.

If your current head has already cracked, warped, or failed a pressure test, replacing it with a new casting rather than repeatedly machining and re-testing the original is almost always the more economical path once labor, machine shop fees, and the risk of repeat failure are factored in.
