Toyota Diesel 1KZ 1KZ-TE Cylinder Head Replacement Package 11101-69175

Product Overview

Complete professional-grade cylinder head replacement package for 1993-2009 Toyota 1KZ-TE turbo diesel engines. This comprehensive bundle includes everything needed for a complete cylinder head replacement or a major engine rebuild, delivering reliable turbo-diesel operation with precision-engineered OEM and aftermarket components. This complete package eliminates the guesswork of sourcing individual components and ensures compatibility across all parts for Toyota's legendary 1KZ-TE turbo diesel platform.

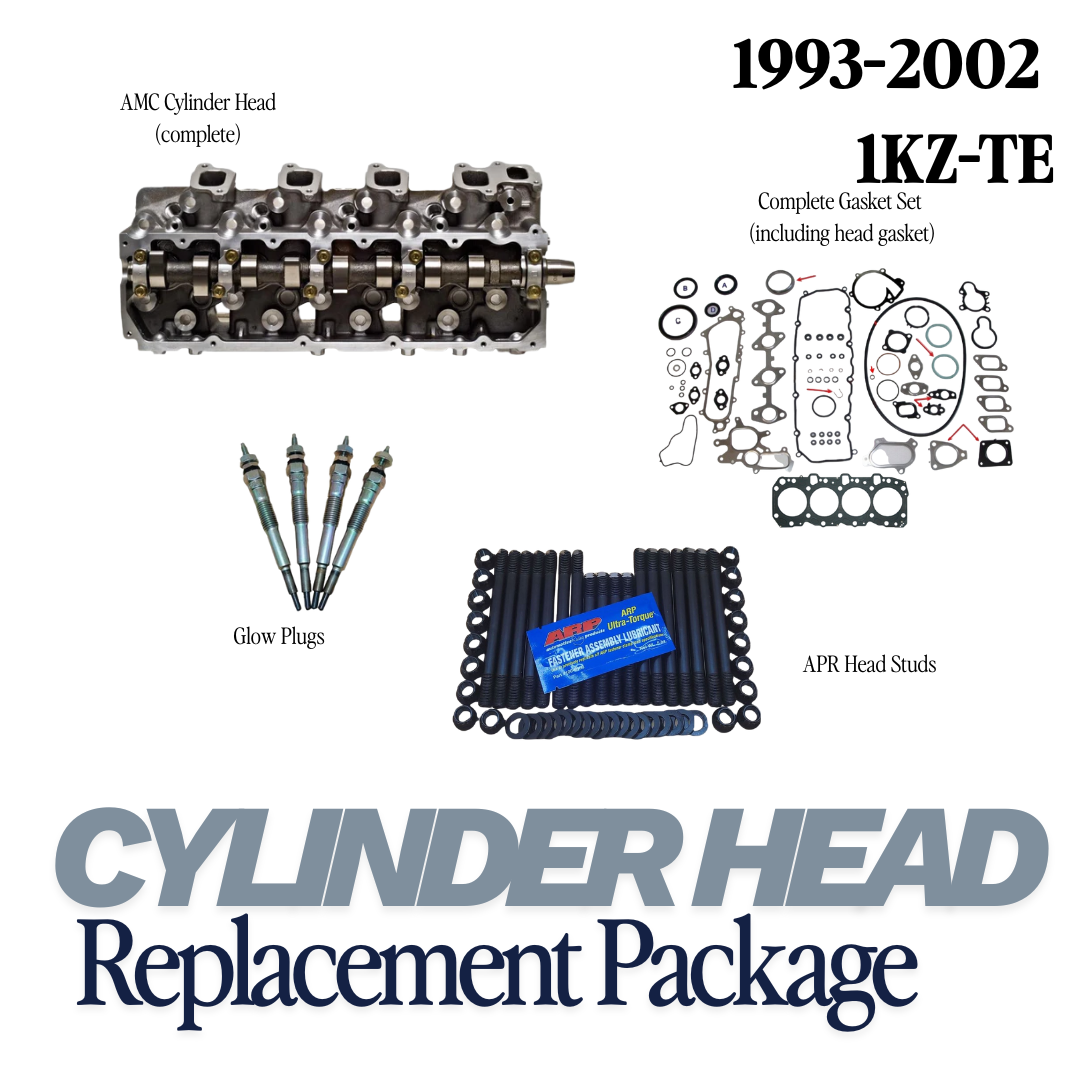

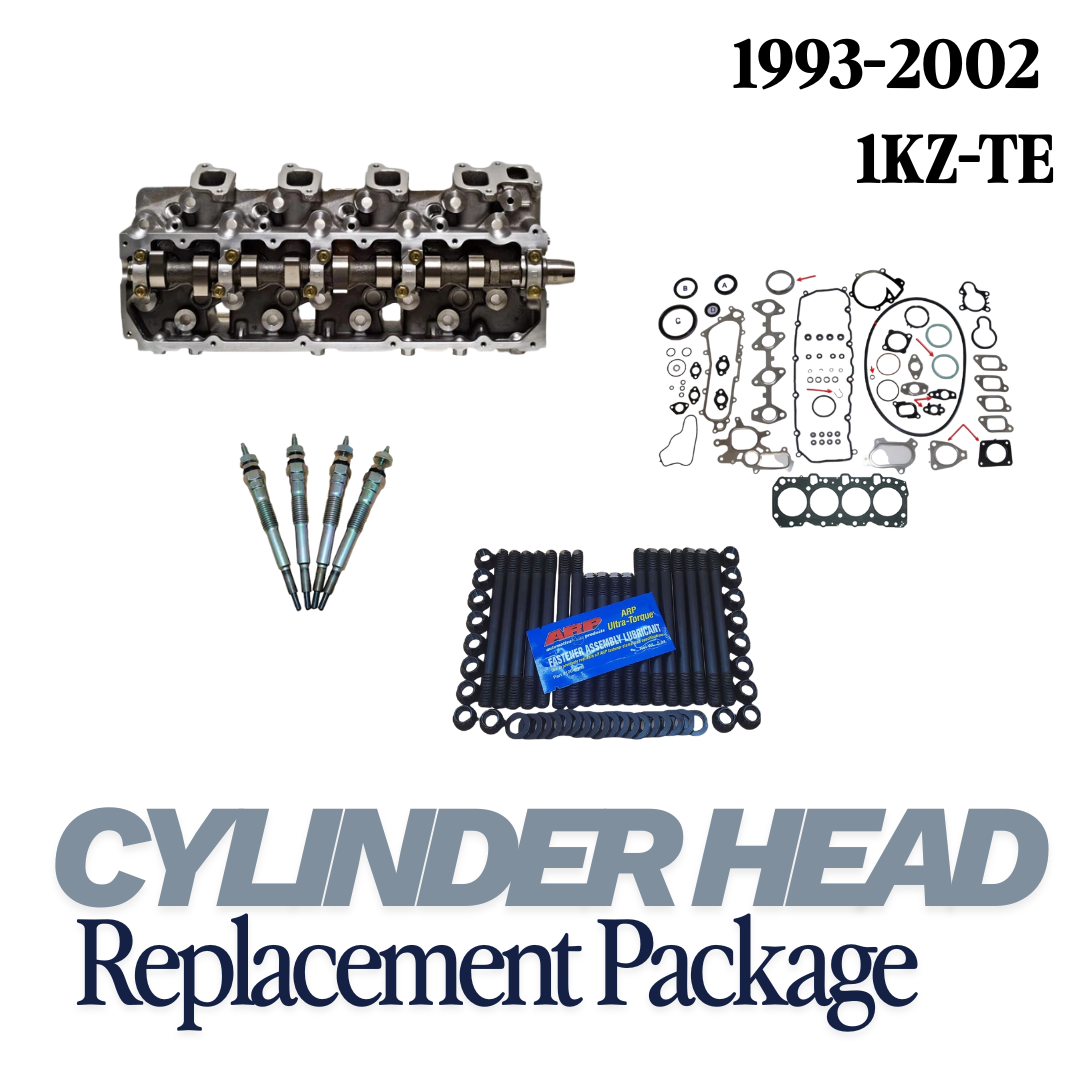

Package Includes Four Essential Components:

• AMC Complete Loaded Cylinder Head (11101-69175) - Pre-assembled with camshaft, valves, springs, guides, seats, and pre-chambers
• Genuine Toyota Glow Plug Set (19850-67030) - Complete set of 4 heater glow plugs for reliable cold starts
• High-Performance Head Stud Set - 18 high-tensile steel studs with hardened washers, 12-point nuts, and installation lube
• Complete Engine Gasket Set - 50+ gaskets and seals, including head gasket, valve cover, oil pan, manifolds, turbo, and all engine sealing components



Key Features & Benefits

• Complete Solution: All essential components for cylinder head replacement in one convenient package
• Pre-Assembled Head: Loaded cylinder head arrives ready to install with camshaft, valves, springs, guides, seats, and pre-chambers
• Superior Clamping: High-tensile head studs provide consistent torque values and superior clamping force over factory bolts
• Genuine Cold Start: OEM-spec glow plugs ensure reliable cold-weather starting and proper combustion chamber preheating
• Complete Sealing: Comprehensive gasket set addresses all engine sealing points, including turbo, EGR, and cooling system
• Professional Grade: Suitable for workshop rebuilds with components meeting or exceeding OEM specifications
• Value Package: Significant savings versus purchasing components individually



Technical Specifications

Package Type: Complete Cylinder Head Replacement Kit
Engine Compatibility: 1KZ-TE 3.0L turbo diesel (2,982cc)
Cylinder Head Material: Cast aluminum alloy construction
Valve Configuration: 8-valve SOHC (Single Overhead Cam)
Head Stud Material: High-tensile steel with hardened washers and 12-point nuts
Glow Plug Quantity: 4 plugs (complete set)
Gasket Kit Contents: 50+ individual gaskets and seals

Package Components Detailed Breakdown

AMC Complete Loaded Cylinder Head (11101-69175):

• Pre-assembled with camshaft installed and properly timed
• All valves, valve springs, valve guides, and valve seats installed
• Pre-chambers installed and properly seated
• Cast aluminum alloy construction for superior heat dissipation
• Ready for professional installation with minimal preparation

2. Genuine Toyota Glow Plug Set (19850-67030):

• Complete set of 4 heater glow plugs
• OEM heat range and fitment specifications
• Essential for cold weather starting and proper diesel combustion
• Direct replacement for worn factory plugs
• Eliminates hard starts, white smoke, and rough idle conditions

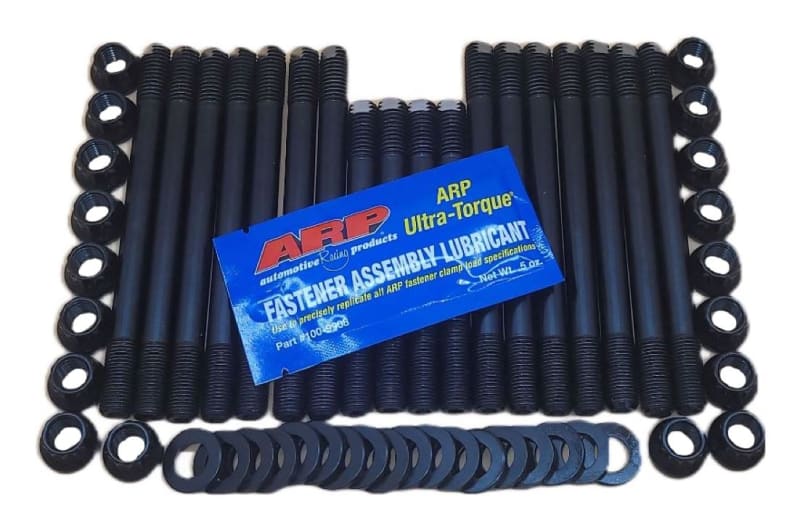

3. High-Performance Head Stud Set:

• 18 high-tensile steel head studs
• 18 hardened washers for even load distribution
• 18 precision 12-point nuts
• Installation lubricant included
• Superior to factory bolts with consistent torque values and reusability
• Prevents head bolt stretch and maintains proper clamping force

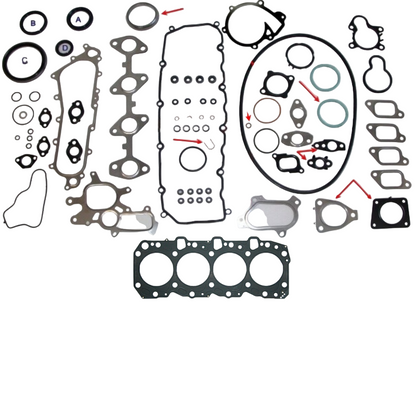

4. Complete Engine Gasket Set (50+ Components):

• Multi-layer composite cylinder head gasket
• Valve cover gasket with integrated spark plug seals
• Oil pan gasket (cork or rubber composite)
• Intake and exhaust manifold gaskets
• Turbocharger mounting gaskets (heat-resistant materials)
• Complete EGR system gaskets (valve and cooler sealing)
• Front and rear crankshaft oil seals
• Complete valve stem seal set (all intake and exhaust valves)
• Water pump and thermostat gaskets
• Various O-rings and auxiliary seals

Fitment

Year Range	Toyota Model	Engine
1993-2002	Land Cruiser 70 Series	1KZ-TE 3.0L turbo diesel
1995-2002	Land Cruiser 90 Series	1KZ-TE 3.0L turbo diesel
1996-2009	Land Cruiser Prado (90, 120 Series)	1KZ-TE 3.0L turbo diesel
1993-2002	4Runner / Hilux Surf	1KZ-TE 3.0L turbo diesel
1993-2005	Hilux	1KZ-TE 3.0L turbo diesel (various markets)
1993-2004	Hiace	1KZ-TE 3.0L turbo diesel
1995-2002	Grand Hiace / Granvia	1KZ-TE 3.0L turbo diesel
2000-2009	Dyna / ToyoAce (select models)	1KZ-TE 3.0L turbo diesel

Important: This package is designed specifically for 1KZ-TE turbo-diesel engines. The cylinder head is designed for 2000+ model applications. Earlier 1KZ-TE engines (1993-1999) may require verification of compatibility with part numbers 11101-69125, 11101-69126, 11101-69127, or 11101-69128. Verify engine code before ordering. Professional machining inspection and installation services are required.

Installation & Maintenance

Installation Difficulty: Expert/Professional
Tools Required: Complete engine rebuild tools, precision torque wrenches, valve grinding equipment, surface plates, precision measuring tools, head stud installation tools
Professional Installation: Mandatory - requires professional machining inspection and expert assembly

Installation Steps Overview:

• Remove the existing cylinder head and inspect the block surface for warpage or damage
• Clean all mating surfaces thoroughly and verify block deck flatness
• Install new gasket set components following proper torque specifications
• Position the new loaded cylinder head and install the head studs with the provided lubricant
• Torque head studs in the appropriate sequence to manufacturer's specifications
• Install new glow plugs with the proper torque specifications
• Replace the timing belt, water pump, and related components during reassembly
• Perform the proper break-in procedure following initial startup



Maintenance Tips:

• Professional inspection of the block mating surface for warpage and cracks is essential before installation.
• Replace the timing belt, water pump, and oil pump during cylinder head service
• Consider turbocharger inspection and service during major engine rebuild
• Use genuine Toyota torque specifications and assembly procedures for all components
• Follow the proper head stud torque sequence and re-torque procedures as specified
• Perform oil and coolant changes after the initial break-in period (500 miles)
• Monitor engine operating temperatures and boost levels during the break-in period



Frequently Asked Questions

Q: What's included in this complete package?
A: This package includes: (1) AMC complete loaded cylinder head assembly with camshaft, valves, springs, guides, seats, and pre-chambers pre-installed, (2) Complete set of 4 genuine Toyota glow plugs, (3) High-performance head stud set with 18 studs, hardened washers, 12-point nuts, and installation lube, and (4) Complete engine gasket set with 50+ gaskets and seals including head gasket, valve cover gasket, oil pan gasket, manifold gaskets, turbo gaskets, EGR gaskets, crankshaft seals, valve stem seals, and all auxiliary sealing components.

Q: Is the cylinder head ready to install, or does it require machine work?
A: The cylinder head comes pre-assembled (loaded) with camshaft, valves, springs, guides, seats, and pre-chambers already installed. However, professional inspection is recommended to verify deck surface flatness and valve seat condition before installation. Most installations can proceed without additional machining if the head arrives in good condition.

Q: Why are head studs better than factory head bolts?
A: Head studs provide superior clamping force and maintain consistent torque values better than factory stretch bolts. Factory bolts are designed for one-time use and can stretch or loosen under high heat and pressure conditions. Head studs are reusable, provide even load distribution, and are essential for turbocharged applications or engines running higher boost levels.

Q: Are these glow plugs compatible with both early and late 1KZ-TE engines?
A: Yes, the genuine Toyota glow plug set (19850-67030) is compatible with all 1KZ-TE turbo diesel engines from 1993-2009. These are direct OEM replacements that meet factory heat range and fitment specifications.

Q: Does the gasket set include everything needed for a complete engine rebuild?
A: This gasket set includes all sealing components for a complete engine rebuild, including head gasket, valve cover gasket, oil pan gasket, manifold gaskets, turbo gaskets, EGR gaskets, crankshaft seals, valve stem seals, water pump gasket, thermostat gasket, and various O-rings. However, hardware components like head studs (included in this package), timing belt, water pump, and oil pump are separate components that should be replaced during rebuild.

Q: What other components should I replace during cylinder head replacement?
A: Professional mechanics recommend replacing the timing belt kit (including tensioner, idler pulleys, and water pump), oil pump, thermostat, coolant hoses, and having the turbocharger inspected or rebuilt during major cylinder head service. This prevents future failures and ensures maximum service life from your rebuild investment.

Additional Components You May Need

• Timing Belt Kit (13568-69085) - Essential replacement during cylinder head service to prevent catastrophic failure
• Water Pump (16100-69356) - Recommended replacement during major engine work
• Oil Pump Assembly - Consider replacement on high-mileage engines during rebuild
• Thermostat and Housing - Replace to ensure proper cooling system operation
• Engine Oil and Coolant - Fresh fluids are essential for adequate break-in and operation



Common Symptoms Requiring Cylinder Head Replacement

• Coolant mixing with engine oil creates a characteristic milky appearance in the oil
• White smoke from the exhaust indicates coolant combustion in the cylinders
• Overheating and rapid coolant loss without visible external leaks
• Loss of compression across one or multiple cylinders
• Excessive pressure buildup in the cooling system (bulging hoses, radiator cap release)
• Rough turbo diesel operation with misfiring or poor performance
• Hard starting or difficult cold-weather starting (glow plug-related)
• Visible cracks or warpage on the existing cylinder head during inspection
• Failed head gasket from overheating or improper previous installation



Why Choose This Complete 1KZ-TE Cylinder Head Package

Legendary Turbo Diesel Platform: The 1KZ-TE is one of Toyota's most respected turbo diesel engines, renowned for exceptional reliability and performance in demanding applications worldwide. Powering countless Land Cruisers, Prados, Hilux Surfs, and commercial vehicles through extreme conditions, this engine has earned legendary status in the global 4x4 and commercial vehicle communities.

Known for its robust construction and ability to handle significant power increases, the 1KZ-TE delivers excellent torque characteristics and fuel efficiency. However, this engine is also known for potential head gasket issues, particularly when overheated or improperly maintained. When cylinder head problems occur, proper repair with genuine OEM and high-performance aftermarket components is critical for long-term reliability.

Complete Solution Advantage: This comprehensive package eliminates the guesswork and sourcing challenges of cylinder head replacement. By bundling the pre-assembled loaded cylinder head, high-performance head studs, genuine glow plugs, and complete gasket set, you ensure compatibility across all components and avoid the risk of missing critical parts during installation.

Superior Component Quality: The AMC-loaded cylinder head arrives pre-assembled with camshaft, valves, springs, guides, seats, and pre-chambers already installed, saving significant machine shop time and labor costs. The high-tensile head studs provide superior clamping force over factory bolts, essential for maintaining proper head gasket sealing under turbo diesel operating conditions. Genuine Toyota glow plugs ensure reliable cold starting, while the comprehensive gasket set addresses all engine sealing points including turbo, EGR, and cooling system components.

Professional Results: This package is designed for professional engine rebuilders who demand quality components and complete solutions. Professional installation with proper torque procedures, surface preparation, and break-in procedures will ensure maximum service life from Toyota's legendary turbo-diesel platform.

Cylinder head replacement represents a significant investment in your vehicle's longevity. Using a complete package with matched components ensures proper sealing, reduces the risk of comeback failures, and protects your investment through comprehensive engine restoration. The combination of a pre-assembled cylinder head, superior fastening hardware, proper sealing components, and essential cold-start components delivers professional results that will provide years of reliable turbo-diesel operation.

Don't compromise on critical engine components - invest in this complete 1KZ-TE cylinder head replacement package for professional results and long-term reliability. Your Toyota diesel deserves the best components available to restore its legendary performance and durability.
