Toyota Diesel 2L / 2LT 1997-2001 Cylinder Head Replacement Package

Product Overview

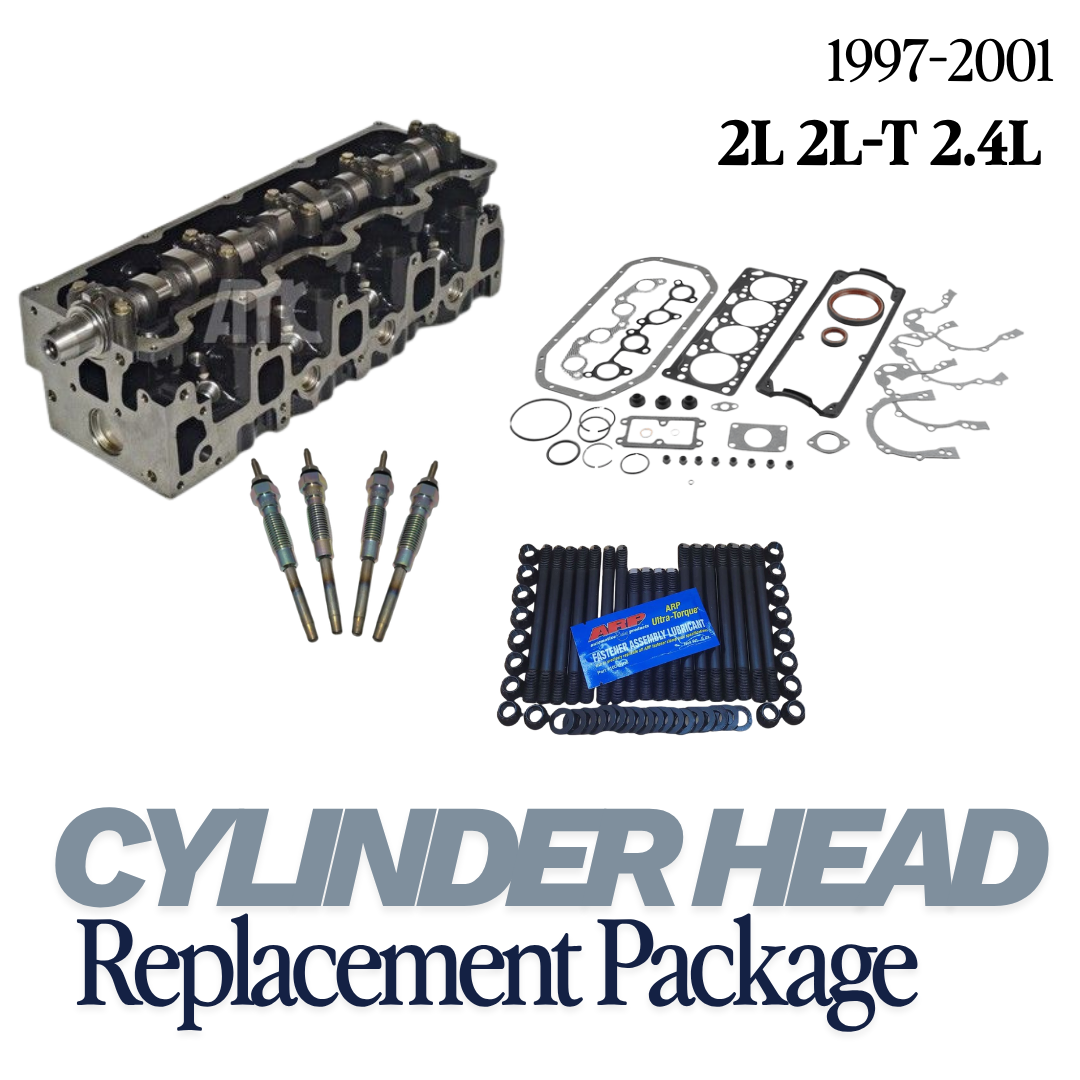

This package bundles the four parts you actually need to take a cracked, warped, or gasket-blown 2L / 2L-T 2.4L diesel head off and put a reliable one back on in one order instead of four separate sourcing trips. It's built around the new AMC complete cylinder head (the direct equivalent of Toyota OEM 11101-54170) for 1997-2001 Hilux and HiAce, paired with the matched OEM head gasket and engine overhaul gasket kit, a full ARP head stud set to replace Toyota's single-use factory TTY bolts, and a fresh set of four OEM glow plugs that are already exposed and easy to replace while the head is off.

Toyota 2L-T owners researching this job on forums consistently land on the same root cause for repeat head failures: factory torque-to-yield bolts lose clamping force after one torque cycle, and reusing them, or reinstalling them against a gasket surface that was never checked for flatness.  This is why a "fixed" head cracks or blows its gasket again within a season. This package is assembled to break that cycle: a new, uncracked casting; reusable studs instead of one-time bolts; gaskets sized to the correct revision; and glow plugs replaced while labor is already sunk into opening the engine.

What's Included

Component	OEM / Reference Part Number	Qty

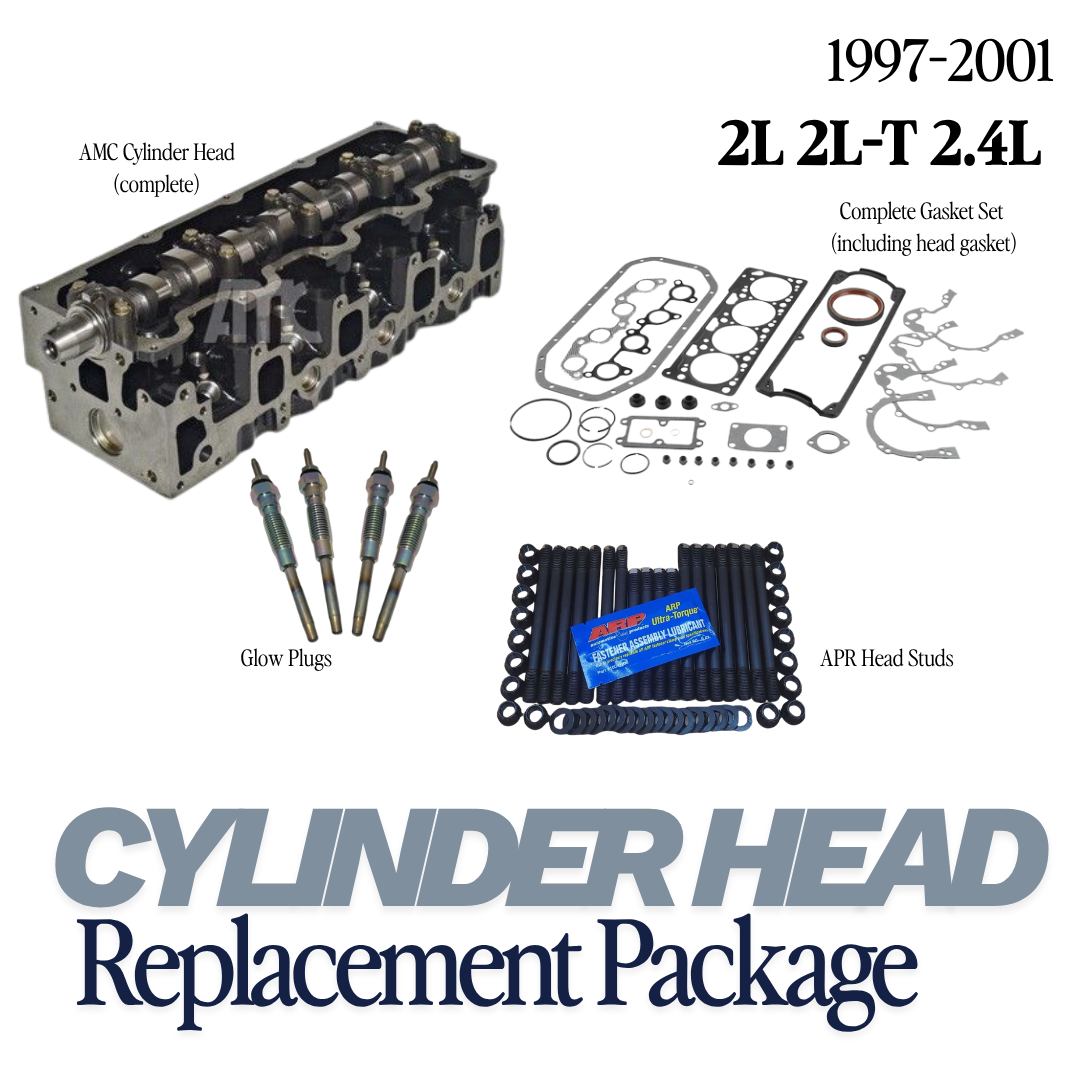

New AMC Complete Cylinder Head (assembled, with valves & valve springs)	11101-54170	1
Head Gasket & Engine Overhaul Gasket Kit	11115-54084 (F0) head gasket + overhaul kit	1 set
ARP Head Stud Set (replaces OEM TTY head bolts)	ARP2000 alloy studs — replaces Toyota 90910-02080 / -02081 / -02112 bolt applications	1 set (18 studs, washers & nuts)
OEM Glow Plug Set	19850-54090	4

Note: This head is a cast-iron, assembled casting. The ARP stud set is sold elsewhere on our site across several Toyota diesel engine families (2L/2L-T, 2L-TE, 3L, 5L, 1KZ-TE); the thread spec and 18-stud bolt pattern are shared across that family, but if your block has ever been machined or re-tapped outside factory spec, confirm stud length and thread fit before final torque. Toyota's published OEM bolt numbers span multiple engines in that same family — if you need the exact bolt number this stud set supersedes for your specific 2L/2L-T application, email us your engine code, and we'll confirm before you order.

Key Features & Benefits

• One sourcing event, not four: Head, gaskets, studs, and glow plugs arrive together, so a head-off job doesn't stall waiting on a second or third supplier.
• Breaks the repeat-failure cycle: New casting plus reusable ARP studs removes the two most common causes of a 2L/2L-T head needing to come off twice.
• Matched gasket revision: The head gasket and overhaul kit are sourced and sold together, so you're not guessing whether a standalone gasket listing matches your overhaul kit's revision.
• Clamping force that survives heat cycling: ARP2000 studs (220,000 PSI tensile) hold torque through repeated thermal cycles in a way Toyota's factory torque-to-yield bolts cannot.
• Cold starts handled while you're already in there: Glow plugs are easy to reach with the head off and cheap relative to a second teardown — this package replaces all four rather than leaving them for a future repair visit.



Technical Specifications

Part Type: Multi-component cylinder head replacement package (head, gasket set, head studs, glow plugs)
Engine Compatibility: Toyota 2L 2.4L (2,446cc) SOHC naturally aspirated diesel / 2L-T 2.4L SOHC turbo diesel
Head Material: Cast iron head and valve seats, SOHC, 8 valves (matches Toyota factory spec)
Bore x Stroke: 92mm x 92mm
Compression Ratio: approx. 22.3:1 (2L naturally aspirated) / approx. 20.0:1 (2L-T turbo)
Head Stud Material: ARP2000 proprietary alloy steel, 220,000 PSI tensile strength, black oxide finish — 18 studs, parallel-ground washers, 12-point nuts, ARP Ultra-Torque lubricant included
Glow Plug Specs: 11V (operates on 12V systems), M10 x 1.25mm thread, 90.4mm overall length, approx. 7-second heat-up, 10-18 Nm (7-13 ft-lbs) tightening torque
Head Gasket Material: Composite construction, 0.527kg (1.16 lbs), F0 revision

Fitment

Year	Model	Engine
1997-2001	Hilux	2L 2.4L diesel / 2L-T 2.4L turbo diesel
1997-2001	HiAce (H100 series)	2L 2.4L diesel / 2L-T 2.4L turbo diesel
1997-2001	Dyna 100 / 150	2L 2.4L diesel (select models)

Important — verify before ordering: Toyota reused the 2L/2L-T engine code across multiple cylinder head castings and nearly two decades of production. This package is built around head casting 11101-54170, correct for the 1997-2001 window above — it is not interchangeable with the earlier 11101-54111, -54120, -54050, or -54121 castings, and it does not fit the fuel-injected 2L-TE, the 3L (2.8L), or the 5L (2.986L). The ARP stud set's own standalone listing shows a confirmed year range of 1980-1997 for 2L/2L-T applications; the thread spec and bolt pattern are shared across the engine family, but since our records don't show an independently confirmed 1998-2001 data point for this specific stud set, email us your engine code before ordering if your truck falls in that later window, and we'll confirm fit. Confirm your exact engine code and chassis code against your VIN plate or a current Toyota Parts Online lookup before ordering. If you're unsure, email a photo of your VIN plate and engine code to sales@northwesttoysllc.com, and we'll confirm fitment before you order.

Installation & Maintenance

Installation Difficulty: Expert / Professional
Tools Required: Torque wrench (minimum 90 ft-lb capacity), 12-point deep socket for ARP nuts, thread chaser (not a tap) for the block deck, feeler gauges and shims for valve clearance, straightedge for head/deck flatness verification (max warpage per Toyota spec), engine hoist or support, 12mm socket for glow plugs, radiator pressure tester for post-install leak check
Professional Installation: Strongly recommended. This job combines precise ARP stud torque sequencing, valve clearance adjustment, and head-gasket surface verification in one service — mistakes in any one of the three undo the benefit of the other two.

Maintenance Tips:

• Chase the block's stud threads before installation — never re-tap them — and use only ARP's Ultra-Torque lubricant on the studs, not engine oil or anti-seize.
• Torque ARP nuts in staged passes (commonly 30/60/90 ft-lbs in Toyota's factory sequence) and confirm the final spec against ARP's current installation instructions before exceeding 100 ft-lbs.
• Have the head surface-checked for flatness before installation, even on a new casting — shipping and handling can occasionally introduce minor warp.
• Install glow plugs last, snug by hand or with a torque wrench to 10-18 Nm — never with an impact wrench, which can crack the ceramic element or strip the thread.
• Bleed the cooling system fully after reassembly and pressure-test it; trapped air and a slow leak are two of the most common causes of a comeback overheating complaint on these engines.



Frequently Asked Questions

Q: What exactly comes in this package?
A: You receive one new AMC complete cylinder head equivalent to Toyota OEM 11101-54170, one head gasket and engine overhaul gasket kit (OEM 11115-54084 head gasket plus overhaul kit), one 18-stud ARP head stud set with nuts, washers, and assembly lubricant, and one set of four OEM 19850-54090 glow plugs.

Q: Why does this package use ARP studs instead of new OEM head bolts?
A: Toyota's factory 2L/2L-T head bolts are torque-to-yield (TTY) fasteners designed for a single installation — they stretch permanently when torqued and lose clamping force if reused, which is a well-documented contributor to repeat head gasket failure on this engine family. ARP2000 studs are reusable and hold clamping force through repeated heat cycling, which is why this package substitutes them for the factory bolt.

Q: Will this package fit my 1997-2001 Hilux or HiAce without further checking?
A: It's built for the 2L/2L-T as produced in that window, using head casting 11101-54170. Toyota revised this head casting several times across the broader 2L/2L-T production run, so if your truck's head has previously been swapped to a different casting, or you're not certain whether you have the 2L or 2L-T variant, confirm your engine code against your VIN plate before ordering.

Q: My truck is a 2L-T but not a Hilux or HiAce — will this still work?
A: Possibly, but it isn't confirmed. This package's gasket and head numbers are verified for Hilux, HiAce, and Dyna 100/150 in the 1997-2001 window. Other 2L/2L-T applications may use a different head casting or gasket revision. Email your VIN or engine code, and we'll confirm before you order.

Q: How difficult is this installation, realistically?
A: Expert-level. This isn't a bolt-on part swap. It involves removing and reinstalling a diesel cylinder head with correct torque sequencing on both the ARP studs and the surrounding hardware, valve clearance adjustment, and a flatness check on the mating surfaces. Forum consensus among 2L-T owners who've done this job themselves consistently recommends either prior diesel engine rebuild experience or professional installation.

Q: Why are glow plugs included in a cylinder head package?
A: They're already exposed once the head is off, and they're inexpensive relative to a second teardown later. Replacing all four while the head is already open avoids a future repair visit for a part that fails independently of the head.
