Toyota Diesel 2L 2L-T 2L-TE Cylinder Head Replacement Package

This cylinder head has a less frequent production schedule.  Availability fluctuates regularly; email sales@northwesttoysllc.com for the most up-to-date information.

Product Overview

Complete OEM cylinder head replacement package designed for 1984-2006 Toyota Hilux, Hiace, Land Cruiser, and 4Runner models with 2L, 2L-T, and 2L-TE turbo diesel engines. This comprehensive rebuild solution includes everything needed for professional cylinder head service: an AMC improved second-generation cylinder head, a complete engine gasket set, a set of ARP2000 alloy head studs, and a glow plug set. Unlike packages built around factory torque-to-yield head bolts, this kit pairs the improved AMC casting with ARP2000 fasteners rated at 220,000 PSI tensile strength.  The combination that actually addresses both root causes of recurring head gasket failure on the 2L, 2L-T, and 2L-TE diesel platforms.

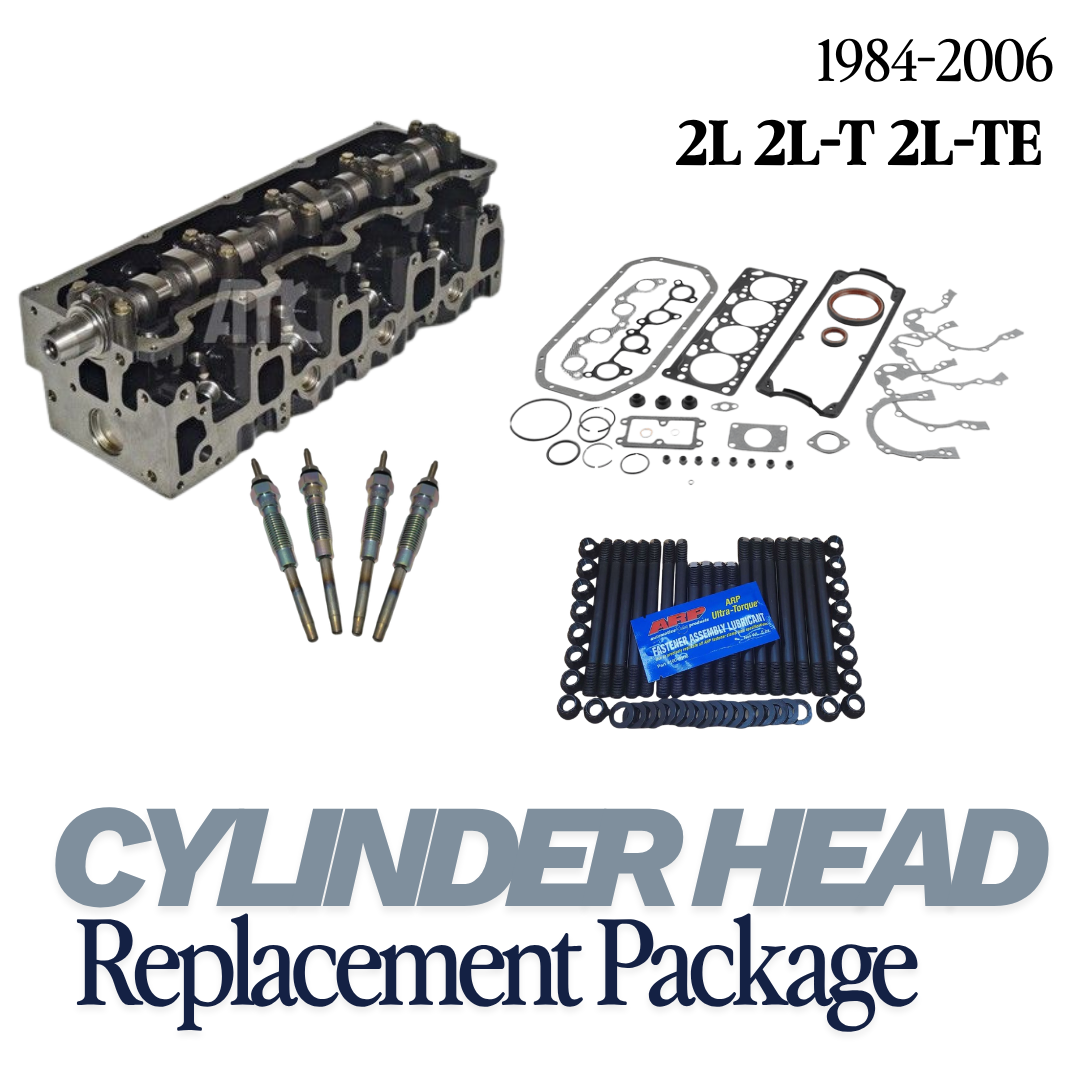

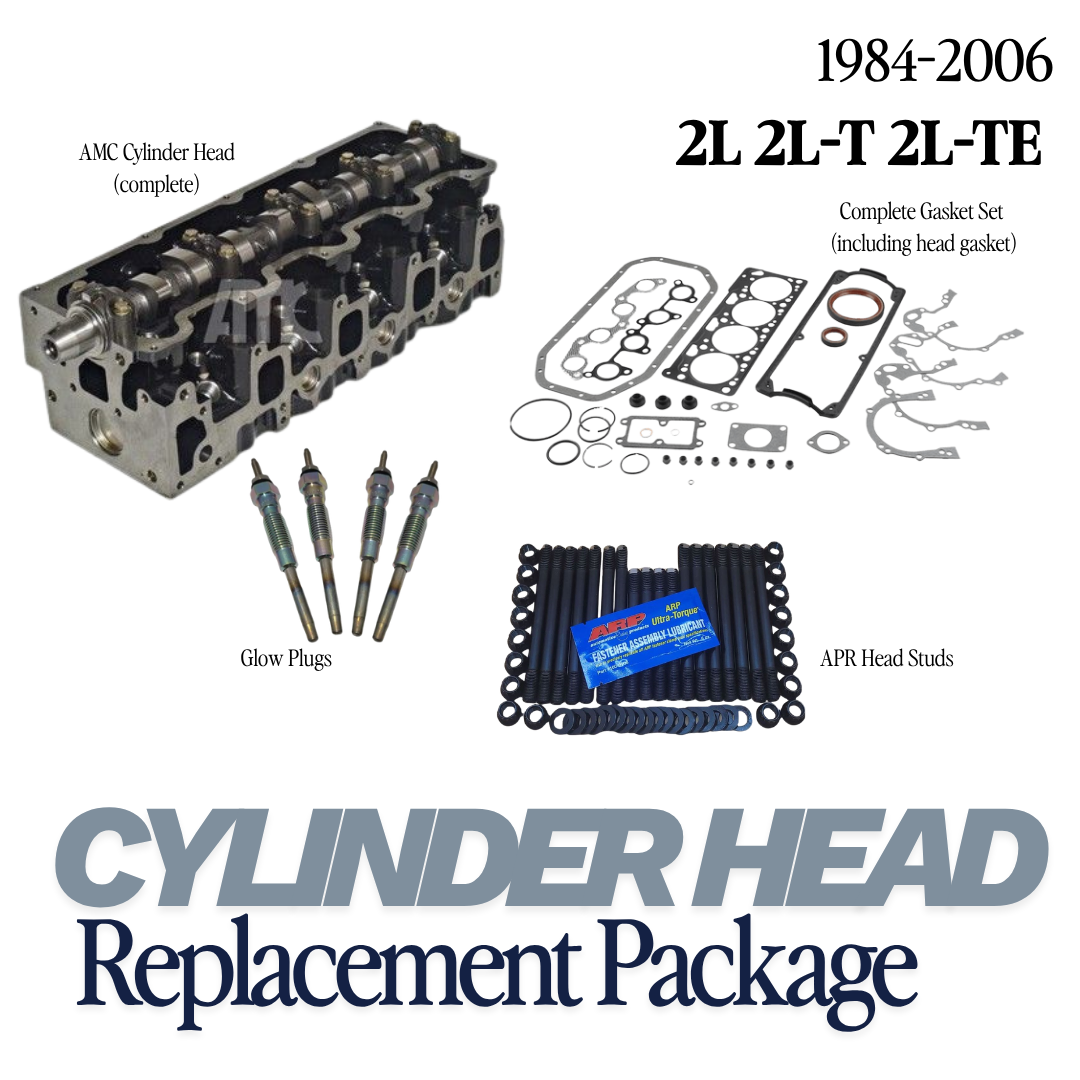

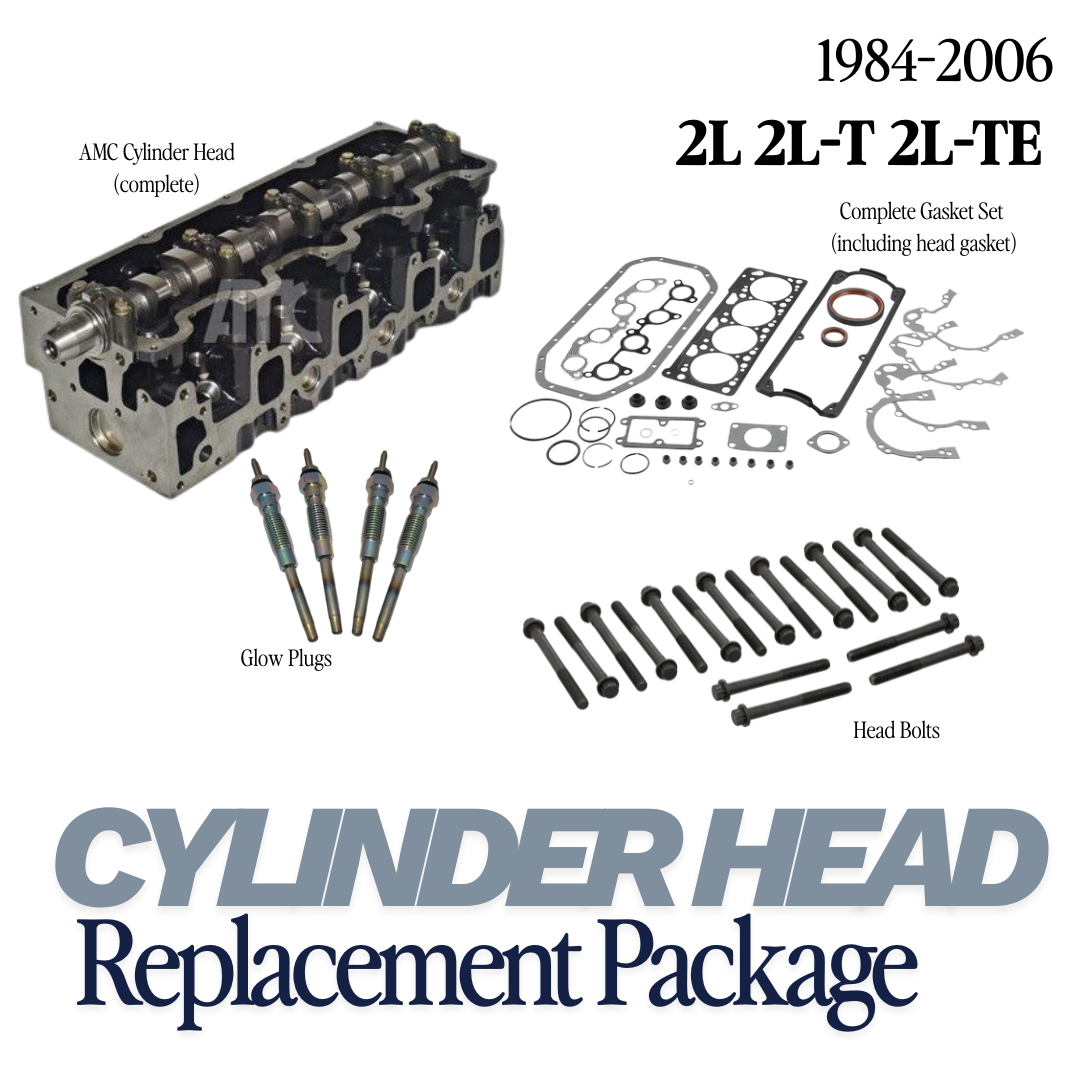

Package Includes:

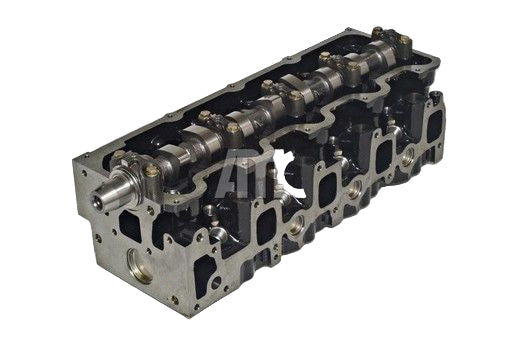

• AMC Cylinder Head Assembly: Improved 2nd generation design with enhanced cooling channels

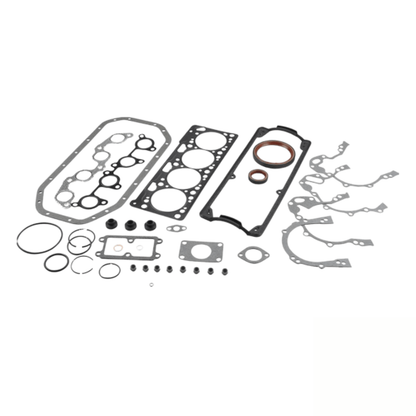

• Complete Engine Gasket Set: Full upper and lower gasket kit with head gasket

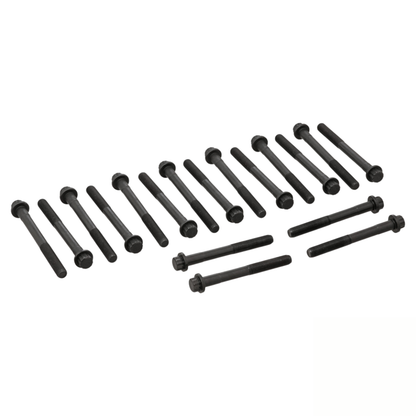

• ARP Head Stud Set: ARP2000 alloy studs rated at 220,000 PSI tensile strength, parallel-ground hardened washers, and ARP Ultra-Torque assembly lubricant

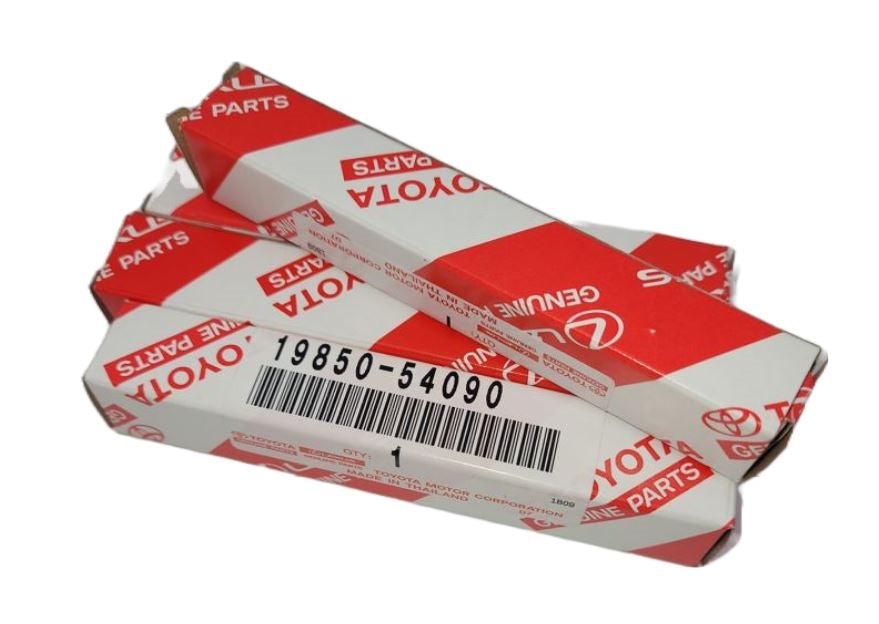

• Glow Plug Set: Complete set of 4 OEM glow plugs for reliable cold starts



Key Features & Benefits

• Eliminates Both Root Causes of Recurring Head Gasket Failure: The AMC head fixes the cooling design deficiency of the original head. The ARP2000 studs deliver clamping force that the factory bolts physically cannot match, addressing the fastener side of the failure equation at the same time
• ARP2000 Alloy at 220,000 PSI: ARP's proprietary heat-treated alloy is centerless ground for near-perfect concentricity and thread rolled after heat treatment for superior fatigue strength. Significantly stronger and more consistent than factory TTY fasteners
• Reusable Studs Across Multiple Rebuilds: ARP head studs are reusable (provided they have not been overstretched), unlike OEM TTY bolts that must be discarded after every head removal, regardless of mileage or condition
• Complete Solution, Single Supplier: All essential components in one package. No need to source the head, gaskets, fasteners, and glow plugs from multiple suppliers with potential compatibility gaps



Technical Specifications

Part Type: Complete Cylinder Head Replacement Package
Engine Compatibility: 2L, 2L-T, 2L-TE, 2L-T II 2.4L turbo diesel
Cylinder Head Material: Cast iron construction with improved cooling channels
Valve Configuration: 8-valve SOHC (Single Overhead Cam)
Displacement: 2,446cc (2.4L)
Compression Ratio: 20:1 to 21:1 (varies by application)
Bore x Stroke: 92.0mm x 92.0mm

Fitment

Year Range	Toyota Model	Engine Options
1984-2006	Hilux / Pickup	2L, 2L-T, 2L-TE 2.4L diesel
1984-2012	Hiace Van / Bus	2L, 2L-T, 2L-TE 2.4L diesel
1984-1996	Land Cruiser 70 Series	2L-T, 2L-TE 2.4L turbo diesel
1989-1995	4Runner / Hilux Surf	2L-T, 2L-TE 2.4L turbo diesel
1995-2001	Dyna 100 / 150	2L, 2L-T 2.4L diesel
1984-2002	Land Cruiser Prado	2L-T, 2L-TE 2.4L turbo diesel
Various	Cressida, Crown, Mark II, Chaser	2L, 2L-T 2.4L diesel (select markets)

Important: This package is designed specifically for 2L-T and 2L-TE turbo-diesel engines. The AMC cylinder head (11101-54121) represents the improved second-generation design with enhanced cooling channels. Verify engine code before ordering. Professional machining, valve seat work, and expert installation services are mandatory.

Installation & Maintenance

Installation Difficulty: Expert/Professional
Tools Required: Complete engine rebuild tools, torque wrench, 12-point deep socket (for ARP stud nuts), stud installation driver or stud setter tool, thread chaser set, valve grinding equipment, surface plate and feeler gauges, precision measuring tools, timing belt tools, 12mm socket for glow plugs, and anti-seize compound.

The following sequence covers the installation of all four components included in this package in the correct order. Steps assume the old cylinder head has already been removed and the engine block deck is accessible.

Phase 1 — Block and Head Preparation (before any parts are installed)

• Clean the block deck surface: Remove all old gasket material from the block deck using a scraper and solvent. The surface must be completely clean and free of debris before any measurement or gasket placement.
• Check block deck flatness: Use a precision straight-edge and feeler gauges to check the block deck for warpage. Toyota's service limit is 0.05mm across any 100mm span. If out of tolerance, the block deck must be machined before proceeding.
• Chase all block head bolt threads: Run a thread chaser (not a tap — a tap removes material and weakens threads) through all 18 head bolt bores. Even on a freshly cleaned block, debris and residual thread locker in the bores will produce false torque readings during stud installation. Blow out each bore with compressed air after chasing.
• Inspect and prepare the AMC cylinder head: Check the head deck surface for flatness using a straight-edge and feeler gauges. Toyota's service limit is 0.05mm. Have the head surface machined if needed. Inspect valve seats, valve stems, and valve guides; recondition or replace as required before assembly.
• Adjust valve clearances: Set valve clearances using shims to Toyota specifications before installing the head on the engine. The 2L-series uses direct-tappet actuation; clearances cannot be adjusted with the head bolted down without removing the camshaft.

Phase 2 — ARP Head Studs (installed into the block before the head goes on)

• Install all 18 ARP studs hand-tight into the block: Thread each stud into the block by hand or with a stud setter tool. Do not use an impact wrench or apply torque beyond hand-tightening into the block threads. The cast iron block threads provide full engagement depth at hand-tight; over-torquing the stud into the block does not increase clamping force and risks galling or damaging block threads.
• Set stud height — back each stud out until the tip is flush with the top face of the installation nut: After hand-tightening, back each stud out slightly until the stud tip sits flush with the top face of an installation nut placed on the stud (before the head is lowered). This is the correct height for ARP stud installation. With the head and washer fitted, the stud will protrude above the nut by the correct amount for full thread engagement. This height also ensures the nut applies only vertical tensile load when torqued, not torsional stress, which produces accurate, consistent clamping force across all 18 positions.

Phase 3 — Complete Gasket Set (installed as the head is lowered onto the block)

• Install the head gasket dry onto the block deck: Position the head gasket from the complete gasket set over the ARP studs onto the block deck. Do not use gasket sealant on the head gasket mating surfaces.  The gasket is designed to seal on clean, flat metal surfaces without sealant. Confirm the gasket is oriented correctly.
• Lower the AMC cylinder head onto the studs: Carefully guide the head down over all 18 studs. The studs will precisely align the head and gasket. Seat the head fully onto the gasket without lateral movement.
• Install ARP hardened washers and 12-point nuts: Place one parallel-ground hardened washer (from the ARP kit) over each stud, then thread each 12-point nut on finger-tight. Do not begin torquing until all 18 nuts are in place.





Phase 4 — Torque the ARP Stud Nuts

• Apply ARP Ultra-Torque lubricant (included) to all contact surfaces: Before torquing, apply ARP Ultra-Torque lubricant to the stud threads above the head, both faces of each hardened washer, and the bearing face of each 12-point nut. Do not substitute motor oil, anti-seize, or any other lubricant. ARP's torque specifications are calibrated specifically for Ultra-Torque. Using a different lubricant changes the friction coefficient, resulting in an incorrect clamping force even if the torque reading is correct.
• Torque in three passes following the factory Toyota cylinder head sequence: Using a calibrated torque wrench and a 12-point deep socket, torque all 18 nuts in the tightening sequence (center outward, alternating sides).
  • Pass 1: 30 ft-lbs. Pass 2: 60 ft-lbs. Pass 3: 90 ft-lbs final torque. Do not exceed 100 ft-lbs. Do not use Toyota's OEM TTY angle-torque specification — the angle-torque procedure (78 Nm + 90° + 90°) applies only to the factory TTY bolts and must not be used with ARP studs.

Phase 5 — Complete Gasket Set (remaining gaskets installed during engine reassembly)

• Install the valve cover gasket: Use the valve cover gasket from the complete gasket set when refitting the valve cover. Clean the valve cover mating surface thoroughly before installation. Apply sealant only at the specified corners of the camshaft end seals.
• Install all remaining gaskets and seals from the gasket set: The complete gasket set includes all ancillary gaskets required for full reassembly — exhaust manifold gasket, inlet manifold gasket, turbocharger gaskets (2L-T and 2L-TE), water outlet gaskets, and associated seals. Install each in the appropriate location during reassembly. Do not reuse any old gaskets; all sealing surfaces have been exposed, and old gaskets are single-use.

Phase 6 — Glow Plugs (installed after head and valve cover are fitted)

• Install the 4 OEM glow plugs: Apply a thin coat of anti-seize compound to the threads of each glow plug before installation. Thread each plug in by hand to confirm correct engagement, then torque to 10–18 Nm (7–13 ft-lbs) using a 12mm socket. Do not over-torque.  Glow-plug threads in cast-iron heads are easily damaged. Reconnect the glow plug wiring harness and confirm continuity at each plug with a multimeter before starting the engine.

Post-Installation — Break-In and Verification

• Fill the cooling system with fresh coolant, bleed all air from the system, and perform a coolant pressure test to 100 kPa (14.5 PSI) before starting the engine
• Start the engine and allow it to reach full operating temperature, then return to idle. Inspect for coolant leaks, oil leaks at the valve cover, and exhaust leaks at manifold gaskets
• Check oil condition and coolant condition at 500 km / 300 miles after the rebuild to confirm no coolant-oil mixing before returning the vehicle to full-load operation
• ARP studs do not require re-torquing after heat cycles when installed with the correct Ultra-Torque lubricant and torqued to specification

Frequently Asked Questions

Q: Why is the AMC 11101-54121 cylinder head better than the original 11101-54120?
A: The AMC 11101-54121 is the improved second-generation design that fixes the fundamental cooling system issues found in the earlier 11101-54120. The original 11101-54120 was prone to cracking under high temperatures due to steam buildup between the intake and exhaust valves. The 11101-54121 features improved cooling channels that eliminate this problem, making it the preferred choice for engine rebuilds.

Q: Does this package include everything I need for cylinder head replacement?
A: This package includes all the essential components for cylinder head replacement: cylinder head assembly, complete gasket set (upper, lower, and head gasket), new head studs, and glow plugs. You will still need to replace the timing belt, water pump, and other wear items separately. Professional machining and installation services are also required.

Q: Can I reuse my old head bolts to save money?
A: Absolutely not. The head bolts included in this package are torque-to-yield, and they stretch during installation. Reusing old head bolts will result in improper clamping force, leading to head gasket failure, coolant leaks, and potentially catastrophic engine damage. Always use new head bolts when servicing the cylinder head.

Q: Will this work with both naturally aspirated 2L and turbocharged 2L-T engines?
A: Yes, this package is compatible with 2L naturally aspirated, 2L-T turbocharged, and 2L-TE electronically controlled turbocharged engines. The main differences between these variants lie in compression ratios and associated components, such as injection pumps and turbochargers.

Q: How long will this cylinder head last after proper installation?
A: With professional installation, proper torque procedures, and regular maintenance, the improved AMC 11101-54121 cylinder head can provide 200,000+ kilometers of reliable service. Many vehicles with second-generation cylinder heads have been operating for over 12 years without issues when properly maintained.

Q: Why does this package use ARP head studs instead of OEM head bolts?
A: OEM Toyota head bolts on the 2L-series engines are torque-to-yield (TTY) fasteners, and they stretch plastically during installation and must be discarded after a single use. More critically, TTY bolts deliver lower clamping force than ARP2000 alloy studs rated at 220,000 PSI tensile strength. Insufficient clamping force is the second root cause of recurring head gasket failure on the 2L platform (the first being the original 11101-54120 head's cooling design). By pairing the improved AMC head casting with ARP2000 studs, this package addresses both failure modes at once. ARP studs also produce more accurate, consistent torque loading across all 18 positions because the stud body does not rotate during torquing, only the nut turns, eliminating torsional stress from the clamping equation.



Related Toyota Parts You May Need

• Timing Belt Kit - Must be replaced during cylinder head service for complete engine reliability.
• Water Pump Assembly - Recommended replacement during major engine service to prevent future failures
• Thermostat - Essential for proper cooling system operation and engine temperature control
• Valve Cover Gasket - Replace to prevent oil leaks after head installation
• Turbocharger Gasket Set - Inspect and service the turbo during a major engine rebuild
• Injector Nozzles - Consider inspection and replacement during cylinder head service



Common Symptoms Indicating Need for Cylinder Head Replacement

• Coolant mixing with engine oil creates a characteristic milky appearance on the dipstick
• White smoke from the exhaust indicates coolant entering the combustion chambers
• Engine overheating and rapid coolant loss without visible external leaks
• Loss of compression and rough diesel operation with challenging starting conditions
• Excessive pressure buildup in the cooling system is causing the radiator cap to release
• Visible cracks in cylinder head between intake and exhaust valve seats (common on 11101-54120)
• Poor cold-start performance indicates failed glow plugs or cylinder head issues



Why Choose This Complete Cylinder Head Replacement Package

Legendary Toyota Diesel Platform: The 2L family of engines represents Toyota's most widespread diesel powerplant, found in millions of vehicles worldwide from the early 1980s through the 2000s. These engines powered countless Hilux pickups, Hiace vans, Land Cruisers, and other commercial vehicles through extreme conditions across six continents.

The 2L-T turbocharged variant gained particular renown for its robust construction and ability to handle substantial workloads in commercial, agricultural, and off-road applications. However, these engines are known for cooling system challenges related to the original 11101-54120 cylinder head design, making proper cylinder head service with the improved 11101-54121 design absolutely critical for long-term reliability.

The AMC 11101-54121 Advantage: This package includes the improved second-generation AMC cylinder head that addresses the fundamental cooling issues found in earlier heads. The enhanced cooling channel design eliminates steam buildup between the intake and exhaust valves, which caused cracking under high-temperature operating conditions. AMC castings are internationally recognized for their superior metallurgy, which resists heat stress and provides long-term durability.

The direct tappet valvetrain design in this generation eliminates rocker arms, reducing complexity and improving valve control. Valve clearances are adjusted using shims, which provide more precise power and better long-term stability compared to earlier rocker arm designs.

Complete Package Benefits: This bundled solution eliminates the hassle and potential compatibility issues of sourcing components from multiple suppliers. Every part in this package is specifically selected to work together for optimal performance and reliability. The complete gasket set ensures proper sealing at all critical junctions, new torque-to-yield head bolts provide correct clamping force, and OEM glow plugs restore reliable cold-start performance.

Professional Quality, Proven Results: Many second-generation cylinder heads in service across Europe, Australia, and other markets have provided over 200,000 kilometers of reliable operation when properly installed and maintained. The improved cooling design, combined with regular maintenance like servicing the viscous clutch fan and upgrading the thermostat, ensures these engines continue to deliver the legendary Toyota diesel reliability they're known for.

Don't compromise on this critical rebuild with inferior aftermarket alternatives or incomplete component sets. This comprehensive package delivers everything needed for professional cylinder head service at a competitive bundled price. When installed adequately following Toyota specifications, this package will restore your 2L diesel engine to peak performance and reliability for years of continued service.

Important Installation Note: Due to the complexity of cylinder head replacement and the critical nature of proper torque procedures, surface preparation, and valve work, this service should be performed by qualified professionals with experience in diesel engines. Improper installation can result in head gasket failure, coolant leaks, and severe engine damage. Always follow Toyota's official torque specifications and tightening sequences.

Invest in genuine Toyota OEM quality components and the improved AMC 11101-54121 cylinder head design. Whether you're rebuilding a hardworking Hilux, restoring a classic Land Cruiser, or maintaining a commercial Hiace, this complete cylinder head replacement package provides the foundation for reliable diesel operation for hundreds of thousands of kilometers to come.
