Toyota Diesel AMC 1KZ 1KZ-TE Camshaft Hilux HiAce Surf Land Cruiser Prado 13501-67010

Product Overview

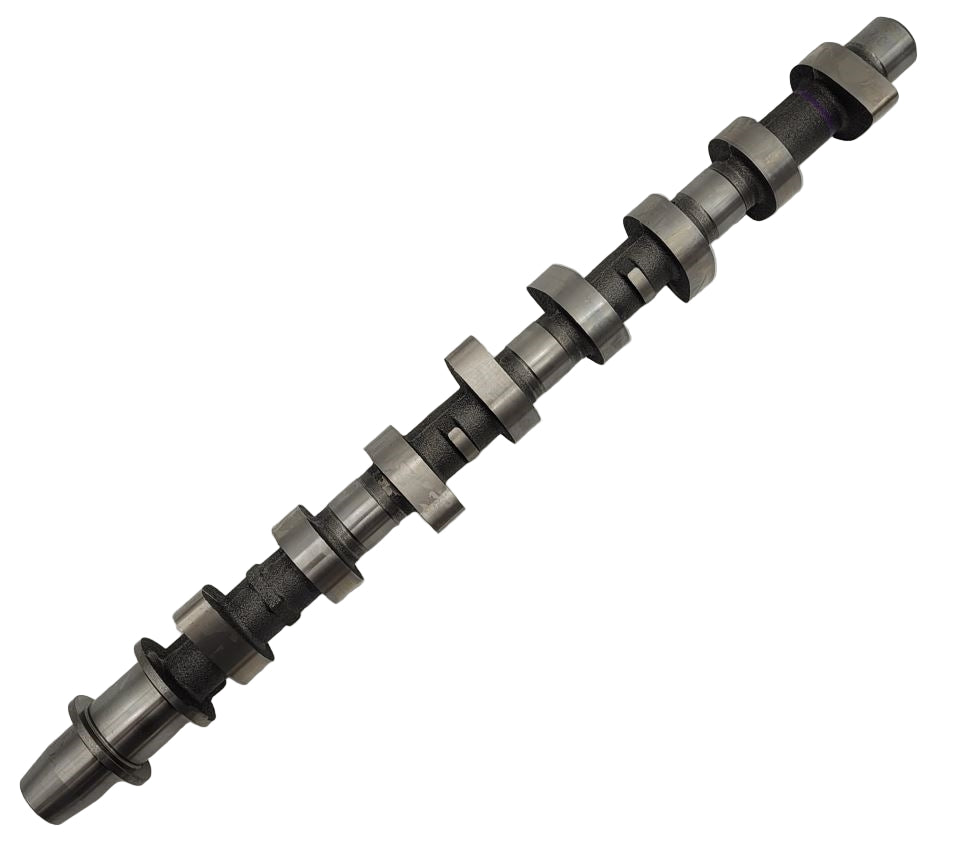

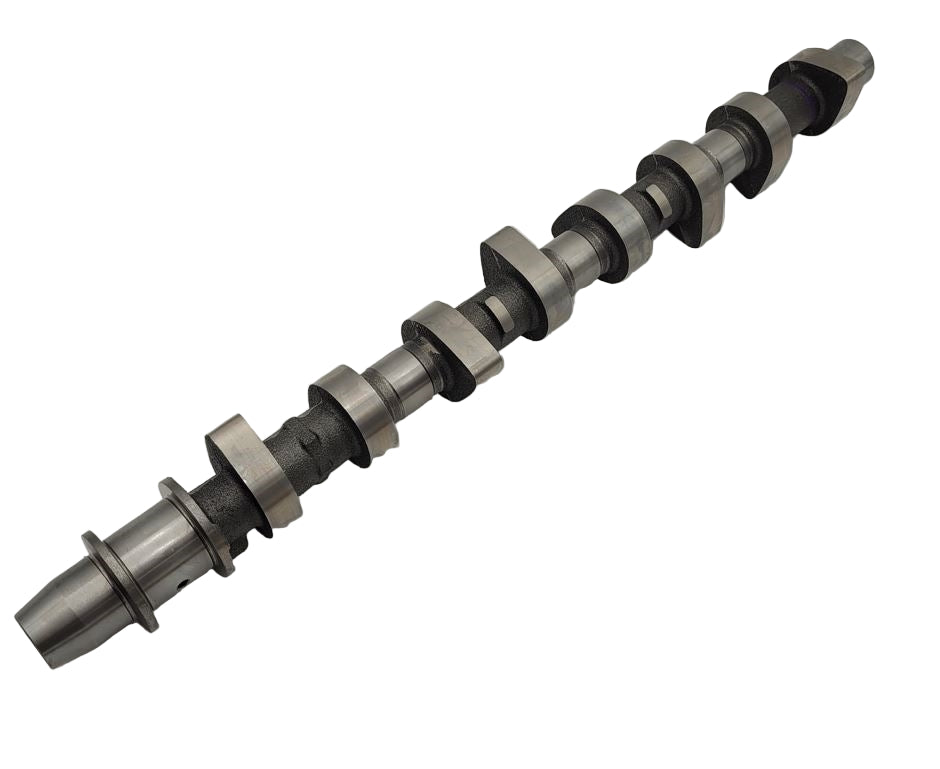

Genuine OEM Toyota Camshaft compatible with 1KZ and 1KZ-TE turbo diesel engines. This single overhead camshaft (SOHC) delivers precise valve timing control, ensuring optimal engine performance for Toyota's legendary 3.0L turbocharged diesel powerplant. This OEM part is a perfect replacement, offering Toyota-quality performance and long-lasting durability.

OEM Part Number(s):

• 13501-67010




Key Features & Benefits

• Perfect Fit: Explicitly engineered for Toyota 1KZ/1KZ-TE 3.0L turbo diesel engines
• Quality Assurance: High-grade steel construction with precision-machined cam lobes for maximum durability
• Performance: Maintains optimal valve timing for maximum power output and fuel efficiency in turbo applications
• Easy Installation: Direct OEM replacement with timing belt and gear drive system compatibility
• Value: Save up to 50% compared to dealership pricing while maintaining genuine Toyota quality



Technical Specifications

Part Type: Single Overhead Camshaft (SOHC)
Material: High-grade steel with hardened cam lobes
Engine Compatibility: 1KZ, 1KZ-T, 1KZ-TE turbo diesel engines
Displacement: 3.0L (2,982cc)
Valve Configuration: 2 valves per cylinder (8 total)
Drive System: Timing belt and gear-driven

Fitment

Year	Model	Engine
1993-2003	Land Cruiser Prado	1KZ-TE (3.0L Turbo Diesel)
1997-2005	Hilux/4Runner	1KZ-TE (3.0L Turbo Diesel)
1993-2005	HiAce	1KZ-TE (3.0L Turbo Diesel)
1993-2002	Hilux Surf	1KZ-TE (3.0L Turbo Diesel)
1995-2002	Land Cruiser	1KZ-TE (3.0L Turbo Diesel)

Important: Verify part compatibility using your vehicle's VIN or engine code before purchase. Compatible with both manual and automatic transmission variants.

Installation & Maintenance

Installation Difficulty: Advanced
Estimated Install Time: 10-15 hours
Tools Required: Engine hoist, timing belt tools, valve adjustment shims, torque wrench, specialized Toyota timing tools
Professional Installation: Highly recommended due to timing system complexity and turbo considerations

Maintenance Tips:

• Check valve clearances every 20,000 km using the proper shim adjustment procedure
• Replace the timing belt every 100,000 km to prevent catastrophic engine damage
• Use high-quality diesel engine oil (15W-40 or 10W-30) and change it every 5,000 km
• Monitor cooling system closely - overheating can cause head cracking and camshaft damage



Frequently Asked Questions

Q: How difficult is installation?
A: This is an advanced repair requiring complete timing system disassembly, cylinder head removal, and precise valve timing setup. Professional installation is strongly recommended due to the complexity of the 1KZ timing system.

Q: Is this compatible with both 1KZ-T and 1KZ-TE engines?
A: Yes, this camshaft fits both the mechanically injected 1KZ-T and electronically controlled 1KZ-TE variants of the 3.0L turbo diesel engine.

Q: What warranty is provided?
A: 12-month manufacturer warranty covering defects in materials and workmanship. Does not cover installation damage or everyday wear.

Q: Will this work with aftermarket turbo upgrades?
A: Yes, this OEM camshaft is suitable for stock and mild performance applications. For extensive turbo modifications, consult with a diesel performance specialist.

Related Toyota Parts You May Need

• Timing Belt Kit - Essential replacement during camshaft installation
• Valve Adjustment Shim Set - Required for proper valve clearance setup
• Cylinder Head Gasket Set - Commonly replaced during major engine service
• Water Pump Assembly - Often replaced with timing belt service



Common Symptoms of Camshaft Failure

• Excessive valve train noise or ticking sounds
• Loss of engine power and poor performance
• Irregular idle and rough engine operation
• Metal particles in engine oil
• Abnormal engine vibration at idle



Why Replace Your 1KZ Camshaft?

The camshaft is critical for proper valve timing in your 1KZ turbo diesel engine. A worn or damaged camshaft can lead to poor performance, increased fuel consumption, and potentially catastrophic engine damage if valve timing is compromised. The 1KZ engine's indirect injection system relies on precise valve timing for optimal combustion efficiency.

Don't risk engine damage with aftermarket substitutes. Choose genuine Toyota OEM quality for your valuable 1KZ engine investment. Replace your camshaft with confidence using authentic Toyota parts designed to deliver the reliability and performance your vehicle deserves.
