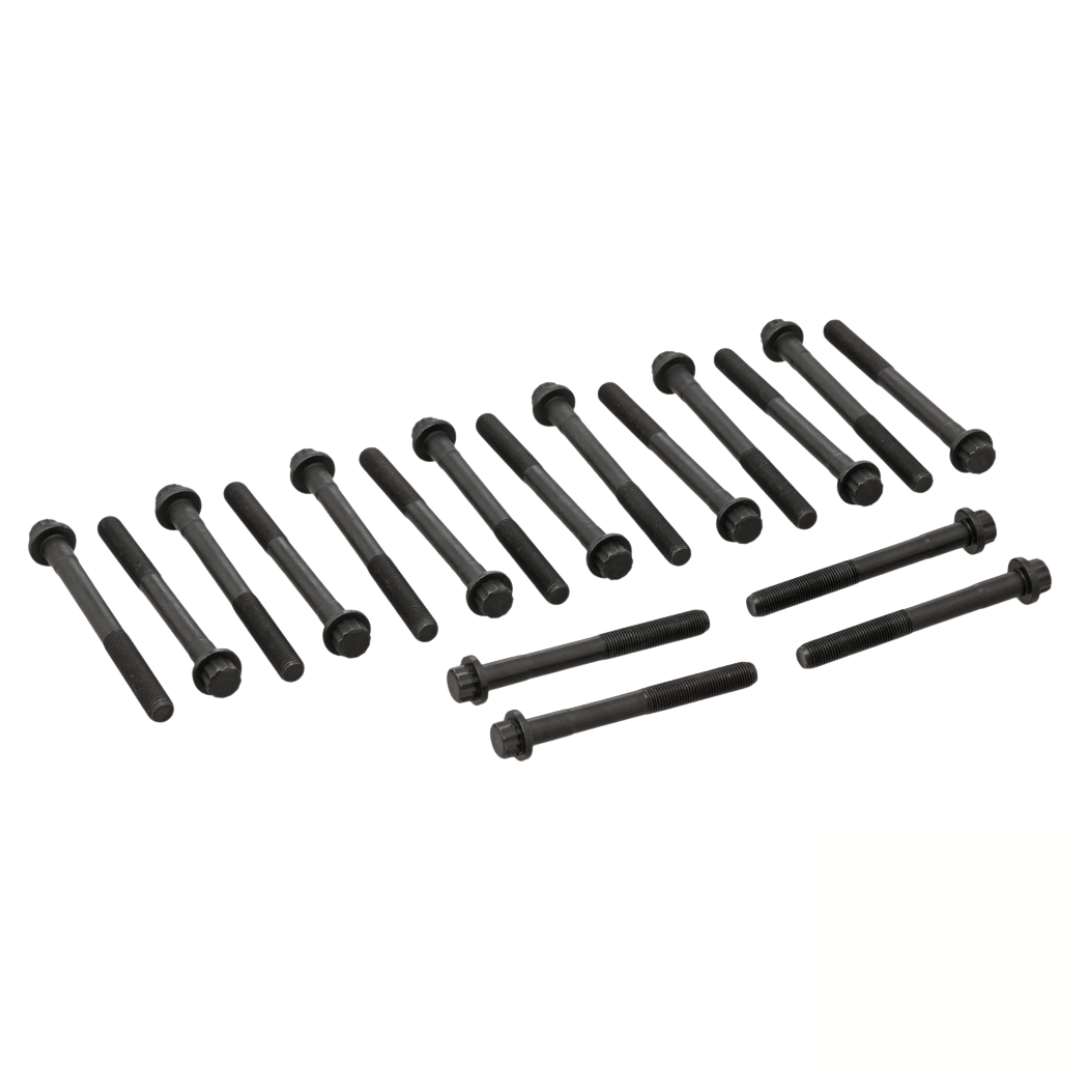

Toyota Diesel OEM 1984-2005 Head Bolts 2L 2L-T 2L-TE 3L 5L Complete Set

Product Overview

Genuine OEM Toyota Cylinder Head Bolt Set compatible with 1984-2005 Toyota Hilux, Hiace, Land Cruiser, and Dyna models equipped with 2L, 2LT, 2L-TE, 3L, 5L, and 5LE diesel engines. This essential fastener set provides the proper clamping force, ensuring reliable sealing of the cylinder head for Toyota's legendary L-series diesel platform. This complete OEM bolt set is critical for any cylinder head installation, providing Toyota-quality torque retention and long-lasting durability.

Key Features & Benefits

• Complete Set: Includes all 18 bolts required per engine (14 long + 4 short bolts)
• OEM Quality: Genuine Toyota stretch bolts engineered for precise torque specification and proper clamping force
• Universal L-Series Compatibility: Works with all 2L, 2LT, 2L-TE, 3L, 5L, and 5LE diesel engines
• Critical Performance: Maintains proper cylinder head sealing and compression for optimal diesel operation
• One-Time Use Design: Stretch bolt technology ensures maximum reliability when following proper installation procedures



Technical Specifications

Part Type: Cylinder Head Bolt Set (Complete 18-Piece Kit)
Material: High-tensile alloy steel with anti-corrosion coating
Engine Compatibility: 2L, 2LT, 2L-TE, 3L, 5L, 5LE (SOHC 8-valve diesel

Fitment

Year	Model	Engine
1984-2004	Toyota Hilux	2L, 2LT, 2L-TE, 3L 2.4L-2.8L diesel
1987-2004	Toyota Hiace (H100, H50 series)	2L, 2LT, 3L, 5L, 5LE 2.4L-3.0L diesel
1990-2000	Toyota Land Cruiser (70, 90 series)	2L-TE, 3L 2.4L-2.8L turbo diesel
1995-2005	Toyota Dyna/ToyoAce	3L, 5L, 5LE 2.8L-3.0L diesel
1989-2004	Toyota 4Runner (select markets)	2L-TE, 3L 2.4L-2.8L turbo diesel
1990-2003	Toyota Kijang/Qualis	5L, 5LE 3.0L diesel

Important: This head bolt set is compatible with all L-series SOHC 8-valve diesel engines. Always verify engine code before purchase. These are torque-to-yield stretch bolts and must not be reused - new bolts are required for every cylinder head installation.

Installation & Maintenance

Installation Difficulty: Advanced/Professional
Tools Required: Torque wrench (accurate to ±2%), angle gauge, proper torque sequence diagram, socket set
Professional Installation: Strongly recommended - improper torque can cause head gasket failure

Installation Tips:

• Follow Toyota's three-stage torque procedure: initial torque, then 90-degree rotation in proper sequence
• NEVER reuse head bolts - stretch bolts are designed for one-time use only
• Ensure the cylinder head surface is properly cleaned and flat before installation
• Apply clean engine oil to bolt threads and under bolt heads before installation



Frequently Asked Questions

Q: What's included in this head bolt set?
A: This complete set includes 18 OEM Toyota cylinder head bolts: 14 longer bolts and 4 shorter bolts. This is the exact quantity required for one complete L-series diesel engine.

Q: Can I reuse my old head bolts?
A: No, absolutely not. These are torque-to-yield stretch bolts that permanently deform during the torque procedure. Reusing stretch bolts will result in improper clamping force and potential head gasket failure. Always use new OEM bolts for cylinder head installation.

Q: Will these work with both turbo and naturally aspirated L-series engines?
A: Yes, this head bolt set is compatible with all L-series diesel engines, including naturally aspirated (2L, 3L, 5L) and turbocharged variants (2LT, 2L-TE, 5LE).

Related Toyota Parts You May Need

• Head Gasket Set - Essential for proper cylinder head sealing and compression
• Valve Cover Gasket - Should be replaced during cylinder head service
• Timing Belt Kit - Recommended replacement during major engine work
• Water Pump - Often replaced preventatively during cylinder head removal



Common Symptoms Requiring Head Bolt Replacement

• Coolant mixing with engine oil (milky oil appearance)
• White smoke from the exhaust indicates coolant combustion
• External coolant or oil leaks at the cylinder head gasket interface
• Loss of compression in one or multiple cylinders
• Engine overheating due to head gasket failure



Why Choose Genuine OEM Toyota Head Bolts

Critical Component for Diesel Reliability: Toyota's L-series diesel engines have earned a legendary reputation for durability and longevity in the harshest conditions worldwide. From the Australian Outback to African deserts, these engines power countless Hilux, Hiace, and Land Cruiser vehicles through demanding commercial and off-road applications.

The cylinder head bolt set is one of the most critical fastener assemblies in any engine. These bolts must maintain precise clamping force under extreme thermal cycling, vibration, and combustion pressures inherent to diesel operation. Genuine Toyota head bolts are manufactured to exacting specifications using high-tensile alloy steel with specific metallurgy designed for controlled stretch characteristics.

Aftermarket head bolts may appear similar, but they often lack the precise material properties and quality control that ensure proper torque retention. The consequences of inferior head bolts include head gasket failure, coolant contamination, compression loss, and potential catastrophic engine damage. When Toyota engineers specify torque-to-yield stretch bolts, they ensure the exact clamping force needed for reliable, long-term sealing.

The L-series diesel platform has been in continuous production since the 1970s, with some variants still manufactured today in select markets. This remarkable longevity testifies to the engineering excellence and reliability of these engines when maintained with genuine OEM components.

Don't compromise on this critical fastener assembly. Invest in genuine Toyota OEM head bolts and follow proper torque procedures for maximum reliability from your legendary L-series diesel engine. Whether rebuilding a high-mileage workhorse or refreshing a recently acquired vehicle, genuine Toyota head bolts provide the foundation for dependable diesel performance.
