Toyota Diesel ARP Head Stud Set – 2L 2L-T 2L-TE 3L 5L B 2B 3B 1KZTE Engines

Product Overview

Professional-grade ARP head stud set engineered for Toyota diesel engines, including the 2L, 2L-T, 2L-TE, 3L, 5L, and 1KZ-TE. This head stud kit replaces the factory torque-to-yield (TTY) head bolts with reusable, high-tensile ARP2000 alloy studs that deliver significantly greater clamping force, addressing one of the most critical failure points in Toyota's L-series and KZ-series diesel platforms. If you're rebuilding a cylinder head, upgrading from TTY bolts, or running elevated boost on a turbo diesel, this is the fastener upgrade that protects your investment.

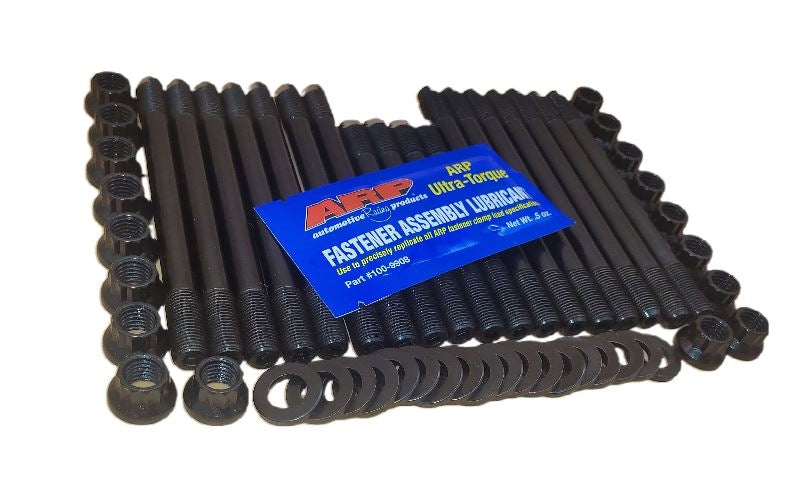

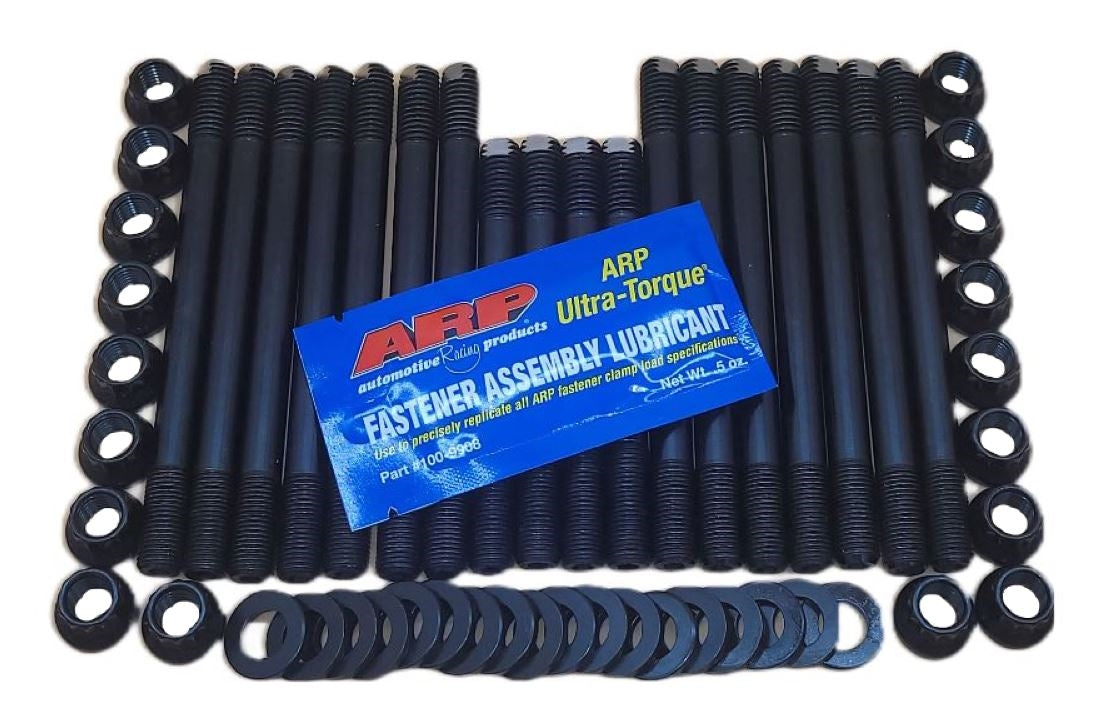

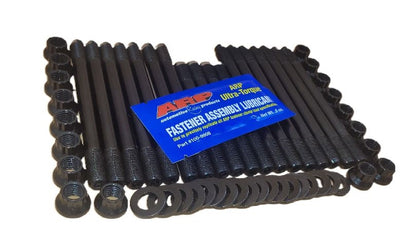

Each kit includes complete hardware: ARP2000 alloy studs, parallel-ground hardened washers, 12-point nuts, and ARP Ultra-Torque assembly lubricant. Compatible with the 2L naturally aspirated, 2L-T and 2L-TE turbocharged variants, the 3.0L 3L, and the 3.0L 1KZ-TE turbo diesel.

Key Features & Benefits

• Eliminates Head Gasket Re-Failure: ARP2000 alloy rated at 220,000 PSI tensile strength delivers clamping force the factory TTY bolts physically cannot match, the root upgrade for preventing repeat head gasket failures on the 1KZ-TE platform
• Reusable Across Multiple Rebuilds: Unlike OEM torque-to-yield bolts that must be discarded after a single use, ARP studs are reusable, provided they have not been overstretched, delivering long-term value on rebuilt or high-mileage engines
• More Accurate Torque Loading: Studs thread into the block and remain stationary; the nut rotates on the stud without imparting torsional stress into the fastener, producing a more consistent and accurate torque reading across all positions
• Complete Kit Hardware: Includes ARP2000 studs, parallel-ground hardened washers, 12-point nuts, and ARP Ultra-Torque assembly lubricant
• Boost and High-Compression Compatible: ARP2000 alloy handles elevated combustion pressures from upgraded injectors, larger turbos, or high-compression rebuild specs that would cause factory bolts to stretch and lose clamp load



Technical Specifications

Part Type: Cylinder Head Stud Kit
Material: ARP2000 proprietary alloy steel
Tensile Strength: 220,000 PSI
Finish: Black oxide
Nut Style: 12-point (requires 12-point socket for installation)
Washers: Parallel-ground hardened steel, included
Lubricant: ARP Ultra-Torque fastener assembly lubricant, included
Stud Quantity: 18 studs (complete set for one cylinder head)
Engine Compatibility: Toyota 2L, 2L-T, 2L-TE, 3L, 5L, & 1KZ-TE diesel
Thread Type: Coarse lower thread (into block), fine upper thread (nut side)
Application Type: Direct replacement for OEM TTY head bolt set (Toyota 90910-02080 / 90910-02081 / 90910-02112)

Fitment

Year	Model	Engine
1980–1997	Hilux / Pickup (LN-series)	2L, 2L-T diesel
1988–1997	Hilux / Pickup (LN-series)	2L-TE turbo diesel
1988–1997	Hiace (LH-series)	2L, 2L-T, 2L-TE diesel
1988–1999	4Runner / Hilux Surf (LN-series)	2L-T, 2L-TE diesel
1984–1999	Land Cruiser 70 Series (LJ70/73/77)	2L, 2L-T diesel
1988–1999	Land Cruiser Prado (LJ70/71/78/90)	2L, 2L-T, 3L diesel
1988–2005	Hilux / Pickup (LN-series, later)	3L diesel
1988–2005	Hiace (LH100/LH200-series)	3L diesel
1990–2005	4Runner / Hilux Surf (LN130/LN185)	3L diesel
1988–2005	Dyna / ToyoAce	3L diesel
1993–2002	Land Cruiser 90 Series (KZJ90/95)	1KZ-TE 3.0L turbo diesel
1996–2002	Land Cruiser Prado 90 Series (KZJ90/95)	1KZ-TE 3.0L turbo diesel
1993–2002	4Runner / Hilux Surf (KZN130/KZN185)	1KZ-TE 3.0L turbo diesel
1993–2005	Hilux (KZN-series)	1KZ-TE 3.0L turbo diesel (various markets)
1993–2004	Hiace (KZH100/KZH200-series)	1KZ-TE 3.0L turbo diesel
1995–2002	Grand Hiace / Granvia	1KZ-TE 3.0L turbo diesel

Important: Verify your engine code on the engine identification plate before ordering. The 2L, 2L-T, 2L-TE, and 3L engines share the same head bolt pattern and thread spec. The 1KZ-TE uses 18 head bolts with a thread pattern identical to that of the L-series. If you have a later-model Land Cruiser Prado 120 Series (2003+) or Hilux with a 1KD-FTV or 1GD-FTV engine, this kit does not apply — those engines use a different fastener configuration.

Installation & Maintenance

Installation Difficulty: Expert / Professional
Tools Required: Torque wrench, 12-point deep socket (correct size for stud nuts), stud installation driver or stud setter tool, thread chaser set, ARP Ultra-Torque lube (included), surface plate or straight-edge for head deck check
Professional Installation: Strongly recommended — cylinder head work on diesel engines requires precise torque sequencing and machining inspection

Critical Installation Notes:

Chase all block threads before installation: Clean the block threads with a thread chaser (not a tap — a tap can remove material and weaken threads). Even on fresh blocks, debris in thread bores will give false torque readings.

Always use ARP Ultra-Torque lubricant: Motor oil, anti-seize, or other lubricants will produce incorrect clamping force. ARP Ultra-Torque is calibrated for its torque specifications; substituting other lubes voids the torque accuracy of the procedure.

• Step 1 — Install studs hand-tight only: Thread each stud into the block using finger pressure or a stud setter tool. Do not use an impact wrench or exceed hand-tight torque into the block threads. The coarse cast iron block threads provide ample engagement depth at this setting.
• Step 2 — Back the stud out until the tip is flush with the top face of the installation nut: Back each stud out slightly so the stud tip sits flush with the top face of the installation nut when the nut is placed on the stud before head installation. This ensures the nut has full thread engagement above the head once the cylinder head and washer are fitted. Why this matters: When the stud is positioned this way, torquing the nut applies only vertical (tensile) load to the stud, not torsional stress. This produces a more accurate, consistent torque reading across all 18 positions. You retain excellent thread engagement in the block; the cast iron threads are more than sufficient at that depth.
• Step 3 — Fit the head and washer, then torque the nuts: With the head in place and washer seated, apply ARP Ultra-Torque lubricant to the stud threads, washer face, and nut bearing surface. Torque the nuts in the factory Toyota sequence in multiple passes. Apply torque in increments of 30, 60, 90 ft-lbs.  Avoid over-torquing beyond 100 ft-lbs.  Do not use Toyota's OEM bolt torque specification, as the ARP stud torque requirement will differ.



Maintenance Tips:

• ARP studs are reusable, provided they have not been overstretched. Inspect for any visible elongation or thread damage before reuse in a subsequent rebuild
• Replace the head gasket any time the head is removed.  Head gaskets are single-use components regardless of apparent condition
• Replace the timing belt and water pump during cylinder head service — these components are accessible during the teardown, and their failure interval often aligns with head work
• Perform a coolant pressure test and oil analysis at 500 km / 300 miles post-rebuild to confirm head gasket integrity before returning to full-load operation



Frequently Asked Questions

Q: Why should I use ARP head studs instead of replacing them with new OEM head bolts?
A: OEM Toyota head bolts on these engines are torque-to-yield (TTY) fasteners — they stretch plastically during torquing and must be discarded after each use. More importantly, TTY bolts provide lower clamping force than ARP2000 alloy studs rated at 220,000 PSI tensile strength. On the 1KZ-TE specifically, insufficient head clamping force is the documented root cause of head gasket failure, particularly at high mileage or under boosted operation. ARP studs deliver superior, more consistent clamping force and are reusable across multiple rebuilds.

Q: How do I install ARP head studs — do I torque them tight into the block?
A: No — ARP studs install hand-tight into the block only. The correct procedure is to thread the stud in hand-tight, then back it out slightly until the stud tip is flush with the top face of the installation nut. After fitting the head and washer, you will have full thread engagement above the head. This positioning ensures the stud receives only tensile (vertical) load when the nut is torqued, not torsional stress, which gives you a more accurate and consistent torque reading across all 18 positions.

Q: What torque value should I use for the ARP stud nuts?
A: Apply torque in increments of 30, 60, 90 ft-lbs.  Avoid over-torquing beyond 100 ft-lbs.  Do not use Toyota's OEM bolt torque specification, as the ARP stud torque requirement will differ.

Q: Are these head studs compatible with both the 1KZ-T (mechanical injection) and 1KZ-TE (electronic injection)?
A: Yes. The 1KZ-T and 1KZ-TE share the same cylinder block, head bolt pattern, and thread specification. This stud kit fits both variants. The same applies across the L-series engines: the 2L, 2L-T, 2L-TE, 3L, and 5L all share compatible head bolt geometry.

Q: Are ARP2000 studs reusable?
A: Yes, ARP2000 studs are reusable across multiple engine builds, provided they have not been overstretched. Visually inspect each stud for elongation or thread damage before reinstallation. This reusability is one of the core advantages over OEM TTY bolts, which are single-use only and must be replaced with every head removal, regardless of mileage or condition.

Related Toyota Parts You May Need

• Cylinder Heads
• Gasket Sets

• 100K Service Packages



Common Symptoms That Lead to This Repair

• White smoke from the exhaust on startup or under load — indicates coolant entering the combustion chamber through a failed head gasket
• Milky or foamy oil on the dipstick or valve cover underside — coolant mixing with engine oil through a compromised head gasket
• Rapid coolant loss with no visible external leaks — coolant is being consumed in the combustion chamber
• Coolant pressure buildup or overflow tank bubbling at operating temperature — combustion gases pressurizing the cooling system through a failed head gasket
• Overheating with no obvious coolant leak — early-stage head gasket failure before full coolant loss becomes apparent
• Recurrent head gasket failure after a previous repair — the #1 cause is reinstalling TTY head bolts a second time or insufficient clamping force; ARP head studs directly address this



Why Upgrade to ARP Head Studs on Toyota Diesel Engines

The root cause of most 1KZ-TE head gasket failures is not the gasket; it's insufficient clamping force. Toyota's factory TTY head bolts achieve a one-time clamp load adequate for the engine's original design spec. At high mileage, with a worn cooling system, elevated boost, or after the engine has experienced even a single overheating event, that clamping force is no longer sufficient to maintain a perfect combustion seal. The head gasket fails — and if it's repaired with new TTY bolts torqued to OEM spec, the conditions for failure are simply reset.

ARP2000 alloy is heat-treated to 220,000 PSI tensile strength and centerless ground for near-perfect concentricity. The result is a fastener that maintains higher, more consistent clamping force across all 18 bolt positions throughout the engine's thermal cycles. For turbo diesel engines running elevated combustion pressures — or any 2L, 3L, or 1KZ-TE with more than 150,000 km on the clock — ARP head studs are not an upgrade. They are insurance.

The 2L-T, 2L-TE, 3L, and 1KZ-TE engines are among the most respected diesel platforms ever installed in a light truck. With proper fastener hardware and correct installation procedure, they are capable of running another 300,000+ km after a rebuild. Cutting corners on head fasteners is the one place where investment gets erased in a single overheating event. Choose ARP.
